Product Details:
Payment & Shipping Terms:
|

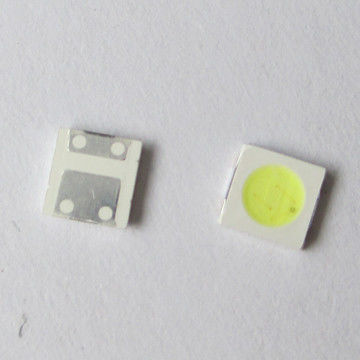

Type: | LED Emitting Diodes | Package: | 3535 White SMD LED |
---|---|---|---|
Light Color: | White | Lens Color: | White Diffused |
Led Chips: | Epistar Led Diodes | Forward Voltage: | 2.8-3.8V |
Luminous Flux: | 100-130lm | Viewing Angle: | 120 Degree |
Kelvin: | 25000K | ||
High Light: | warm white smd led,led smd chip |
Part No. | Chip Material | Lens Color | Source Color |
DL-TOP3535W-TV | InGaN | White Diffused | White |
Absolute Maximum Ratings at Ta=25℃
Parameters | Symbol | Max. | Unit |
Power Dissipation | PD | 1000 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 500 | mA |
Forward Current | IF | 350 | mA |
Reverse Voltage | VR | 5 | V |
Electrostatic Discharge (HBM) | ESD | 2000 | V |
Operating Temperature Range | Topr | -10℃ to +70℃ | |
Storage Temperature Range | Tstg | -20℃ to +80℃ | |
Soldering Temperature | Tsld | 260℃ for 5 Seconds |
Electrical Optical Characteristics at Ta=25℃
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Flux | Φ | 100 | 120 | 130 | lm | If=350mA (Note 1) |
Viewing Angle | 2θ(1/2) | --- | 120 | --- | Deg | (Note 2) |
Color Temperature | TC | 25000 | --- | --- | K | If=350/700mA |
Forward Voltage | VF | 2.80 | 3.40 | 3.80 | V | If=350/700mA |
Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
Company introduction:
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, 3535 SMD LED, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
