High Brightness LED Emitting Diodes , High Power 1W White LED 2500-7000K

High Brightness LED Emitting Diodes , High Power 1W White LED 2500-7000K
High Brightness LED Emitting Diodes , High Power 1W White LED 2500-7000K

Large Image :  High Brightness LED Emitting Diodes , High Power 1W White LED 2500-7000K

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-HP10WXX-1W
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: US$0.07-0.21per unit (Pieces) can be discussed
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per Day
Detailed Product Description
Product Name: 1W High Power White LED Package: 1W High Power LED With Lens
Emitted Color: White Color Temperature: 2500-7000K
Lens Type: Water Clear Forward Voltage @20ma: 3.0-3.6V
Luminous Intensity: 110-140LM Viewing Angle: 130 Deg
High Light:

flat led diode

,

light emitting diode

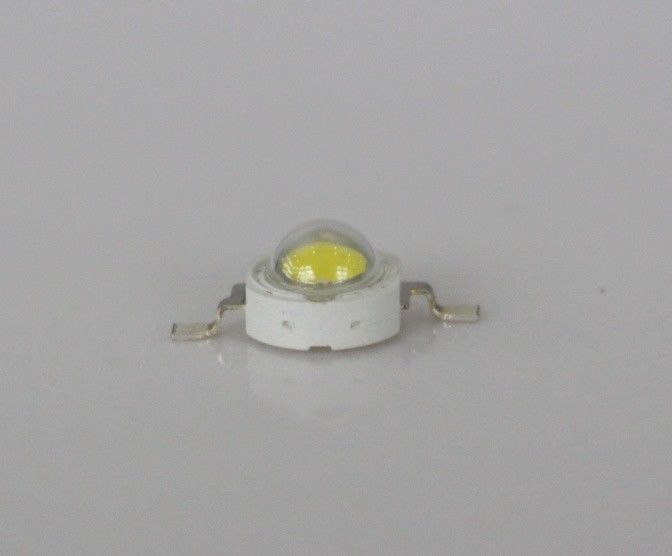

       This is our 1W white high power LED, its lens color is water clear and emitting color is white.



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux Фv 120 130 140 lm IF=350mA
Viewing Angle 1/2 --- 130 --- Deg IF=350mA
Color Temperature Tc 2800 --- 6500 K IF=350mA
Chromaticity Coordinates (X,Y) --- (0.28,0.29) ---
Forward Voltage VF 2.80 3.40 4.00 V IF=350mA
Reverse Current IR --- --- 10 µA VR=5V



Features:

  1. High power LED type.
  2. Small package with high efficiency.
  3. High flux output and high luminance.
  4. Instant light (less than 100ns).
  5. Very long operating lifespan (up to100K hours).
  6. Low voltage DC operated.
  7. Designed for high current operation.
  8. Low thermal resistance.
  9. Compatible with automatic placement equipment.
  10. Wide viewing angle: 130°.
  11. High reliable.
  12. The product itself will remain within RoHS compliant version.

Descriptions:

  1. The HP10 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT LED ideal for light pipe application.
  2. This package LEDs are designed for high current operation and high flux output application. But the package’s design features better thermal management characteristics than other LED solutions.

Applications:

  1. Decorative lighting.
  2. Interior and exterior automotive lighting.
  3. Signal and symbol luminaire for orientation.
  4. Marker lights (e.g. steps, exit ways and more).
  5. Decorative and entertainment lighting.
  6. Mini-accent/uplighters/downlighters/orientation.
  7. Fiber optic alternative/decorative/entertainment lighting.
  8. Bollards/security/garden lighting.
  9. Cove/under shelf/task lighting.
  10. Traffic signaling/beacons/rail crossing and wayside lighting.
  11. Indoor/outdoor commercial and residential architectural lighting.
  12. Edge-lit signs (exit, point of sale).
  13. Backlighting (illuminated advertising, general lighting)/LCD Backlights/light guides.

Precautions for use:
1. Over-current-proof
Though the high power LED has conducted ESD protection mechanism, customer must not use the device in reverse and should apply resistors for extra protection. Otherwise slight voltage shift may cause enormous current change and burn out failure would happen.
2. Soldering Condition
① Soldering should not be done more than two times.
② While soldering, do not put stress on the LEDs during heating.
③ After soldering, do not warp the circuit board.
Handling Indications
① During processing, mechanical stress on the surface should be minimized as much as possible.
