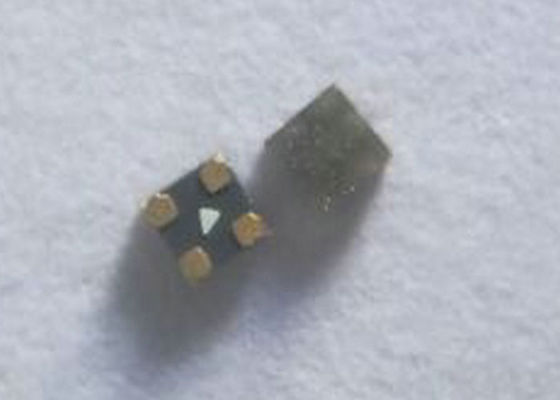

0.62Mm Height 1010 RGB LED Chip tri color smd led full color 120 Deg Viewing Angle

0.62Mm Height 1010 RGB LED Chip tri color smd led full color 120 Deg Viewing Angle
0.62Mm Height 1010 RGB LED Chip tri color smd led full color 120 Deg Viewing Angle

Large Image :  0.62Mm Height 1010 RGB LED Chip tri color smd led full color 120 Deg Viewing Angle

Product Details:
Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP1010RGBC-A1
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.022-0.023. per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 1010 RGB SMD LEDs Package: SMD LED
Emitted Color: RED GREEN BLUE Product Number: DL-TOP1010RGBC-A1
Color Temperature: R620-630nm G515-530nm B 455-470 Luminous Intensity: 900-1200mcd(R) 2000-2300(G) 1000-1300Mcd(B)
Forward Voltage @20ma: 2.0-2.2v 2.8-3.0v 2.8-3.0v Viewing Angle: 120 Deg
Height: 0.62mm
High Light:

smd rgb led

,

smd 3528 led

DL-TOP1010RGBC-A1.pdf

0.62mm Height 1010 RGB LED Chip tri color smd led full color led



Features:

  • P-LCC-4 package.
  • side view SMD.
  • Black package.
  • Wide viewing angle.
  • Colorless clear window.
  • Inter reflector.
  • Ideal for backlight and light pipe application.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Computable with automatic placement equipment.
  • Available on tape and reel (12mm Tape).
  • The product itself will remain within RoHS compliant Version.

Descriptions:

  • The R1010 series is available in soft orange, green, blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT Side View LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
  • G•SiC Technology.

Applications:

  • Optical indicators.
  • Coupling into light guides.
  • Back lights (LCD, switches, key, displays, illuminated advertising, general lighting).
  • Interior automotive lighting (e.g.dashboard backlighting).
  • Automobile’s Applications.
  • Marker lights (e.g.steps,exit ways, etc)
  • Signal and symbol luminaire.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.



  • Part No. Chip Material Lens Color Source Color
    DL-TOP1010RGBC-A1 R AlGaInP Water Clear Hyper Red
    G InGaN Pure Green
    B InGaN Blue

















1010 side view RGB LED

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Emitting Color Max. Unit
Power Dissipation PD Hyper Red 60 mW
Pure Green 95
Blue 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Hyper Red 100 mA
Pure Green 100
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 1000
Blue 1000
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




0404 RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 120 140 --- mcd

IF=20mA

(Note 1)
Pure Green 650 700 ---
Blue 110 130 ---
Viewing Angle 2θ1/2 Hyper Red --- 120 --- Deg

IF=20mA

(Note 2)
Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
Pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
Pure Green 2.80 3.40 3.80
Blue 2.80 3.40 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50






Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



1010 RGB SMD LEDs Package Dimension:



0.62Mm Height 1010 RGB LED Chip tri color smd led full color 120 Deg Viewing Angle 0





​
