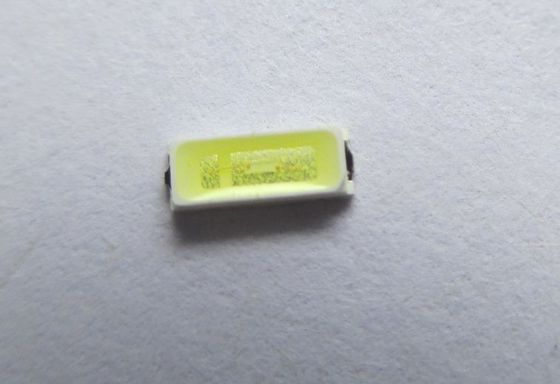

0.55Mm Height Top View Warm White smd chip led 2016 2600-7000K Color Temperature

0.55Mm Height Top View Warm White smd chip led 2016 2600-7000K Color Temperature
0.55Mm Height Top View Warm White smd chip led 2016 2600-7000K Color Temperature

Large Image :  0.55Mm Height Top View Warm White smd chip led 2016 2600-7000K Color Temperature

Product Details:
Place of Origin: China
Brand Name: Doule Light
Certification: RoHS/ REACH
Model Number: DL-TOP2016W30-1W120
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs/Real
Price: US$0.06-0.2 Per piece or Price Negotiable
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Detailed Product Description
Product Name: 0.55mm Height Top View Warm White Chip LED 2016 Package: Top View Chip LED 2016
Emitted Color: Warm White Product Number: DL-TOP2016W30-1W120
Color Temperature: 2600-7000K Forward Voltage: 3.0-3.8V
Forward Current: 60/500/1000mA Luminous Flux: 23lm@60mA/ 110lm@500mA/ 270lm@1000mA
Viewing Angle: 120 Deg
High Light:

brightest smd led chip

,

warm white smd led

DL-TOP2016W30-1W120.pdf

       This is our 0.55mm Height Top View Warm White Chip LED  2016 ,its color is available in soft red, orange, yellow, green, blue and white and according to your need.





Part No. Chip Material Lens Color Source Color
DL-TOP2016W30-2W120 InGaN Yellow Diffused Warm White



Notes:

  • All dimensions are in millimeters.
  • Tolerance is ± 0.10 mm (.004″) unless otherwise specified.

Specifications are subject to change without notice.





Features:

  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Typical color temperature: 2700 K.
  • Wide viewing angle.
  • Suitable for automatic placement equipment.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The TOP2016 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



Applications:

  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.



Table of Forward Current Index



Symbol Description
A IF:60ma
B IF:500ma
C IF:1000ma





Absolute Maximum Ratings at Ta=25℃



Parameters Symbol Max. Unit
Power Dissipation PD 3500 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 1200 mA
Continuous Forward Current IF 60/500/1000 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux * Фv 19 23 --- lm IF=60mA
90 110 --- IF=500mA
250 270 --- IF=1000mA

Viewing Angle *



2θ1/2 --- 120 --- Deg

IF=60mA (Note 2)



Chromaticity Coordinates x --- 0.32 ---   IF=60mA (Note 3)
y --- 0.33 ---
Color Temperature CCK 2500 --- 3000 K IF=60/500/1000mA
Color Rendering Index RA 70 75 ----   IF=60/500/1000mA
Forward Voltage VF 3.00 3.30 3.80 V IF=60/500/1000mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

Chromaticity Coordinates Specifications for Bin Rank

(IF=20mA, Ta=25℃)

BIN Chromaticity Coordinates
12-j x 0.450 0.440 0.440 0.450
y 0.410 0.400 0.410 0.420
12-K x 0.450 0.440 0.440 0.450
y 0.420 0.410 0.420 0.430
12-I x 0.450 0.440 0.440 0.450
y 0.430 0.420 0.430 0.440
12-30 x 0.460 0.450 0.450 0.460
y 0.420 0.410 0.420 0.430
12-31 x 0.460 0.450 0.450 0.460
y 0.430 0.420 0.430 0.440
12-32 x 0.460 0.450 0.450 0.460
y 0.440 0.430 0.440 0.450
13-I x 0.470 0.460 0.460 0.470
y 0.430 0.420 0.430 0.440
13-m x 0.470 0.460 0.460 0.470
y 0.440 0.430 0.440 0.450
13-n x 0.470 0.460 0.460 0.470
y 0.450 0.440 0.450 0.460
13-32 x 0.480 0.470 0.470 0.480
y 0.440 0.430 0.440 0.450
13-33 x 0.480 0.470 0.470 0.480
y 0.450 0.440 0.450 0.460
13-34 x 0.480 0.470 0.470 0.480
y 0.460 0.450 0.460 0.470



Notes:

  • Color coordinates measurement allowance is ± 0.01.
  • One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by Duoble Lihght



Reliability Test Items And Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
1 Resistance to Soldering Heat 6 Min

Tsld=260±5℃,

Min. 5sec

25pcs 0/1
2 Thermal Shock 300 Cycles

H: +100℃ 5min ∫ 10 sec

L: -10℃ 5min

25pcs 0/1
3 Temperature Cycle 300 Cycles

H: +100℃ 15min ∫ 5min

L: -40℃ 15min

25pcs 0/1
4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



2) Criteria for Judging the Damage:

Item Symbol Test Conditions Criteria for Judgment
Min Max
Forward Voltage VF IF=20mA --- F.V.*)×1.1
Reverse Current IR VR=5V --- F.V.*)×2.0
Luminous Intensity IV IF=20mA F.V.*)×0.7 ---



*) F.V.: First Value.



Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.



3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.





6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
