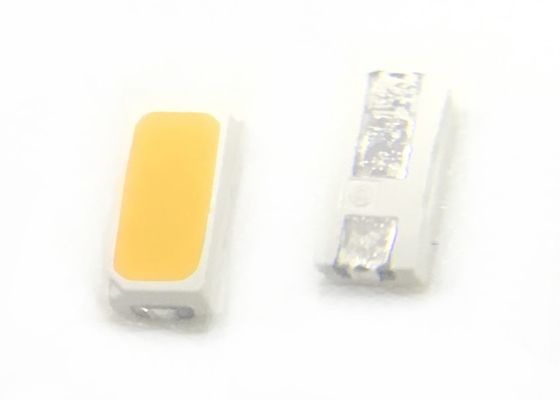

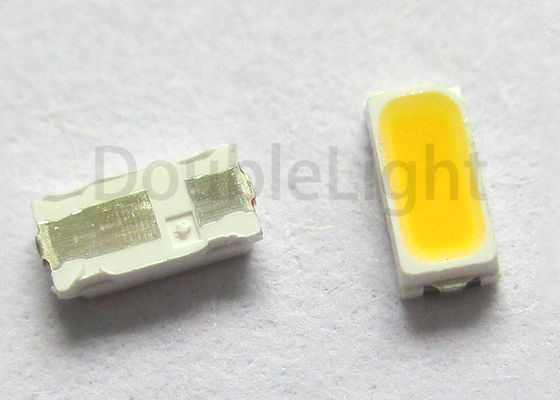

1W，0.80mm Height Top View, White SMD LED , smd led chip 3014 ,5300-6500K,White particle led light

Large Image : 1W，0.80mm Height Top View, White SMD LED , smd led chip 3014 ,5300-6500K,White particle led light

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-TOP3014W57-1W120

Payment & Shipping Terms:

Minimum Order Quantity:	4,000pcs
Price:	US$ 0.01-0.03per unit (Pieces) can be discussed
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	5,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	Top View 3014 White Chip LED	Package:	Top View 3014 Chip LED
Emitted Color:	White	Peak Emission Wavelength:	5300-6500K
Lens Type:	Yellow Diffused	Forward Voltage @20ma:	3.0-3.8v
Luminous Intensity:	Type 2800mcd	Datasheet:	Update
Highlight:	brightest smd led chip , warm white smd led

Datasheet:DL-TOP3014W57-1W120.pdf Light source:White

This is 0.80mm height top view white chip LED 3014, its lens color is yellow diffused and the emitting color of this size is changeable.

Part No.	Chip Material	Lens Color	Source Color
DL-TOP3014W57-1W120	InGaN	Yellow Diffused	White

Notes:

1. All dimensions are in millimeters.

2. Tolerance is ± 0.10 mm (.004″) unless otherwise specified.

3. Specifications are subject to change without notice.

Features:

P-LCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
Available on tape and reel (8mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The TOP 3014 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	95	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current	IF	35	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	2350	2850	---	mcd	IF=30mA (Note 1)
Luminous Flux	Φ	11	---	13	lm	IF=30mA
Viewing Angle *	2θ1/2	---	120	---	Deg	IF=30mA (Note 2)
Chromaticity Coordinates	x	---	0.32	---		IF=30mA (Note 3)
Chromaticity Coordinates	y	---	0.33	---		IF=30mA (Note 3)
Color Temperature	TC	5300	---	6000	K	IF=30mA
Forward Voltage	VF	3.00	3.30	3.80	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
