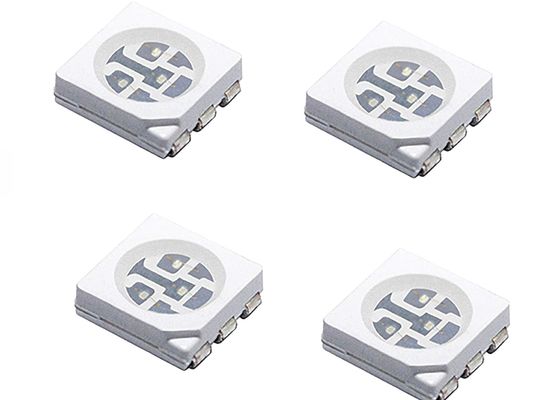

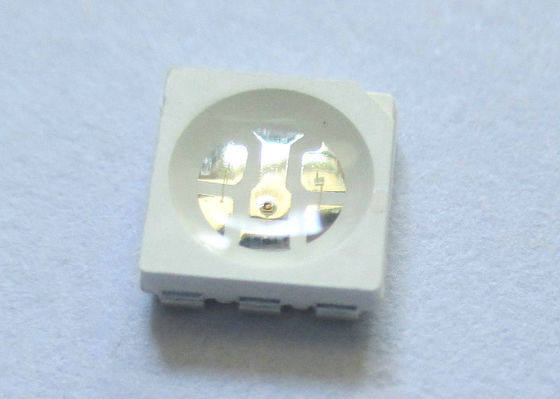

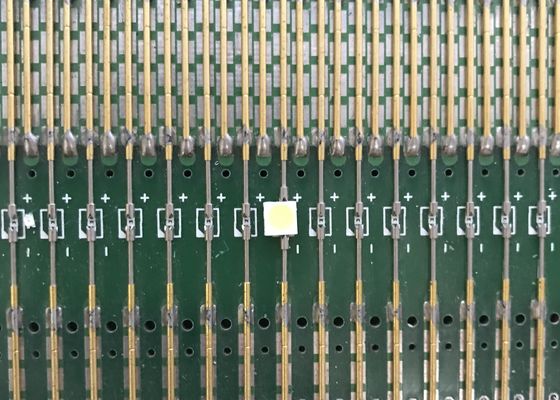

5050 1.50mm Height Top View Full Color Chip LEDs

5050 1.50mm Height Top View Full Color Chip LEDs
5050 1.50mm Height Top View Full Color Chip LEDs 5050 1.50mm Height Top View Full Color Chip LEDs 5050 1.50mm Height Top View Full Color Chip LEDs

Large Image :  5050 1.50mm Height Top View Full Color Chip LEDs

Product Details:
Place of Origin: China(mainland)
Brand Name: Double Light
Certification: ROHS/REACH
Model Number: DL-TOP5050RGBC-XY
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.025-0.030per unit (Pieces)
Packaging Details: Loaded quantity 1000PCS per reel
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Detailed Product Description
Product Name: 5050 RGB SMD LEDs Package: 5050 Topview LEDs
Emitted Color: Full Colors Product Number: DL-TOP5050RGBC-XY
Color Temperature: Hyper Red:632nm,Pure Green:520nm,Blue:468nm Lens Type: Water Clear
Forward Voltage @20ma: Hyper Red:1.8-2.4V,Pure Green:3.0-3.8V,Blue:3.0-3.8V Viewing Angle: Hyper Red:120 Deg,Pure Green:120 Deg,Blue:120deg
High Light:

smd 3528 led


smd led chip



5050 1.50mm Height Top View Full Color Chip LEDs


The 5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

  1. Features:
  1. P-LCC-6 package.
  2. White package.
  3. Optical indicator.
  4. Colorless clear window.
  5. Ideal for backlight and light pipe application.
  6. Inter reflector.
  7. Low current (2mA) operation.
  8. Wide viewing angle.
  9. Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
  10. Computable with automatic placement equipment.
  11. Available on tape and reel (12mm Tape).

The product itself will remain within RoHS compliant Version.



  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax.
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.



Parameters Symbol MAX Unit
Power Dissipation PD Hyper Red 60 mW
Pure Green 95
Blue 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP Hyper Red 100 mA
Pure Green 100
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 1000
Blue 1000
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds


  1. Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 460 720 --- mcd


(Note 1)

Pure Green 780 1300 ---
Blue 210 350 ---
Viewing Angle 1/2 Hyper Red --- 120 --- Deg


(Note 2)

Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm




Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm


(Note 3)

pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red 1.80 2.30 2.40 V IF=20mA
Pure Green 3.00 3.30 3.80
Blue 3.00 3.30 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50



  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
