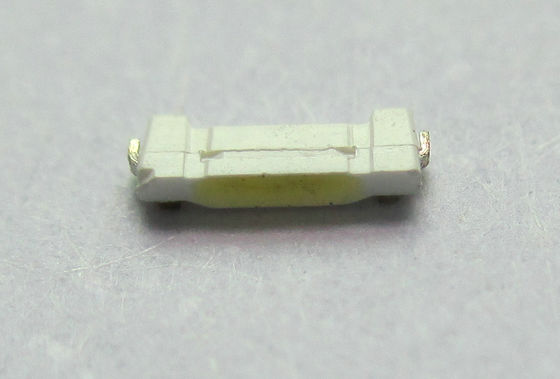

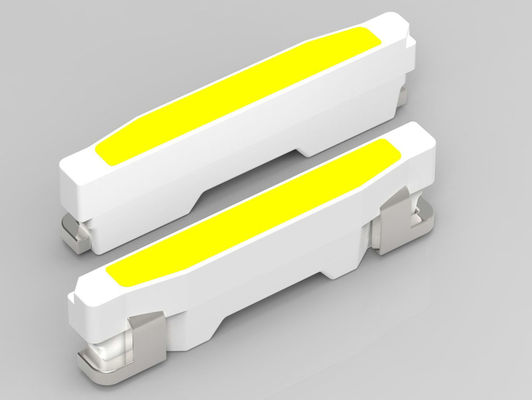

020 Package Side View Rgb SMD LED as Backlight in dashboards and switches

020 Package Side View Rgb SMD LED as Backlight in dashboards and switches

    • 020 Package Side View Rgb SMD LED as Backlight in dashboards and switches
    • 020 Package Side View Rgb SMD LED as Backlight in dashboards and switches
    • 020 Package Side View Rgb SMD LED as Backlight in dashboards and switches
  • 020 Package Side View Rgb SMD LED as Backlight in dashboards and switches

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP020RGBC-A4

    Payment & Shipping Terms:

    Minimum Order Quantity: 4000pcs
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: TT in Advance, Paypal, L/C
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Side View LED Package: 020
    Emitted Color: RGB Polarity: Common Anode / Cathode
    Lifespan: 50000 Hours Lens Type: Water Clear
    Forward Voltage @20ma: 2.0-2.2v Luminous Intensity: 2200-2800mcd
    Viewing Angle: 120 Deg

    DL-TOP020RGBC-A4.pdf

    020 Package Side View Full-Color Chip LEDs 020 RGB smd led as Backlight in dashboards and switches.

    TOP 020 Side View LED

    • Features:
    1. Package: 3.8*1. 0*0.6mm
    2. Emitted Color: Red, Green and Blue
    3. Soldering methods: All SMT assembly methods
    4. Comply RoHS standard
    5. The product itself will remain within RoHS compliant Version.
    • Descriptions:
    1. Due to the package design, the 020 SMD LED has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue LEDs and special phosphors. This feature makes the LED ideal for light guide application.
    2. The 020 SMD LEDs much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    3. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
    4. Utilizing advanced InGaN chip technology.
    5. Besides, lightweight makes them ideal for miniature applications, etc.
    • Applications:
    1. Automotive: Backlighting in dashboard and switch.
    2. Telecommunication: Indicator and backlighting in telephone and fax.
    3. Flat backlight for LCD, switch and symbol.
    4. Indoor signboard use.
    5. LCD Back Light.
    6. Indicators.
    7. Illuminations.
    8. Mobile phones.
    9. General use.
    Part No. Chip Material Lens Color Source Color
    DL-TOP020RGBC-A4 R AlGaInP Water Clear Hyper Red
    G InGaN Pure Green
    B InGaN Blue



    Absolute Maximum Ratings at Ta=25℃



    Parameters Symbol MAX Unit
    Power Dissipation PD Hyper Red 75 mW
    Pure Green 115
    Blue 115

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP Hyper Red 100 mA
    Pure Green 100
    Blue 100
    Continuous Forward Current IF Hyper Red 30 mA
    Pure Green 30
    Blue 30
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
    Pure Green 1000
    Blue 1000
    Operating Temperature Range Topr -40℃ to +85℃
    Storage Temperature Range Tstg -40℃ to +100℃
    Soldering Temperature Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV Hyper Red 650 780 --- mcd

    IF=20mA

    (Note 1)

    Pure Green 1300 1500 ---
    Blue 350 470 ---
    Viewing Angle 1/2 Hyper Red --- 120 --- Deg

    IF=20mA

    (Note 2)

    Pure Green --- 120 ---
    Blue --- 120 ---
    Peak Emission Wavelength λp Hyper Red --- 632 --- nm

    IF=20mA

    (Measurement

    @Peak)

    Pure Green --- 520 ---
    Blue --- 468 ---
    Dominant Wavelength λd Hyper Red --- 624 --- nm

    IF=20mA

    (Note 3)

    pure Green --- 525 ---
    Blue --- 470 ---
    Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
    Pure Green --- 35 ---
    Blue --- 25 ---
    Forward Voltage VF Hyper Red 1.80 2.20 2.40 V IF=20mA
    Pure Green 3.00 3.30 3.80
    Blue 3.00 3.30 3.80
    Reverse Current IR Hyper Red --- --- 10 µA VR=5V


    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

    Package Dimension:

    020 Package Side View Rgb SMD LED as Backlight in dashboards and switches





    Reel Dimensions:

    020 Package Side View Rgb SMD LED as Backlight in dashboards and switches

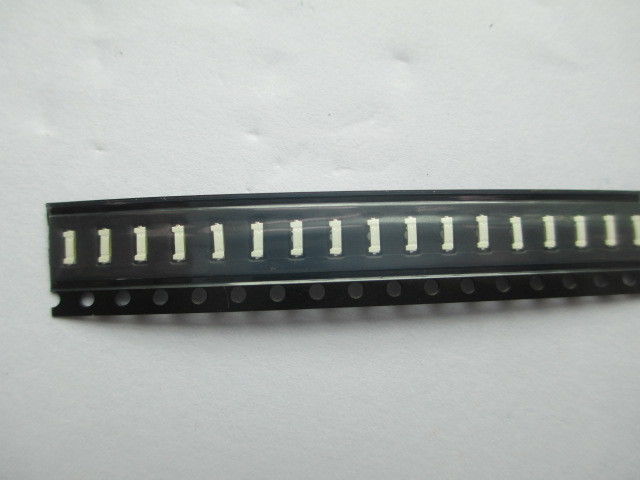

    Carrier Tape Dimensions:

    Loaded quantity 3000/4000PCS per reel.



    020 Package Side View Rgb SMD LED as Backlight in dashboards and switches
