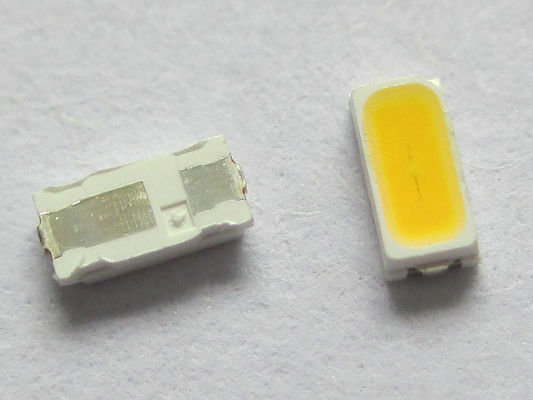

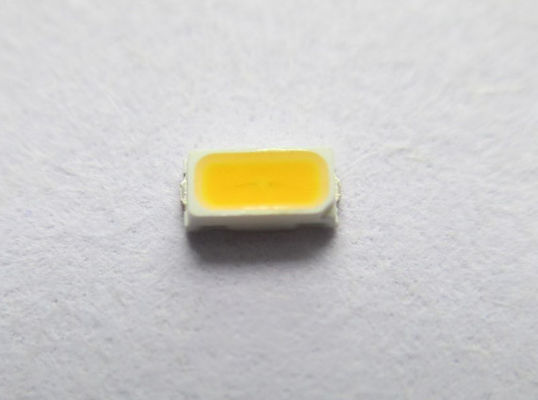

0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube

0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube

Large Image :  0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP3014W57-1W120
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 3014 &4014 White SMD LED Package: Pack 3014 &4014
Emitted Color: White Chromaticity Coordinates: 6000-7000k
Model Number: DL-TOP3014W57-1W120 Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 12-14lm
Viewing Angle: 120 Deg Power Dissipation: 95mW
High Light:

warm white smd led

,

led smd chip

 DL-TOP3014W57-1W120.pdf
0.80Mm Height 3014 & 4014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube

  1. Features:
  • P-LCC-2 package.
  • 3014 package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Wide viewing angle.
  • Suitable for automatic placement equipment.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Available on tape and reel (8mm Tape).
  • The product itself will remain within RoHS compliant Version.
  • 3014 warm white/ natural white/ cool white led
  1. Descriptions:
  • The TOP 3014 & 4014 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
  1. Applications:
  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.


 Package Dimension of 3014 & 4014 smd led:
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 0




Part No. Chip Material Lens Color Source Color
DL-TOP3014W57-1W120 InGaN   YellowDiffused

 White








  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 35 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 2350 2850 --- mcd IF=30mA (Note 1)
Luminous Flux Φ 11 --- 13 lm IF=30mA
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=30mA (Note 2)
Chromaticity Coordinates x --- 0.32 ---   IF=30mA (Note 3)
y --- 0.33 ---
Color Temperature TC 5300 --- 6000 K IF=30mA
Forward Voltage VF 3.00 3.30 3.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


Typical Electrical / Optical Characteristics Curves of 3014 & 4014 smd led
(25℃ Ambient Temperature Unless Otherwise Noted)
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 1
CIE Chromaticity Diagram:
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 2


Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)

BIN Code X Y BIN Code X Y BIN Code X Y
G1 0.4499 0.4273 G2 0.4549 0.4358
0.4549 0.4358 0.4599 0.4443
0.4595 0.4336 0.4645 0.4421
0.4545 0.4251 0.4595 0.4336

Notes:

  1. Color coordinates measurement allowance is ± 0.01.
  2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT


Reel Dimensions of 3014 & 4014 smd led :
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 3


Carrier Tape Dimensions of 4014 smd led:
Loaded quantity 3000 PCS Per reel.
0.80Mm Height 4014 3014 Top View White SMD LED 6000 -7500K 0.1W for panel light led tube 4
