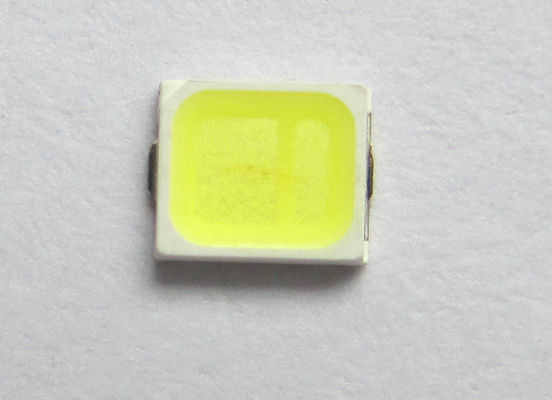

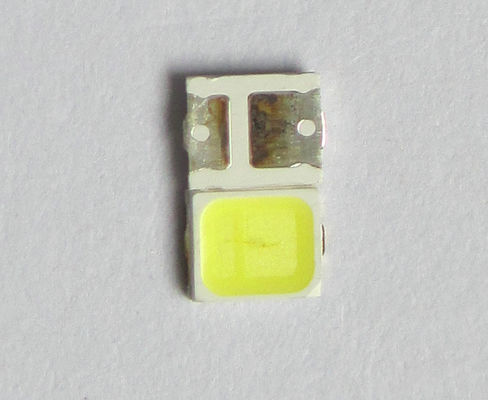

Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White

Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White
Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White

Large Image :  Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP2835W30-05W
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: US$ 0.005-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: White SMD LED Package: 2835
Emitted Color: White Chromaticity Coordinates: 3700-4500k 4000-6000k 6000-7000k
Model Number: DL-TOP2835W30-05W Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 24-26lm 26-28lm 28-30lm 50-55lm 60-65lm 65-70lm
Viewing Angle: 120 Deg Power Dissipation: 200mW 500mW
High Light:

warm white smd led

,

led smd chip





Outdoor Or Indoor 2835 Chip White Smd Led 0.2w 0.5w Warm White Nature White Cool White



DL-TOP2835W30-02W.pdf

DL-TOP2835W65-02W .pdf

DL-TOP2835W30-05W.pdf

DL-TOP2835W50-05W .pdf

 2835 white smd led 0.2w 0.5w 2835 chip led warm white,nature white, cool white for outdoor or indoor used

  • Features:
  • P-LCC-2 package.
  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Wide viewing angle.
  • Suitable for automatic placement equipment.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Available on tape and reel (8mm Tape).
  • The product itself will remain within RoHS compliant Version.
  • 0.2w 0.5w
  • warm white,natural white,cool white
  • high brightness
  • 24-26lm,26-28lm,28-30lm,40-45lm,45-50lm,50-55lm,55-60lm....



  • Descriptions:
  • The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



  • Applications:
  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.





Part No. Chip Material Lens Color Source Color
DL-TOP2835W30-05W InGaN   YellowDiffused

 White








  • Absolute Maximum Ratings at Ta=25
Parameters Symbol Max. Unit
Power Dissipation PD 500 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 250 mA
Continuous Forward Current IF 150 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux Φ 50 --- 55 lm IF=150mA
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=150mA (Note 2)
Chromaticity Coordinates x --- 0.45 ---   IF=150mA (Note 3)
y --- 0.43 ---
Color Temperature TC 5300 --- 6000 K IF=150mA
Forward Voltage VF 3.00 3.30 3.80 V IF=150mA
Reverse Current IR --- --- 10 µA VR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
