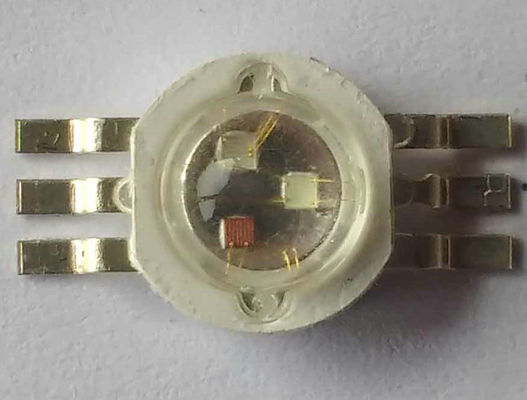

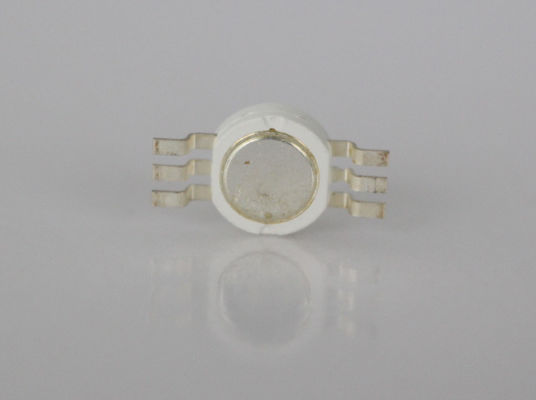

1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp

1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp

    • 1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp
    • 1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp
  • 1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008/ROHS
    Model Number: DL-HP10RGBC-3W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1,000pcs/Real
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: High Power RGB SMD LEDs Package: High Power LED
    Emitted Color: RED GREEN BLUE Product Number: DL-HP10RGBC-3W
    Color Temperature: R620-630nm G515-530nm B 455-470 Luminous Intensity: 900-1200mcd(R) 2000-2300(G) 1000-1300Mcd(B)
    Forward Voltage @20ma: 2.0-2.2v 2.8-3.0v 2.8-3.0v Viewing Angle: 120 Deg

    1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp



    Features:

    • Very long operating life (up to100k hours).
    • Three chips (color) in one package.
    • Independent control of each color.
    • More energy efficient than incandescent and most halogen lamps.
    • Low voltage operated.
    • Instant light.
    • Long operating life.
    • IR reflow process compatible.
    • The product itself will remain within RoHS compliant Version.



    Descriptions:

    • DL-HP10RGBC is one of the highest flux LEDs in the world. It is designed to satisfy applications of Solid-State lighting. It is designed to have three chips in one package. It has various colors for choice and can be independently controlled. More important, it can be pass reflow process.



    Applications:

    • Automotive: Backlight in dashboards and switches.
    • Telecommunication: Indicator and backlight in telephone and fax.
    • Indicator and backlight for audio and video equipment.
    • Indicator and backlight in office and family equipment.
    • Flat backlight for LCD’s, switches and symbols.
    • Light pipe application.
    • General use.



    Part No. Chip Material Source Color
    DL-HP10RGBC-3W R AlGaInP Ultra Red
    G InGaN Pure Green
    B InGaN Blue

















    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Rating Units
    Forward Current IF 350 mA

    Peak Pulse Current

    (tp≤100μs, Duty cycle=0.25)

    I pulse 1000 mA
    Reverse Voltage VR 5 V
    LED Junction Temperature Tj 135
    Operating Temperature Range Topr -40 to +80
    Storage Temperature Range Tstg -40 to +100
    Soldering Time at 260 ℃ (Max.) Tsol 5 Seconds




    High Power RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Viewing Angle 1/2 Full color --- 120 --- Deg IF=350mA
    Forward Voltage VF Red 2.0 2.2 3.0 V IF=350mA
    Green 2.8 3.2 4.0
    Blue 2.8 3.5 4.0
    Peak Emission Wavelength λp Red --- 625 --- nm

    Measurement

    @Peak

    Green --- 520 ---
    Blue --- 465 ---
    Dominant Wavelength λd Red 620 626 630 nm
    Green 525 528 530
    Blue 460 464 470
    Spectral Line Half-Width λ Red --- 18 --- nm IF=350mA
    Green --- 36 ---
    Blue --- 20 ---
    Luminous Flux Фv Red 30 40 --- lm IF=350mA
    Green 30 50 ---
    Blue 5 10 ---


    Notes:

    1. Luminous Flux Measurement allowance is ± 10%.

    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.



    High Power RGB SMD LEDs Mechanical Dimensions:

    1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp



    • Typical Electrical / Optical Characteristics Curves
    • (25℃ Ambient Temperature Unless Otherwise Noted)

      CIE Chromaticity Diagram:

    • Hyper Red:1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp

    • Pure Green:1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lampBlue:1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp
    •
    • Reliability Test Items And Conditions (Per Chip):
    • The reliability of products shall be satisfied with items listed below:

      Confidence level: 90%.

      LTPD: 10%.

      1) Test Items and Results:

      No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
      1 Resistance to Soldering Heat 6 Min

      Tsld=260±5℃,

      Min. 5sec

      25pcs 0/1
      2 Thermal Shock 300 Cycles

      H: +100℃ 5min ∫ 10 sec

      L: -10℃ 5min

      25pcs 0/1
      3 Temperature Cycle 300 Cycles

      H: +100℃ 15min ∫ 5min

      L: -40℃ 15min

      25pcs 0/1
      4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
      5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
      6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
      7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



      2) Criteria for Judging the Damage:

      Item Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7 ---











    • Reel Dimensions:
    • 1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp

      Carrier Tape Dimensions:

      Loaded quantity 2000PCS per reel.1W 3W 6 pin High Power RGB Full Color LED for stage lighting for wall wash lamp
