Multicolor Dot Matrix Alphanumeric Led Display 8*8 Module 64 Dots Assorted Colors Lights

Datasheet: DL-D20881XUAB.pdf                    Emitting colour:Amber
                    DL-D20881XRB.pdf                      Emitting color: Red

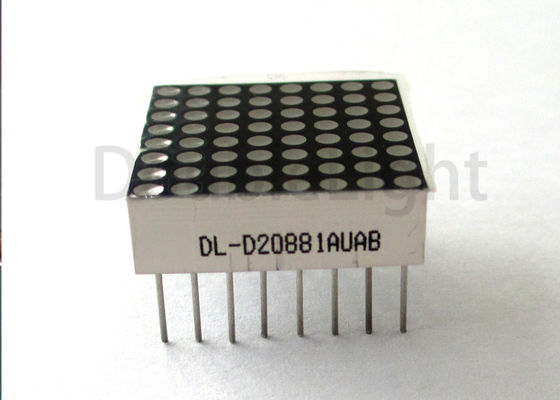

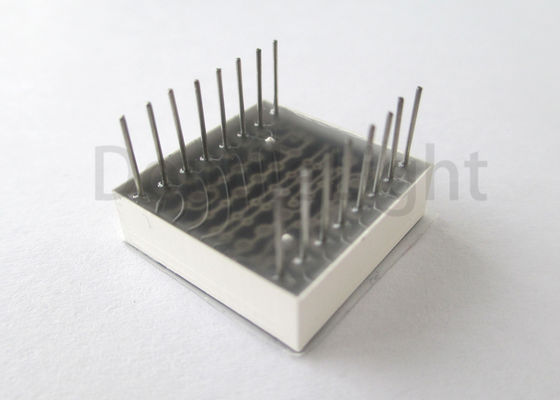

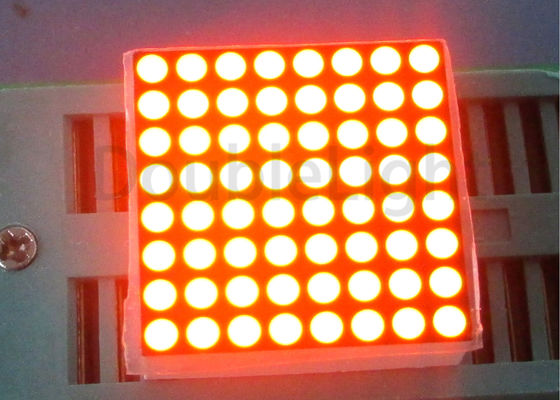

This is Dot Matrix LED Displays​ with diameter 1.9mm,0.8 inch Dots, 8×8 Dot Matrix LED Displays​, emitting color can be custom.


• Features:

1. 0.8inch (20.00mm) Matrix height.
2. Colors: Ambe
3. Flat package and light weight.
4. Easy assembly.
5. High quality and low cost.
6. High reliable and intensity.
7. Low power requirement.
8. The product itself will remain within RoHS compliant version.

• Descriptions:

1. The DL-D20881 series is a large emitting area (1.9mm diameter) LED sources configured in a 64 dots 8*8matrix array.
2. These displays provide excellent reliability in bright ambient light.
3. These devices are made with white dots and black surface.

• Applications:

1. Audio equipment.
2. Instrument panels.
3. Digital read out display
4. 8x8 Dot Matrix Display Module MCU Control DIY Suit
5. Dot matrix led display support windows series system


Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


For more details, please contact us.
