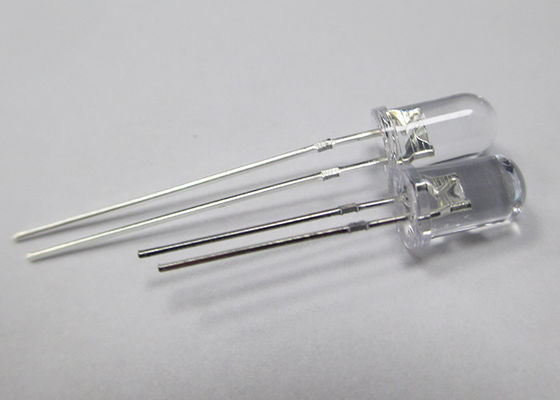

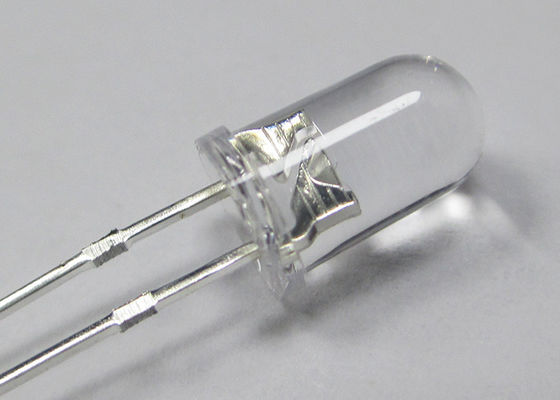

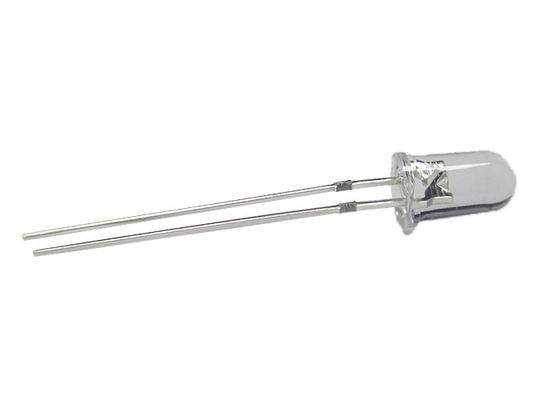

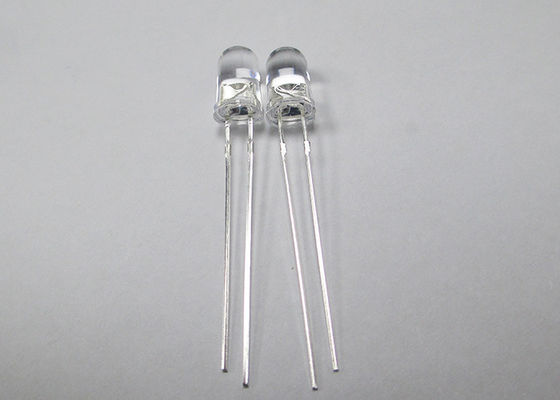

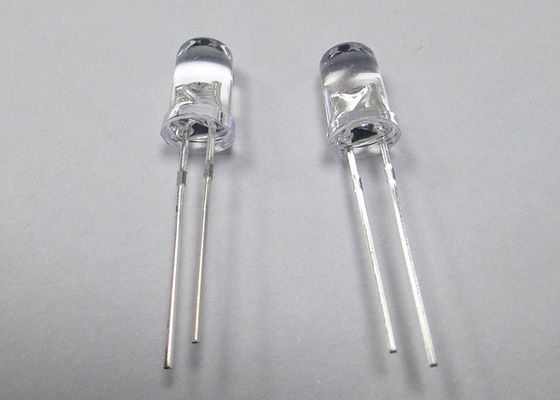

5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs

5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs
5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs

Large Image :  5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-504UVCA-1UV30
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: US$ 0.03-0.033per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000,000pcs per Day
Detailed Product Description
Product Name: Led Light Emitting Diode Emitted Color: Purple Color
Peak Emission Wavelength: 400nm Chip Material: InGaN
Lens Type: Water Clear Forward Voltage @20ma: 3.0-3.3v
Luminous Intensity: 100-200mcd Viewing Angle: 30 Deg
Size: 5mm Package: Popular T-1 3/4 Diameter Package
High Light:

light emitted diode

,

light emission diode

5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs

DL-504UVCA-1UV30.pdf


Features:

  1. Popular T-1 3/4 diameter package.
  2. No IR emission. Ideal for heat sensitive materials.
  3. Instant on and instant off.
  4. Long life.
  5. Sharp spectrum.
  6. Compact light (free design).
  7. Power is adjustable by current (No Shutters Needed).
  8. Ability to operate in low temperature.
  9. Impact resistance.
  10. The product itself will remain within RoHS compliant Version.


Applications:

  1. Photo catalyst excitation.
  2. Phosphor excitation.
  3. Sensor.
  4. QA equipment.
  5. Counterfeit Bill Detection.



Part No.Chip MaterialLens ColorSource Color
DL-504UVCA-1UV30InGaNWater ClearPurple


Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD100mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward CurrentIF25mA
Reverse VoltageVR5V
Operating Temperature RangeTopr-40℃ to +85℃
Storage Temperature RangeTstg-40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV100200---mcdIF=20mA (Note 1)
Viewing Angle *1/2---30---DegIF=20mA (Note 2)
Peak Emission Wavelengthλp---400---nmIF=20mA
Spectrum Radiation BandwidthΔλ---15---nmIF=20mA
Forward VoltageVF3.003.30---VIF=20mA
Reverse CurrentIR------10µAIF=20mA

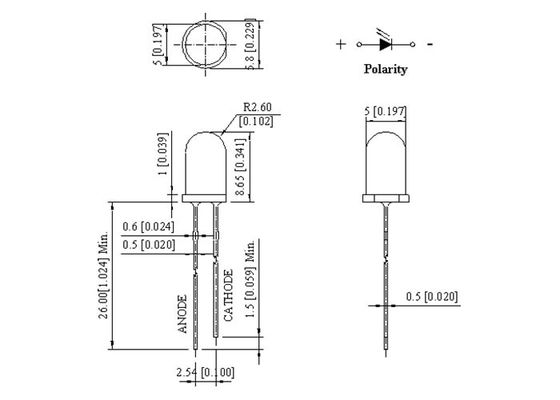

Package Dimension:

5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs 0

  • Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs 1
Our Services
1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Advantages
1. Long life: product life of up to 50,000 hours;
2. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;
3. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;
4. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;
5. Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.

5mm Round T-1 3/4 Type InGaN Led Light Emitting Diode Purple led diode chip for Advertising Signs 2
