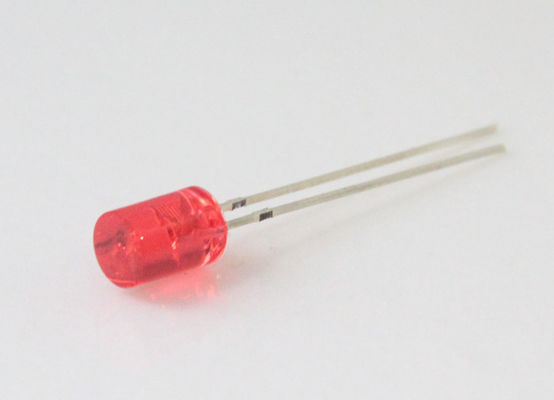

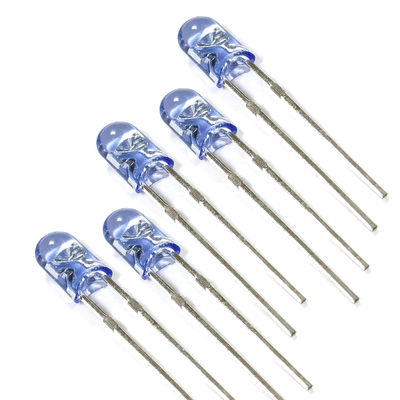

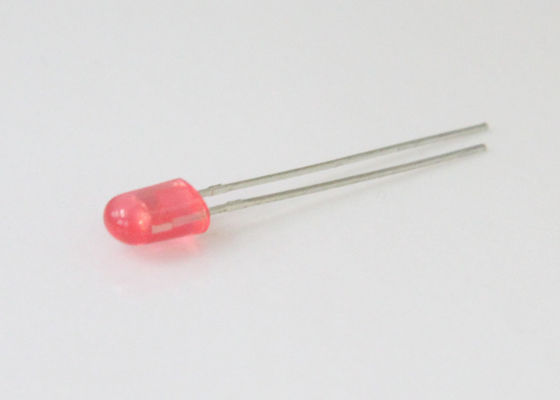

Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle

Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle
Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle

Large Image :  Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-434BTA-1B

Payment & Shipping Terms:

Minimum Order Quantity: 10 000pcs
Price: US$ 0.025-0.033per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000,000pcs per Day
Detailed Product Description
Product Name: Led Light Emitting Diode Package: 3.9×3.0mm
Emitted Color: Ultra Yellow Peak Emission Wavelength: 592nm
Chip Material: AlGaInP Lens Type: Water Clear
Forward Voltage @20ma: 2.0-2.2v Luminous Intensity: 800-1200mcd
Viewing Angle: 60 Deg
High Light:

light emission diode

,

led emitting diode

Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle



Oval LED Light Emitting Diode



Features:

  1. High luminous intensity output.
  2. Oval shape.
  3. Well defined spatial radiation.
  4. Wide viewing angle (2θ1/2): 100o/50o.
  5. Reliable and robust.
  6. The product itself will remain within RoHS complaint Version.

Applications:

  1. This precision optical performance oval LED is specially designed for passenger information signs.
  2. The LED lamps are available with different colors, intensities.
  3. Superior performance in outdoor environment.



Descriptions:

  1. Single or dual color graphic signs.
  2. Message boards.
  3. Variable message signs(VMS).
  4. Commercial outdoor advertising.



Part No. Chip Material Lens Color Source Color
DL-434BTA-1B AlInGaP Blue Ultra Blue













Oval LED Light Emitting Diode Absolute Maximum Ratings at Ta=25



  Symbol Max. Unit
Power Dissipation PD 65 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 600 780 --- mcd IF=20mA (Note 1)
Viewing Angle * 1/2 X --- 100 --- Deg IF=20mA (Note 2)
Y --- 50 ---
Peak Emission Wavelength λp --- 470 --- nm IF=20mA
Dominant Wavelength λd --- 468 --- nm IF=20mA (Note 3)
Spectrum Radiation Bandwidth Δλ --- 15 --- nm IF=20mA
Forward Voltage VF 1.6 2.2 2.6 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Notes:

Luminous Intensity Measurement allowance is ± 10%. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



Package Dimension:

Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle 0



Oval high brightness light emitting diodes Szie 3.9×3.0mm Elliptical Wide Angle 1
