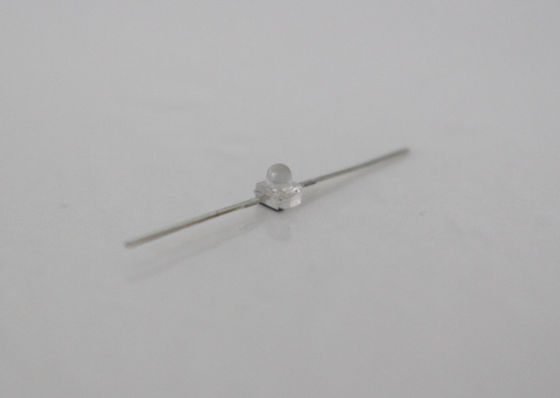

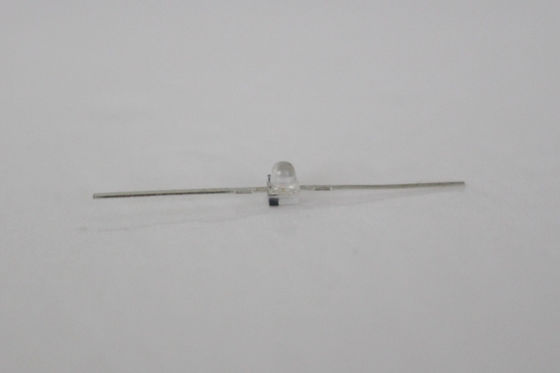

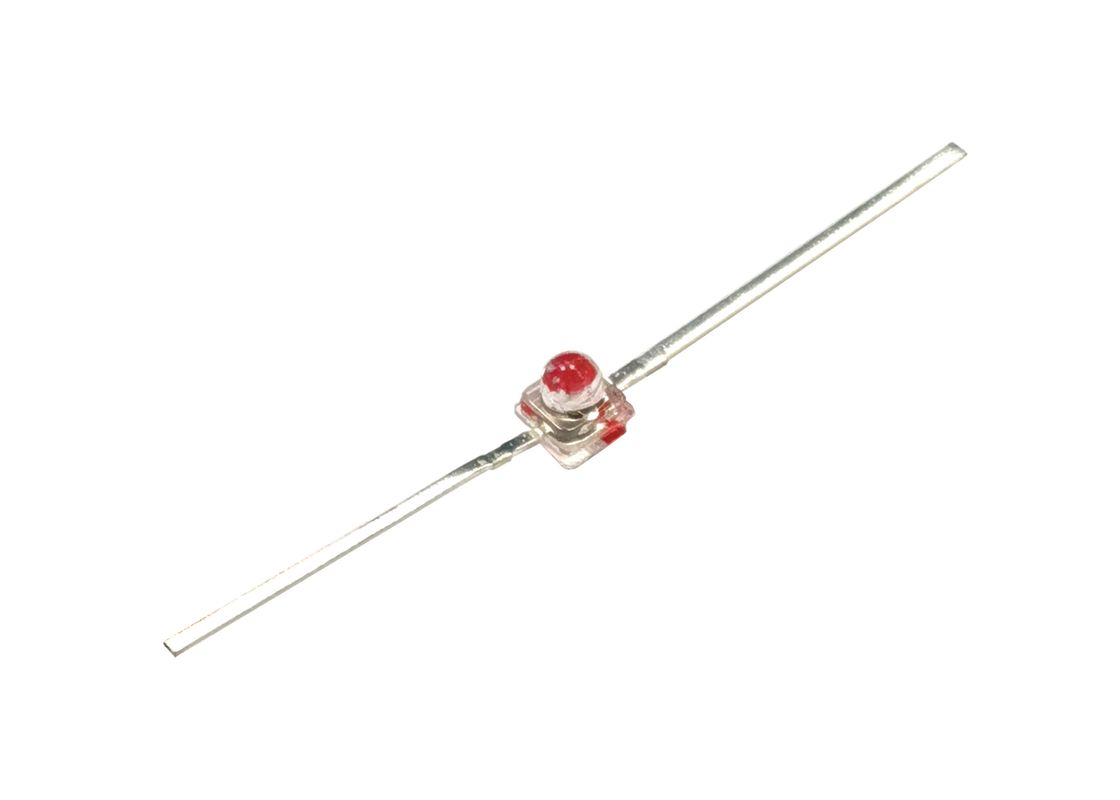

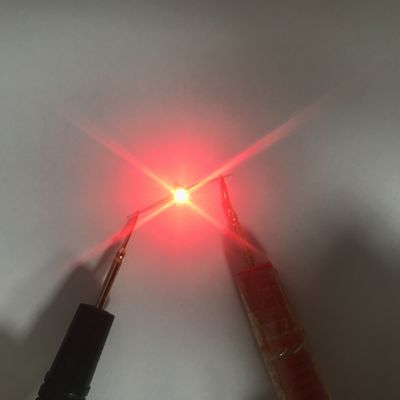

Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round

Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round

    • Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round
    • Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round
  • Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-R18SRC-2SR20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$ 0.03-0.033per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1.8mm Chip LED Package: 1.8mm
    Emitted Color: Hyper Red Peak Emission Wavelength: 624-632nm
    Chip Material: AlGaInP Lens Type: Water Clear
    Forward Voltage @20ma: 1.8-2.3v Luminous Intensity: 1000-2000mcd
    Viewing Angle: 20 Deg

    Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round



    Features:

    1. 2.15×2.40mm with 1.80mm lens.
    2. Small double-end package.
    3. EIA Std. package.
    4. Mono-color type.
    5. High reliability.
    6. Low forward voltage.
    7. Compatible with automatic placement equipment.
    8. The product itself will remain within RoHS compliant version.



    Descriptions:

    1. The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
    2. Besides, light weight makes them ideal for miniature applications.
    3. Furthermore by automation assembly machines the accuracy is anticipated.



    Applications:

    1. Small indicator for indoor applications.
    2. Flat backlight for LCD, switches and symbols.
    3. Indicator and backlight in office equipment.
    4. Indicator and backlight for battery driven equipment.
    5. Indicator and backlight for audio and video equipment.
    6. Automotive: Backlighting in dashboards and switches.
    7. Telecommunication: Indicator and backlighting in telephone and fax.



    Package Dimension:

    Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round







    Part No.

    Chip Material Lens Color

    Source Color

    DL-R18SRC-2SR20 AlGaInP Water Clear Hyper Red













    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max Unit
    Power Dissipation PD 60 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 2000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 1000 2000 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 20 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 632 --- nm IF=20mA
    Dominant Wavelength λd --- 624 --- nm IF=20mA (Note 3)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF 1.80 2.20 2.80 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V






    Typical Electrical / Optical Characteristics Curves

    (25℃ Ambient Temperature Unless Otherwise Noted)

    Water Clear Subminiature Axial Hyper Red brightest led chip 1.80mm Round
