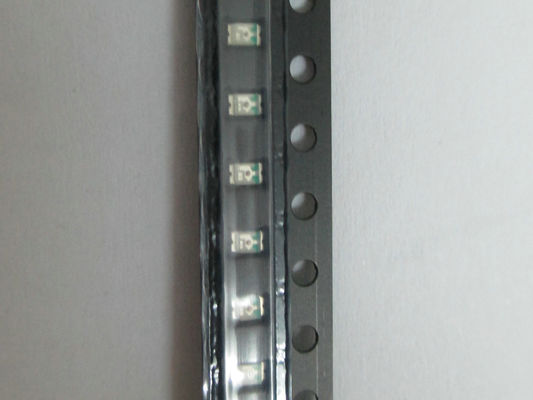

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white

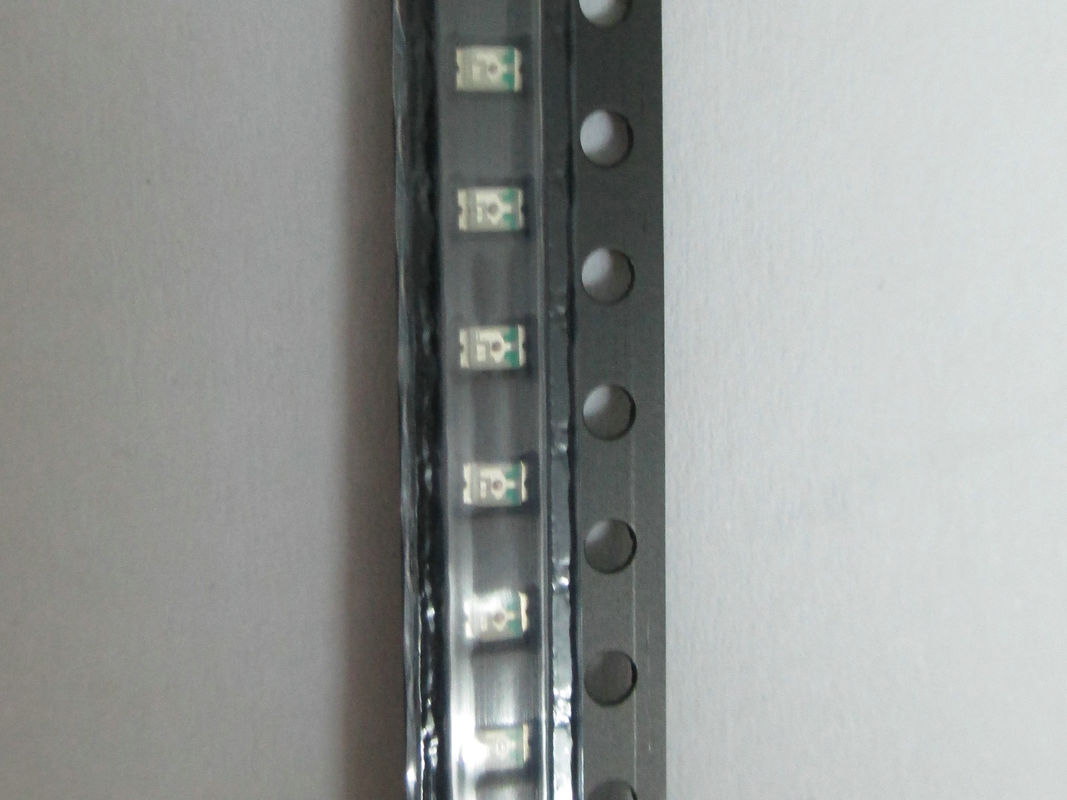

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white

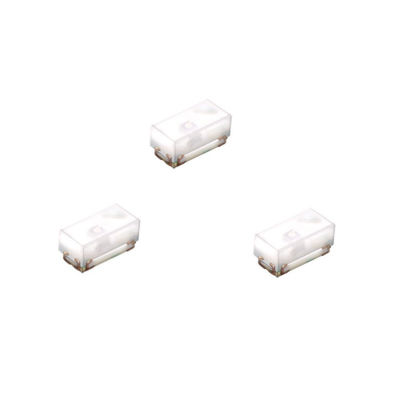

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white

Large Image :  1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0402W80-1W120

Payment & Shipping Terms:

Minimum Order Quantity: 4000pcs
Price: US$ 0.03-0.033 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 0402 Side View LED Package: 0402
Emitted Color: DL-PCB0402W80-1W120 Chromaticity Coordinates: White
Chip Material: InGaN Lens Type: Water Clear
Forward Voltage @20ma: 2.8-3.0v Luminous Intensity: 800-1000mcd
Viewing Angle: 120 Deg
High Light:

side emitting led

,

side view led smd

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white





PCB 0402 Side View LED



Type: 0402/0603/0805/1206
Emitting angle: 60/120°
LED chips: Taiwan Epistar/Japan Nichia
Package: bulk/tapping reel
Colors: white, warm white, red, green, blue, amber, orange, bi-color, RGB 3 colors, IR, UV
OEM and ODM orders are accepted



Features:

  1. White SMT package.
  2. Side view white LED.
  3. Wide viewing angle.
  4. Lead frame package with individual 2 pins.
  5. Compatible with automatic placement equipment.
  6. Compatible with infrared and vapor phase reflow solder process.
  7. The product itself will remain within RoHS compliant Version.



  1. Features:
  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.



  1. Descriptions:
  1. The 0402 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.



  1. Applications:
  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Indoor signboard use.

General use.

Part No. Chip Material Lens Color Source Color
DL-PCB0402W InGaN Water Clear White













  1. Absolute Maximum Ratings at Ta=25℃
  1. Parameters Symbol Max. Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 120 200 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 130 --- Deg IF=20mA (Note 2)
    Chromaticity Coordinates x --- 0.30 ---   IF=20mA (Note 3)
    y --- 0.31 ---
    Forward Voltage VF 2.80 3.40 3.80 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V




    Notes:

  2. Luminous Intensity Measurement allowance is ± 10%.
  3. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  4. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

​0402 SMD LED Package Dimension:

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 0



Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 1

CIE Chromaticity Diagram:

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 2



hromaticity Coordinates Specifications for Bin Rank:

BIN Code X Y BIN Code X Y BIN Code X Y
G1 0.3099 0.3073 G2 0.3149 0.3158
0.3149 0.3158 0.3199 0.3243
0.3195 0.3136 0.3245 0.3221
0.3145 0.3051 0.3195 0.3136





















Reel Dimensions:

1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 3





Carrier Tape Dimensions:

Loaded quantity 3000/4000PCS per reel.



1.0x 0.5x0.42mm Surface Mount Sanan LED chip 20mA 0402 white 4
