1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard

1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard

    • 1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard
    • 1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard
  • 1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP1010RGBC-A1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1,000pcs/Real
    Price: US$ 0.022-0.023. per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1010 RGB SMD LEDs Package: SMD LED
    Emitted Color: RED GREEN BLUE Product Number: DL-TOP1010RGBC-A1
    Peak Emission Wavelength: R632nm G520nm B 468nm Luminous Intensity: 120-140mcd(R) 650-700(G) 110-130Mcd(B)
    Forward Voltage @20ma: Red:1.6-2.4v Green/blue2.8-3.8v Viewing Angle: 120 Deg
    Height: 0.62mm Continuous Forward Current: 25mA

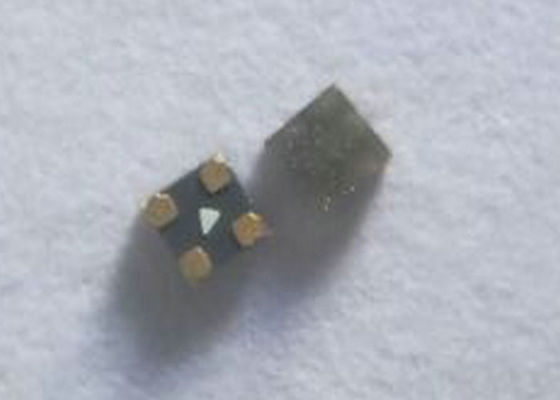

    1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard

    DL-TOP1010RGBC-A1.pdf



    Features:

    1. Package in 8mm tape on 7” diameter reel.
    2. Compatible with automatic placement equipment.
    3. Compatible with infrared and vapor phase reflow solder process.
    4. Full-Color Type.
    5. The product itself will remain within RoHS compliant Version.

    Descriptions:

    1. The TOP 1010 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    2. Besides, lightweight makes them ideal for miniature applications .etc.

    Applications:

    1. Automotive: Backlighting in dashboard and switch.
    2. Telecommunication: Indicator and backlighting in telephone and fax.
    3. Flat backlight for LCD, switch and symbol.
    4. Indoor signboard use.
    5. General use



    Part No. Chip Material Lens Color Source Color
    DL-TOP1010RGBC-A1 R AlGaInP Water Clear Hyper Red
    G InGaN Pure Green
    B InGaN Blue

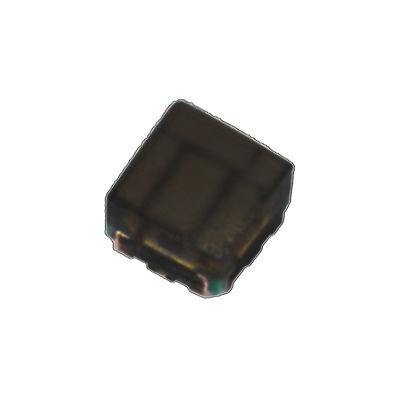

    1010 side view RGB LED

    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Emitting Color Max. Unit
    Power Dissipation PD Hyper Red 60 mW
    Pure Green 95
    Blue 95

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP Hyper Red 100 mA
    Pure Green 100
    Blue 100
    Continuous Forward Current IF Hyper Red 25 mA
    Pure Green 25
    Blue 25
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
    Pure Green 1000
    Blue 1000
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    0404 RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV Hyper Red 120 140 --- mcd

    IF=20mA

    (Note 1)

    Pure Green 650 700 ---
    Blue 110 130 ---
    Viewing Angle 1/2 Hyper Red --- 120 --- Deg

    IF=20mA

    (Note 2)

    Pure Green --- 120 ---
    Blue --- 120 ---
    Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
    Pure Green --- 520 ---
    Blue --- 468 ---
    Dominant Wavelength λd Hyper Red --- 624 --- nm

    IF=20mA

    (Note 3)

    Pure Green --- 525 ---
    Blue --- 470 ---
    Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
    Pure Green --- 35 ---
    Blue --- 25 ---
    Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
    Pure Green 2.80 3.40 3.80
    Blue 2.80 3.40 3.80
    Reverse Current IR Hyper Red --- --- 10 µA VR=5V
    Pure Green 50
    Blue 50






    Notes:

    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

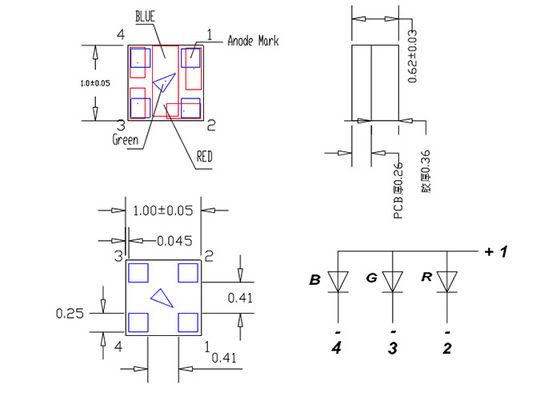

    1010 RGB SMD LEDs Package Dimension:



    1010 RGB LED Chip tri color smd led 0404 led side emitting 120 led strip used by indoor signboard





    Company introduction:

    HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include 1010 RGB SMD LED, 0404 Side view led, THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
