5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led

5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led
5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led 5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led 5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led

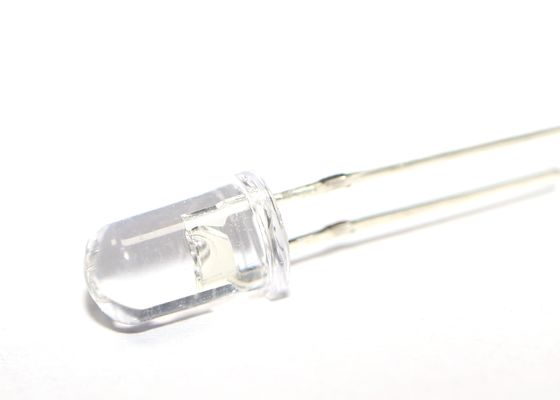

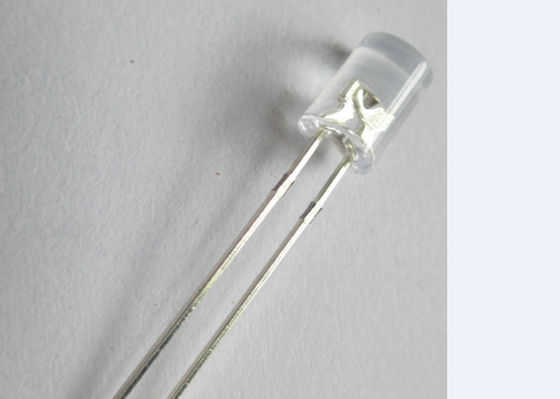

Large Image :  5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-F506RGBMA-F1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: US$ 0.03-0.033per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000,000pcs per Day
Detailed Product Description
Product Name: Led Light Emitting Diode Package/Size: 5mm
Emitted Color: RGB Color Peak Emission Wavelength: 632/520/468nm
Chip Material: AlGaInP,InGaN Lens Type: Water Clear
Forward Voltage @20ma: 3.0-5.5v Luminous Intensity: 300-500mcd,550-1050mcd,200-500mcd
Viewing Angle: 60 Deg Power Dissipation: 200mW
High Light:

light emitted diode

,

led emitting diode

 5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led



DL-F506RGBMA-F1.pdf



Features

  1. Available on tape and reel.
  2. Single lamp with 3 original colors (red, green and blue).
  3. Designed for bonding with LED chip.
  4. Triple chips embedded.
  5. Multiple colors compose full spectrums.
  6. Electricity control IC embedded.
  7. Lens size with 5mm / 8mm / 10mm options.
  8. High intensity.
  9. Viewing Angles: 60°.
  10. Fancy, fun, hottest in the market.
  11. Operating voltage range: 3.00~5.50V DC.
  12. Blinking frequency: 0.07Hz (VDD=4.50V).
  13. Frequency tolerance: ± 20%.
  14. The product itself will remain within RoHS compliant Version.

Applications:

  1. Status indicators.
  2. Commercial use.
  3. Advertising Signs.
  4. Toys / sports utilities.
  5. Miniature key chains.
  6. Effect Lights.
  7. Display / decoration lights.
  8. Electronic displays and signals.
  9. Interior decoration lights.
  10. Indicator lights.
  11. Solar energy lights / garden lights.
  12. Monitor.
  13. Telephone.
  14. Computer.
  15. Circuit board

Benefits:

  1. New trend creations.
  2. Low energy consumptions.
  3. Low maintenance costs.
  4. High application design flexibility.
  5. High reliability.



Descriptions

  1. The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode.
  2. The Pure Green source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.
  3. The Blue source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.
  • Absolute Maximum Ratings at Ta=25℃



Parameters Symbol Max. Unit
Power Dissipation (Per Chip) PD 200 mW

Peak Forward Current (Per Chip)

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 80 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol

Emitting

Color

Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV Red 300 600 --- mcd

VDD=4.50V

(Note 1)

Green 550 1050 ---
Blue 200 500 ---
Viewing angle 2θ1/2   --- 60 --- Deg

VDD=4.50V

(Note 2)

Peak Emission Wavelength λp Red --- 632 --- nm VDD=4.50V
Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Red --- 624 --- nm

VDD=4.50V

(Note 3)

Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Red --- 20 --- nm

IF=20mA

(Per Chip)

Green --- 35 ---
Blue --- 25 ---
Blinking Frequency F   --- 0.07 --- Hz VDD=4.50V
Frequency tolerance Fled   --- ±20% --- Hz VDD=4.50V
Operating Voltage VF   3.00 4.50 5.50 V
Reverse Current IR   --- --- 50 µA VR=5V


Notes:

  1. Luminous Intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. All specs and applications shown above subject to change without prior notice.

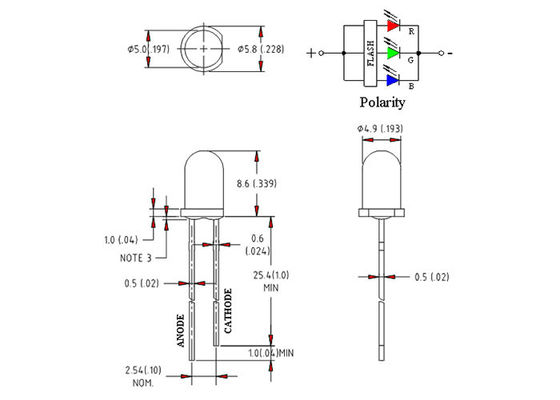

Package Dimension:



5mm Cylindrical Led Light Emitting Diode without Flange Type Full Color Blinking LEDs RGB Flashing dip lamp led 0
