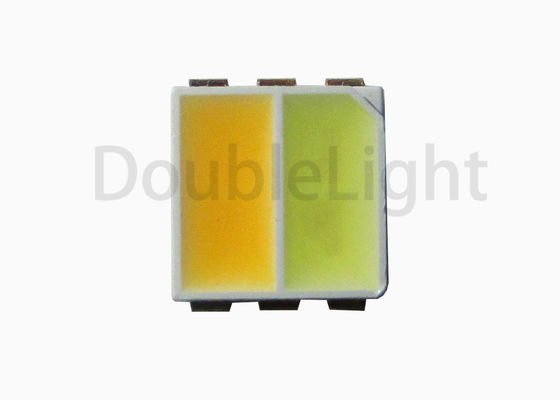

Product Name: Bi-color Led Package: TOP 5050 SMD LED
Emitted Color: Warm White & White Color Temperature: 3000K(Warm White),6000K (White)
Forward Voltage @20ma: 3.0-3.8v Standard Package: 1000 Pieces Per Reel
Datesheet: Update

Datesheet: DL-TOP5050W65W30.pdf                 LIGHT SOURCE: Warm White & White


Conjoined Bi color- Warm white and white SMD LED 5050 6 Pins Diode 2800-3200K ,6000-7000K, RGB and four clolors
1.50mm Height 2220 Package Top View
White & Warm White Chip LED




Features:

  1. Package in 12mm tape on 7" diameter reels.
  2. Industry standard footprint.
  3. Low profile.
  4. Small size (L×W×H: 5.40mm×5.00mm×1.50mm).
  5. Super luminosity white LED.
  6. Several colors available.
  7. Built in 3 LED chips.
  8. Wide viewing angle.
  9. Soldering methods: Reflow Soldering.
  10. High performance.
  11. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The 5050 Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications. etc.

Applications:

  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax.
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.
Part No.Chip MaterialLens ColorSource Color
DL-TOP5050W65W30InGaNYellow DiffusedWhite
Warm White









Mechanical Dimensions

 Conjoined Bi color- Warm white and white SMD LED 5050 6 Pins Diode 2800-3200K ,6000-7000K, RGB and four clolors


Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMaxUnit
Power Dissipation(Per Chip)PD95mW

Peak Forward Current(Per Chip)
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Continuous Forward Current(Per Chip)IF25mA
Reverse Voltage(Per Chip)VR5V
Electrostatic Discharge (HBM)ESD1000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃

ParametersSymbolEmitting ColorMin.Typ.Max.UnitTest Condition
Luminous Flux *ΦWhite810---lmIF=30mA
Luminous Flux *ΦWarm White7.59.5---lmIF=30mA
Viewing Angle *2θ1/2W&WW---120---DegIF=30mA
Color TemperatureTcWhite600065007000kIF=30mA
Color TemperatureTcWarm White280030003200kIF=30mA
Forward VoltageVFWhite3.003.303.80VIF=30mA
Forward VoltageVFWarm White3.003.303.80VIF=30mA
Reverse CurrentIRW&WW------10µAVR=5V



Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
