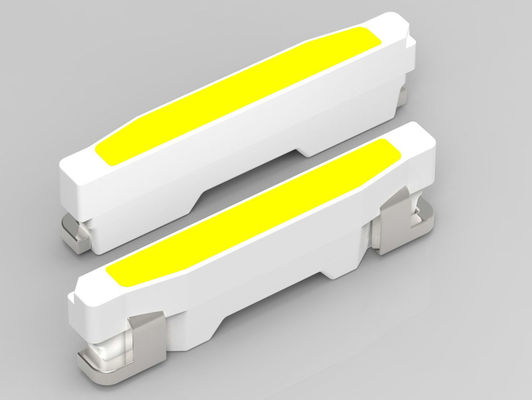

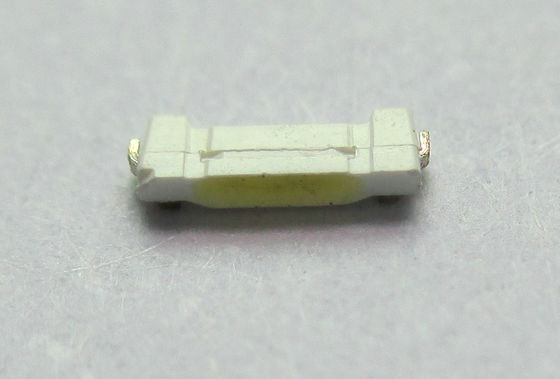

1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones

1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones
1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones

Large Image :  1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP020W30

Payment & Shipping Terms:

Minimum Order Quantity: 4000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Side View LED Package: Top 020
Emitted Color: White Chromaticity Coordinates: 0.31/0.32
Chip Material: InGaN Lens Type: Yellow Diffused
Forward Voltage @20ma: 3.0-3.2v Luminous Intensity: 2200-2800mcd
Viewing Angle: 120 Deg
High Light:

side emitting led

,

led side emitting

DL-TOP020W85M-1W120.pdf
1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones

Features:

  1. White SMT package.
  2. Side view white LED.
  3. Wide viewing angle.
  4. Lead frame package with individual 2 pins.
  5. Compatible with automatic placement equipment.
  6. Compatible with infrared and vapor phase reflow solder process.
  7. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. Due to the package design, the 020 SMD LED has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue LEDs and special phosphors. This feature makes the LED ideal for light guide application.
  2. The 020 SMD LEDs much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  3. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
  4. Utilizing advanced InGaN chip technology.
  5. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Indoor signboard use.
  5. LCD Back Light.
  6. Indicators.
  7. Illuminations.
  8. Mobile phones.
  9. General use.



Package Dimension:

1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 0


Part No.Chip MaterialLens ColorSource Color
DL-TOP020W30InGaNYellow DiffusedWhite








Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD95mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward CurrentIF25mA
Reverse VoltageVR5V
Derating Linear From 25℃ 0.3mA/℃
Electrostatic Discharge (HBM)ESD1000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld

Reflow Soldering: 260℃ for 5 Seconds
Hand Soldering: 350℃ for 3 Seconds



Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV22002800---mcdIF=20mA (Note 1)
Viewing Angle *2θ1/2---120---DegIF=20mA (Note 2)
Chromaticity Coordinatesx---0.45--- IF=20mA (Note 3)
y---0.43---
Forward VoltageVF2.803.203.40VIF=20mA
Reverse CurrentIR------10µAVR=5V



Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 1

Reel Dimensions:
1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 2

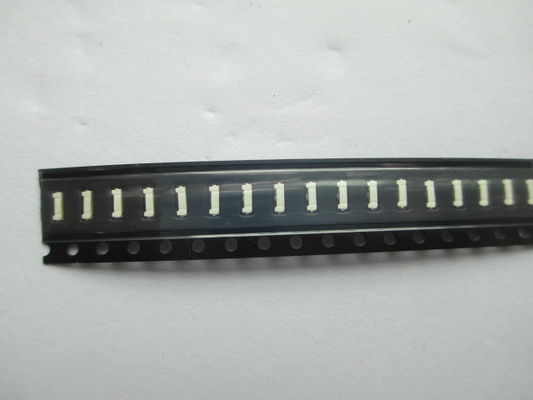

Carrier Tape Dimensions:
Loaded quantity 3000/4000PCS per reel.

1.20mm Height Top view High Brightness Smd Led 020 side view White Led Chip 4000-6000k used in Mobile phones 3
