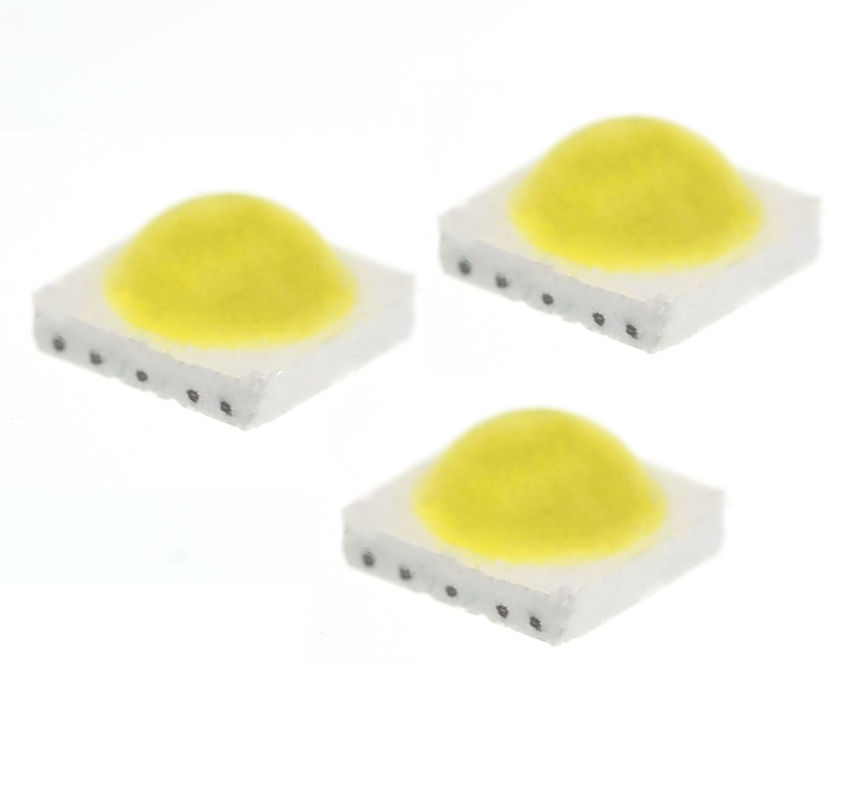

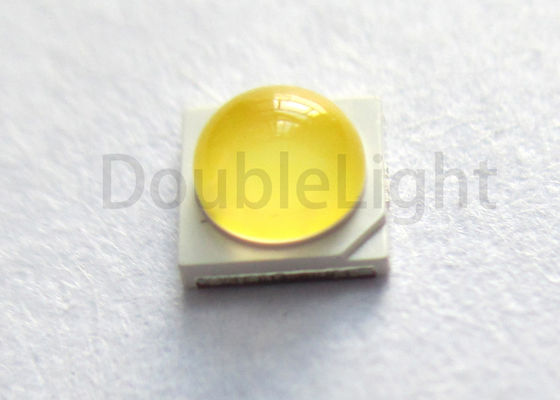

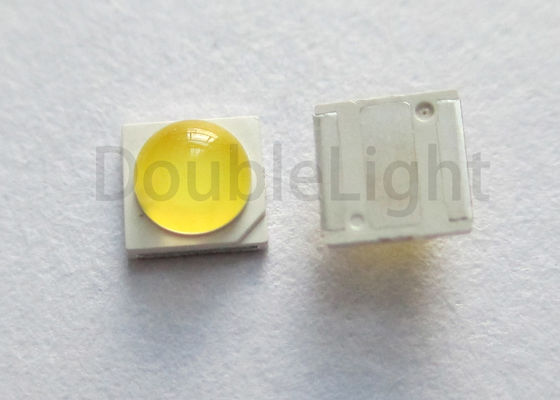

1W & 3w High Power SMD 3535 Warm White and White Light Emitting Diodes

Name: 1W & 3w High Power SMD 3535 Warm White and White Light Emitting Diodes
Brand: DOUBLE LIGHT
SKU: DL-PCB3535W30
Price: 0.13 USD
Availability: InStock
Rating: 4.6 (102 reviews)

Large Image : 1W & 3w High Power SMD 3535 Warm White and White Light Emitting Diodes

Product Details:

Place of Origin:	China
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008,Rosh
Model Number:	DL-PCB3535W30

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	US$ 0.13-0.3per unit (Pieces) depends on the quantity
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Part No:	PCB3535 SMD LED Components	Emitted Color:	Warm White
Current:	350/700ma	Forward Voltage:	2.8-3.8V
Certification:	Rosh SGS ISO9001	Color Rendering Index(Ra):	80
Datasheet:	Update
High Light:	brightest smd led chip , warm white smd led

Datasheet: DL-PCB3535W30.pdf CCT: 2700-3300K Standard package: 1000 pcs per reel

1W&3W High Power 3535 Warm White LED

a.Features:

Small package with high efficiency
Long operating life.
Available in white, green, blue, red, yellow, Amber
Typical color temperature: 3000 K.
View angle: 120°.
Low voltage DC operated.
The product itself will remain within RoHS compliant Version.
ESD protection.

b.Applications:

Reading lights (car, bus, aircraft).
Portable (flashlight, bicycle).
Mini_accent/Uplighters/Downlighters/Orientation.
Bollards/Security/Garden.
Cove/Undershelf/Task.
Automotive rear combination lamps.
Traffic signaling/Beacons/ Rail crossing and Wayside.
Indoor/Outdoor Commercial and Residential Architectural.
Edge_lit signs (Exit, point of sale).
LCD Backlights/Light Guides.

Mechanical Dimensions

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	3000	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1000	mA
Forward Current	IF	350/700	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-10℃ to +70℃
Storage Temperature Range	Tstg	-20℃ to +80℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Flux	Φ	100	120	130	lm	If=350mA (Note 1)
Luminous Flux	Φ	200	220	240	lm	If=700mA (Note 1)
Viewing Angle	2θ(1/2)	---	90	---	Deg	(Note 2)
Color Temperature	TC	2700	---	3300	K	If=350/700mA
Forward Voltage	VF	2.80	3.40	3.80	V	If=350/700mA
Reverse Current	IR	---	---	10	µA	VR=5V

For more details, please contact us.
