| Product Name: | 3mm Cylindrical With Flange | Source Color: | Ultra Red |
|---|---|---|---|
| Forward Voltage @20ma: | 2.20V | Viewing Angle: | 80Deg |
| Forward Current: | 25mA | Peak Emission Wavelength: | 632nm |
| Power Dissipation: | 70mW |

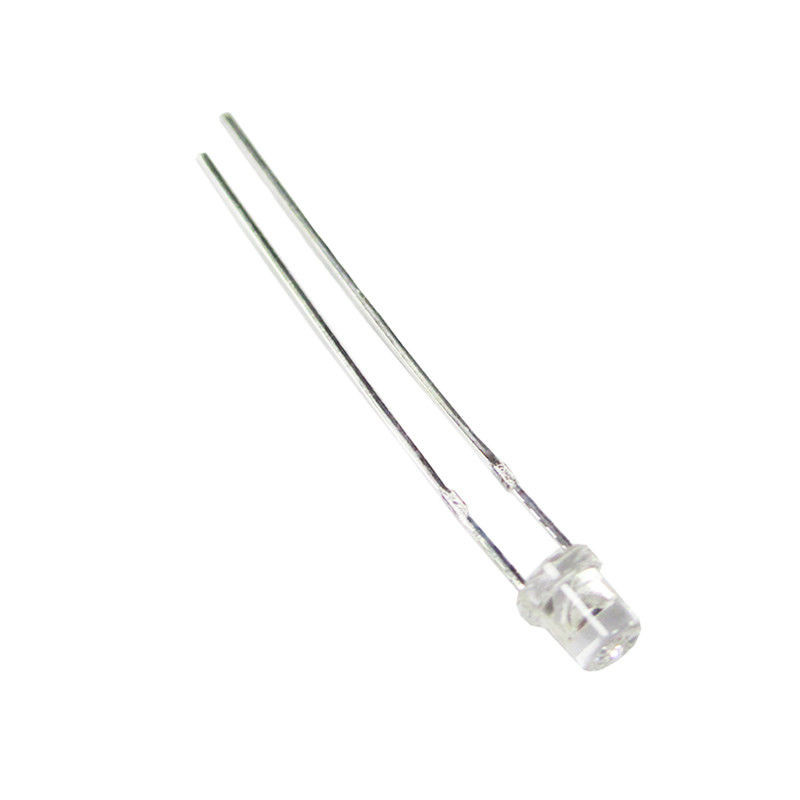

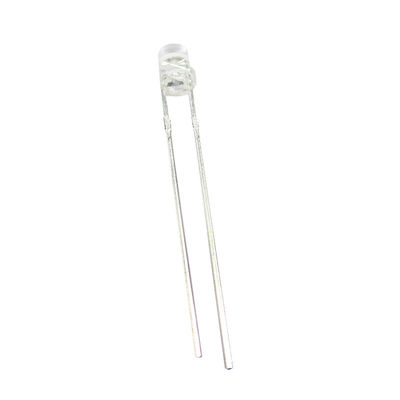

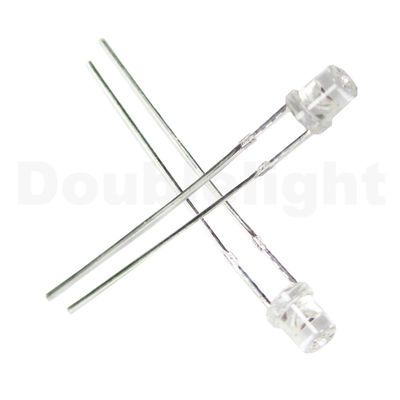

3mm Cylindrical With Flange Ultra Red LED led light components
Features:
1. Popular Standard T-1 diameter package.
2. High efficiency.
3. Viewing angle=80°.
4. Selected minimum intensities.
5. General purpose leads.
6. Available on tape and reel.
7. Reliable and robust.
8. The product itself will remain within RoHS compliant version.
Descriptions:
1. The series is specially designed for applications requiring higher brightness.
2. The LED lamps are available with different colors, intensities.
Applications:
1. Status indicators.
2. Commercial use.
3. Advertising Signs.
4. Back lighting.
Absolute Maximum Ratings at Ta=25
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 70 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +85℃ | |
| Storage Temperature Range | Tstg | -40℃ to +100℃ | |
| Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity * | IV | 200 | 500 | --- | mcd | IF=20mA (Note 1) |
| Viewing Angle * | 2θ1/2 | --- | 80 | --- | Deg | IF=20mA (Note 2) |
| Peak Emission Wavelength | λp | --- | 632 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 624 | --- | nm | IF=20mA (Note 3) |
| Spectral Line Half-Width | △λ | --- | 20 | --- | nm | I F =20mA |
| Forward Voltage | VF | 1.80 | 2.20 | --- | V | IF=20mA |
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.
