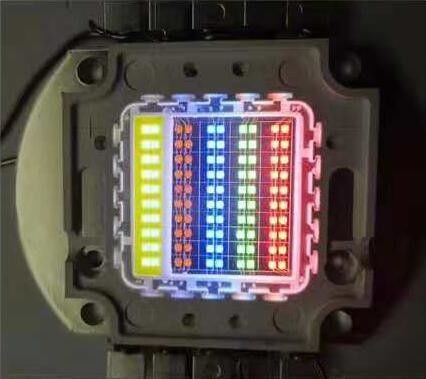

Customize led 15W 24V RGB High Power COB LED 100000 hours operating life

Customize led 15W 24V RGB High Power COB LED 100000 hours operating life

Customize led 15W 24V RGB High Power COB LED 100000 hours operating life

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-COB15WRGB-24V

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: RGB COB SMD LED Emitted Color: RGB
Wavelength: R 632 G 520 B 468 Model Number: DL-COB15WRGB-24V
Lens Color: Water Clear Forward Voltage @60ma: 24v
Luminous Flux: 300-380(R) 400-500(G) 100-150(B) Viewing Angle: 120 Deg
Power Dissipation: 15W

DL-COB15WRGB-24V .pdf

15W 24V RGB High Power COB LED

  • Features
  1. Very long operating life (up to100k hours).

  2. Three chips (color) in one package.

  3. Independent control of each color.

  4. More energy efficient than incandescent and most halogen lamps.

  5. Low voltage operated.

  6. Instant light.

  7. Long operating life.

  8. IR reflow process compatible.

  9. The product itself will remain within RoHS compliant Version

  • Applications
  1. Commercial lighting
  2. Advertisement
  3. Architectural lighting
  4. Street lamps



  •  Package Dimension:

Customize led 15W 24V RGB High Power COB LED 100000 hours operating life




Part No. Chip Material Lens Color Source Color
DL-COB15WRGB-24V R AlGaInP Water Clear Hyper Red
G InGaN Pure Green
B InGaN Blue
















  • Absolute maximum ratings(Ta=25°C)
Parameters Symbol Rating Units
Power Dissipation Pd 15 W
Forward Current If 350 mA
Peak pulse Current Ifp 500 mA
Reverse Voltage Vr 5 V
Electrostatic Discharge ESD 4500(HBM) V
Operating Temperature Topr -40°C~+85°C °C
Storage Temperature Tstg -40°C~+100°C °C
Soldering temperature Tsol 260±5°C(for 5sec) °C
Manual Soldering Temperature TSOL 350±20°C For 3 Seconds °C

  • Opto-Electronical Specification
Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Flux Фv Hyper Red 300 380 --- lm

IF=350mA

(Note 1)

Pure Green 400 500 ---
Blue 100 150 ---
Viewing Angle 1/2 Hyper Red --- 120 --- Deg IF=350mA
Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=350mA
Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm IF=350mA
pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm

IF=350mA



Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red --- 24 --- V

IF=350mA



Pure Green --- 24 ---
Blue --- 24 ---
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50
