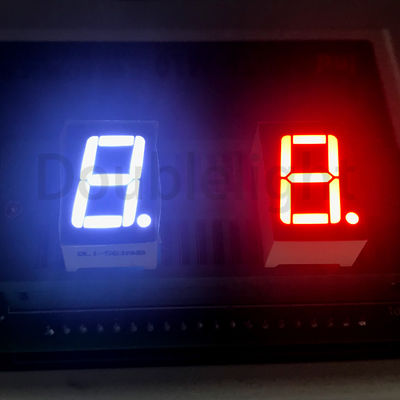

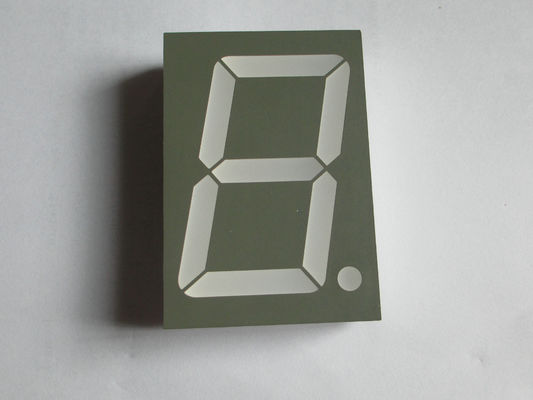

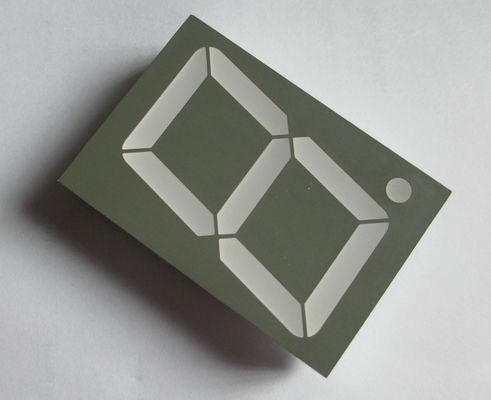

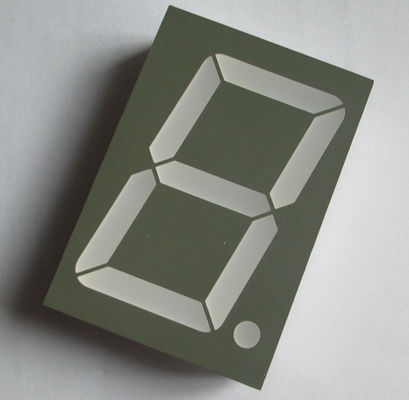

0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display

0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display

    • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
    • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
    • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
    • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
    • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
  • 0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL1-561XRB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 8,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 7 Segment LED Display Package: 0.56 Inch
    Emitted Color: Super Bright Red Peak Emission Wavelength: 660nm
    Chip Material: GaAlAs Face Color: Black Surface
    Forward Voltage @20ma: 1.8-2.4V Luminous Intensity: 3.5-6.0mcd
    Screen Dimension: 12.6*19*8mm Digit Height: 0.56 Inch



    0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display

     DL1-561XRB.pdf



    Features:

    1. 0.56″(inch) digit height.
    2. Excellent segment uniformity.
    3. Sold state reliability.
    4. Industrial standard size.
    5. Low power consumption.
    6. The product itself will remain within RoHS compliant Version.



    Descriptions:

    1. The DL1-561 series is a lager 14.20mm(0.56″) high seven segments display designed for viewing distances up to 7 meters.
    2. These displays provide excellent reliability in bright ambient light.
    3. These devices are made with white segments and black surface.



    Applications:

    1. Audio equipment.
    2. Instrument panels.
    3. Digital read out display.



    Device Selection Guide:

    Model No. Chip Material Source Color Description
    DL1-561ARB GaAlAs Super Bright Red Common Anode
    DL1-561CRB Super Bright Red Common Cathode




    Absolute Maximum Ratings at Ta=25℃





    Parameters Symbol Max. Unit
    Power Dissipation Per Segment PD 70 mW

    Peak Forward Current Per Segment

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Per Segment IF 25 mA
    Dating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity Iv 3.5 6.0 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
    Peak Emission Wavelength λp --- 660 --- nm IF=20mA
    Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF --- 1.80 2.40 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V




    Notes:

    Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



    7 Segment LED Display Package Dimension:

    0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display



    Company intorduction:

    HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

    0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display



    0.56 inch single digit 7 segment display Super Bright Red LED Display Digital Tube with 10 Pin 1 Bit led display
