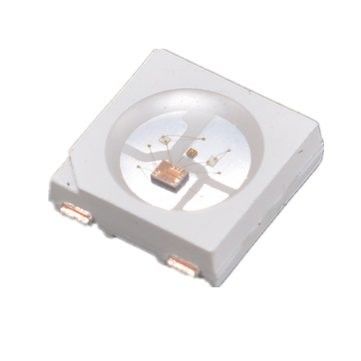

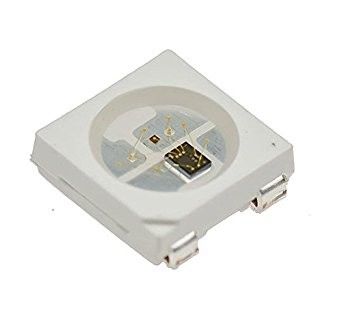

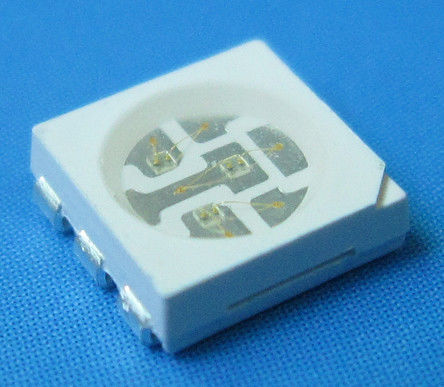

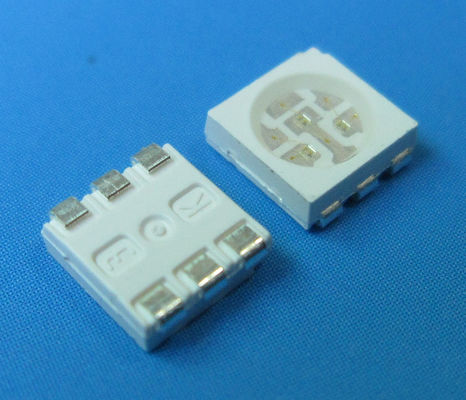

5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver

5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver

    • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver
    • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver
    • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver
    • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver
    • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver
  • 5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP5050RGBC-WS2811

    Payment & Shipping Terms:

    Minimum Order Quantity: 1,000pcs/Real
    Price: US$ 0.022-0.023. per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Full Color Chip LEDs Package: 5050
    Emitted Color: RGB Product Number: DL-TOP5050RGBC-WS2811
    Color Temperature: 625,470,520nm Luminous Intensity: R550-700mcd G1100-1400mcd B 200-400mcd
    Forward Voltage @20ma: R 1.8-2.2v G3.0-3.2 B3.2-3.4 Viewing Angle: 120 Deg
    Current: 20mA Chip Material: AlGaInP(Red), InGaN(Green/Blue)



    5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver



    DL-TOP5050RGBC-WS2811.pdf

    Features:

    1. Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
    2. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
    3. Built-in electric reset circuit and power lost reset circuit.
    4. Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
    5. Cascading port transmission signal by single line.
    6. Any two point the distance more than 5m transmission signal without any increase circuit.
    7. When the refresh rate is 30fps, low speed model cascade number are not less than 512 points, high speed mode not less than 1024 points.
    8. Send data at speeds of 800Kbps.
    9. The color of the light were highly consistent, cost-effective.



    Descriptions:

    1. Full-color module, Full color soft lights a lamp strip.
    2. LED decorative lighting, Indoor/outdoor LED video irregular screen.



    Applications:

    1. DL-TOP5050RGBC-WS2811 is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
    2. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. pixels adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
    3. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, and convenient installation.



    Package Dimension:

    5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver

    Part No. Chip Material Lens Color Source Color
    DL-TOP5050RGBC-WS2811 R AlGaInP Water Clear Hyper Red
    G InGaN Pure Green
    B InGaN Blue



    Notes:

    1. All dimensions are in millimeters (inches).
    2. Tolerance is ± 0.25mm (.010”) unless otherwise specified.
    3. Specifications are subject to change without notice.



    • PIN configuration

    5050 smd rgb led Tricolor 1.5mm top view Diode Lights Chips full Color Chip LEDs With Built-in WS2811 Driver

    PIN function



    No. Symbol Function description
    1 DOUT Control data signal output
    2 DIN Control data signal input
    3 VCC Power supply control circuit
    4 NC
    5 VDD Power supply LED
    6 VSS Ground



    • Absolute Maximum Ratings



    Parameters Symbol Ratings Unit
    Power supply voltage VCC +6.0~+7.0 V
    Power supply voltage VDD +6.0~+7.0 V
    Input voltage VI -0.5~VDD+0.5 V
    Operation junction temperature Topt -25~+80
    Storage temperature range Tstg -55~+150



    • Electrical Characteristics (TA=-20~+70℃,VDD=4.5~5.5V,VSS=0V,unless otherwise specified)
    Parameters Symbol Conditions Min Tpy Max Unit
    Low voltage output current IOL ROUT -- 18.5 -- mA
    Idout Vo=0.4V, DOUT 10 -- -- mA
    Input current II VI=VDD/VSS -- -- ±1 μA
    Input voltage level VIH DIN, SET 0.7VDD -- -- V
    VIL DIN, SET -- -- 0.3 VDD V
    Hysteresis voltage VH DIN, SET -- 0.35 -- V

    • Switching characteristics (TA=-20~+70℃,VDD=4.5~5.5V,VSS=0V,unless otherwise specified)
    Parameters Symbol Conditions Min Tpy Max Unit
    Operation frequency Fosc2 -- -- 800 -- KHz
    Transmission delay time tPLZ CL=15pF,DIN→ DOUT,RL=10KΩ -- -- 300 ns
    Fall time tTHZ CL=300pF,OUTR/OUTG/OUTB -- -- 120 μs
    Data transmission rate FMAX Duty ratio50% 400 -- -- Kbps
    Input capacity CI -- -- -- 15 pF



    • LED characteristic parameter



    Emitting color Wavelength(nm) Luminous intensity(mcd) Current(mA) Voltage(V)
    Red 620-630 550-700 20 1.8-2.2
    Green 515-530 1100-1400 20 3.0-3.2
    Blue 465-475 200-400 20 3.2-3.4

    • Data transfer time (TH+TL=1.25μs±600ns)
    T0H 0 code ,high voltage time 0.35us ±150ns
    T1H 1 code ,high voltage time 0.7us ±150ns
    T0L 0 code , low voltage time 0.8us ±150ns
    T1L 1 code ,low voltage time 0.6us ±150ns
    RES low voltage time Above 50μs
