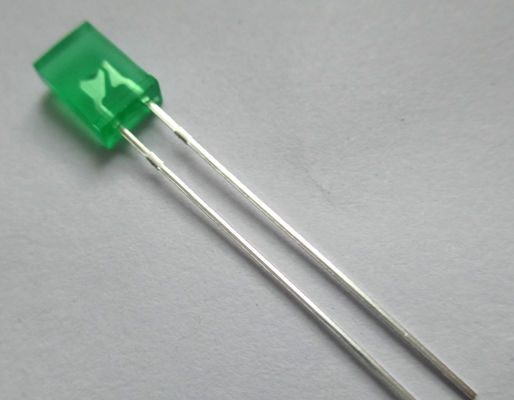

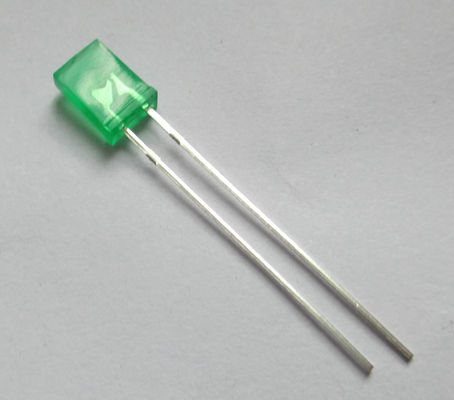

2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity

2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity

    • 2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity
    • 2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity
  • 2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-254SRDF-2SR120

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Price: US$ 0.01 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Indicators LED Package: 3mm DIP
    Emitted Color: Yellow Green Peak Emission Wavelength: 570-575nm
    Model Number: DL-254SRDF-2SR120 Body Color: Water Clear
    Forward Voltage @20ma: 1.9-2.1/2.8-3.0v Forward Current: 20mA
    Package Dimensions: 2.08*3.8mm



    2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity







    Features:

    1. 2×5mm Rectangular.
    2. Low power Consumption.
    3. Reliable and rugged.
    4. Excellent uniformity of light out.
    5. Suitable for level indicator.
    6. Long life-solid state reliability.
    7. The product itself will remain within RoHS compliant Version.

    Descriptions:

    1. The series is specially designed for applications requiring higher brightness.
    2. The LED lamps are available with different colors, intensities.



    Applications:

    1. TV set.
    2. Monitor.
    3. Telephone.
    4. Computer.
    5. Circuit board.
    Part No. Chip Material Lens Color Source Color
    DL-254SRDF-2SR120 GaAlAs water clear Yellow Green



    Package Dimension:

    2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity

    Notes:

    1. All dimensions are in millimeters (inches).
    2. Tolerance is ± 0.25mm (.010″) unless otherwise noted.
    3. Protruded resin under flange is 1.00mm (.039″) max.
    4. Specifications are subject to change without notice.
    • Absolute Maximum Ratings at Ta=25
    • Parameters Symbol Max. Unit
      Power Dissipation PD 60 mW

      Peak Forward Current

      (1/10 Duty Cycle, 0.1ms Pulse Width)

      IFP 100 mA
      Forward Current IF 25 mA
      Reverse Voltage VR 5 V
      Operating Temperature Range Topr -40℃ to +85℃
      Storage Temperature Range Tstg -40℃ to +100℃

      Lead Soldering Temperature

      [4mm (.157″) From Body]

      Tsld 260℃ for 5 Seconds

      Electrical Optical Characteristics at Ta=25

      Parameters Symbol Min. Typ. Max. Unit Test Condition
      Luminous Intensity * IV 30 50 --- mcd IF=20mA (Note 1)
      Viewing Angle * 1/2 --- 60 --- Deg IF=20mA (Note 2)
      Peak Emission Wavelength λp --- 570 --- nm IF=20mA
      Dominant Wavelength λd --- 572 --- nm IF=20mA (Note 3)
      Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
      Forward Voltage VF 1.80 2.20 2.80 V IF=20mA
      Reverse Current IR --- --- 10 µA VR=5V

      Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    • Typical Electrical / Optical Characteristics Curves
    • 2x5x7mm Rectangular led lamp Yellow Green led indicator lights for cars luminous intensity

    Why choose DOUBLE LIGHT?
    1. Well-known chip material
    2. 99.99% gold wire bonding
    3. 3 years warranty
    4. Over 10 years work experience technical service team
    5. 24 hours service Professional sales team
    6. Free Sample is available
    7. Fast delivery
    8.100% QC inspection Before Shippment
    9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
