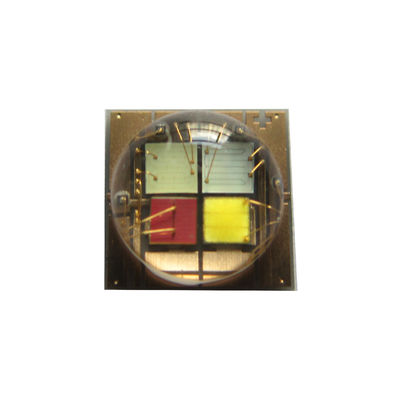

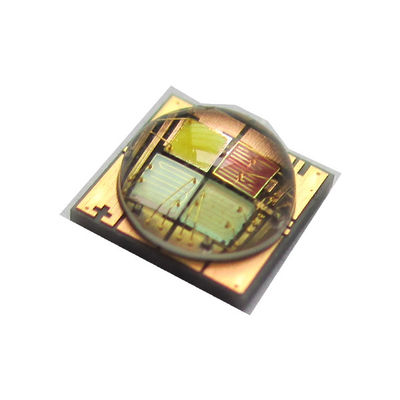

10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency

10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency

    • 10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency
    • 10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency
  • 10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: Double Light
    Certification: ISO9001:2008,Rosh
    Model Number: DL-PCB3535RGB-10W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Type: 3535 High-Powe RGBW LED Emitting Diodes Max. Reverse Voltage: 5V
    Light Color: Red Green Blue White Led Chips: Epistar Led Diodes
    Forward Voltage: 3.0-3.2V Luminous Flux: 120/240lm
    Forward Current: 350/700ma Electrostatic Discharge (HBM): 5000v

    DL-PCB3535RGBW-10W.pdf

    10W High Power 3535 RGBW LED
    Technical Data Sheet









    Features:

    1. Small package with high efficiency
    2. Long operating life.
    3. Available in white, green, blue, red, yellow, Amber
    4. View angle: 120°.
    5. Low voltage DC operated.
    6. The product itself will remain within RoHS compliant Version.
    7. ESD protection.



    Applications:

    1. Reading lights (car, bus, aircraft).
    2. Portable (flashlight, bicycle).
    3. Mini_accent/Uplighters/Downlighters/Orientation.
    4. Bollards/Security/Garden.
    5. Cove/Undershelf/Task.
    6. Automotive rear combination lamps.
    7. Traffic signaling/Beacons/ Rail crossing and Wayside.
    8. Indoor/Outdoor Commercial and Residential Architectural.
    9. Edge_lit signs (Exit, point of sale).
    10. LCD Backlights/Light Guides.



    Recommended Solder Pad Design

    10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency



    Mechanical Dimensions:



    10 Watt High Power 3535 Rgb SMD LED 3.0-3.2V With 120° View Angle , High Efficiency





    Part No. Chip Material Lens Color Source Color
    DL-PCB3535W InGaN Yellow Diffused

    White
