SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip

SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip

    • SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip
    • SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip
  • SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip

    Product Details:

    Place of Origin: China
    Brand Name: Double Light
    Certification: ISO9001:2008,Rosh
    Model Number: DL-PCB4836SIRC-2SIR60

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: USD 0.1-0.13/PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Infrared LED Light Components Power (mW): 200
    Emitted Color: Infrared LED Chip Material: GaAlAs
    Peak Emission Wavelength: 850nm Forward Voltage @20ma: 1.0-1.4V
    Viewing Angle: 60 Deg Radiant Intensity: 15mW/sr

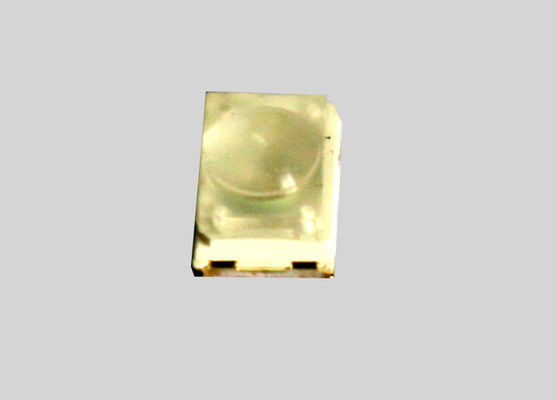

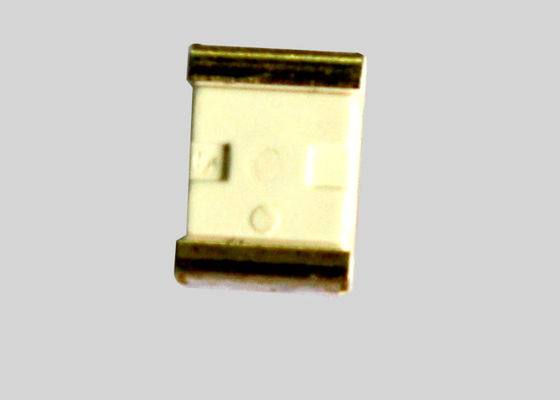

    SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip

    Infrared LED Light Components



     Features:

    1. Package in 12mm tape on 7" diameter reels.
    2. Compatible with automatic placement equipment.
    3. Compatible with infrared and vapor phase reflow solder process.
    4. High reliability.
    5. Low forward voltage.
    6. Mono-color type.
    7. The product itself will remain within RoHS compliant version.



    Descriptions:



    1. The device is an infrared emitting diode in miniature 4836SMD package which is molded in water clear plastic.
    2. The device is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
    3. The device is specially matched with photodiode, phototransistor and infrared receiver module.



    Applications:



    1. PCB mounted infrared sensor.
    2. Infrared emitting for miniature light barrier.
    3. Floppy disk drive.
    4. Optoelectronic switch.
    5. Smoke detector.



    Part No. Chip Material Lens Color Source Color
    DL-PCB4836SIRC-2SIR60 GaAlAs White Diffused Infrared















    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation PD 200 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 1.0 A
    Continuous Forward Current IF 150 mA
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Radiant Intensity (Note 1) * Ee 8 15 --- mW/sr IF=100mA
    Viewing Angle (Note 2) * 2θ1/2 --- 60 --- Deg IF=100mA
    Peak Emission Wavelength λp --- 850 --- nm IF=100mA
    Spectral Bandwidth △λ --- 45 --- nm IF=100mA
    Forward Voltage VF 1.40 1.45 1.85 V IF=100mA
    Reverse Current IR --- --- 10 µA VR=5V


    Notes:

    1. Luminous Radiant is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.







    Infrared LED Light Components Package Dimension:

    SMD Size 4.8x3.6mm LED Light Components Round Subminiature Package high power infrared led Chip
