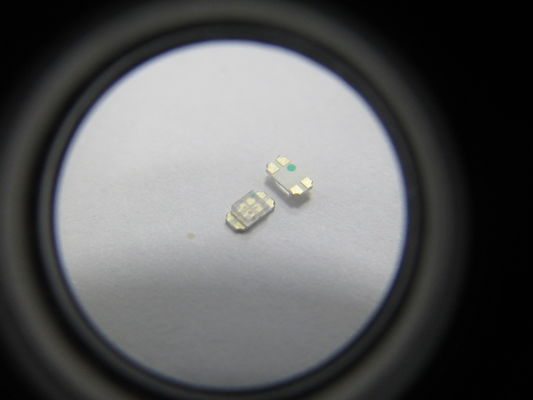

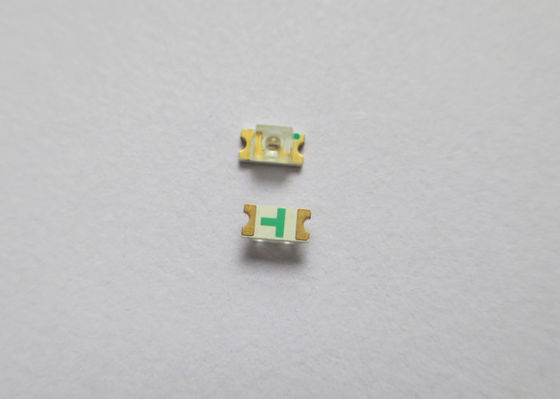

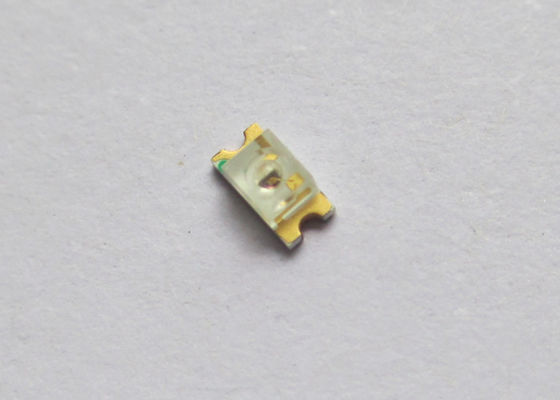

120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens

120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens

    • 120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens
    • 120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens
  • 120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens

    Product Details:

    Place of Origin: China
    Brand Name: Double Light
    Certification: ISO9001:2008,Rosh
    Model Number: DL-PCB1206TUGC-1UG60

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: USD 0.1-0.13/PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: LED Light Components Power (W): 0.06
    Emitted Color: Yellow Green Chip Material: GaP
    Peak Emission Wavelength: 572nm Forward Voltage @20ma: 2.0-2.4V
    Viewing Angle: 120 Deg Luminous Flux: 30mcd

    120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens



    Yellow Green LED Light Components



     Features:

    ◇ Low power consumption.
    ◇ High efficiency and low cost.
    ◇ Good control and free combinations on the colors of LED lamps.
    ◇ Good lock and easy to assembly.
    ◇ Stackable and easy to assembly.
    ◇ Stackable vertically and easy to assembly.
    ◇ Versatile mounting on P.C board or panel.
    ◇ Stackable horizontally and easy to assembly.
    ◇ The product itself will remain within RoHS compliant version.
    ◇ ARRAY=Plastic Holder + Combinations of Lamps.
    ◇ The array will easily mount be applicable on any panel up to.
    ◇ Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.



    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 400 V
    Operating Temperature Range Topr -40℃ to +85℃
    Storage Temperature Range Tstg -40℃ to +100℃

    Lead Soldering Temperature

    [4mm (.157″) From Body]

    Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 120 200 --- mcd IF=20mA (Note 1)
    Viewing Angle * 1/2 --- 60 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 468 --- nm IF=20mA
    Dominant Wavelength λd --- 470 --- nm IF=20mA (Note 3)
    Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
    Forward Voltage VF 2.80 3.40 3.80 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V




    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.

    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



    Yellow Green LED Light Components Package Dimension:

    120 Deg Super Yellow Green GaP led chip size 1206 Package With Inner Lens
