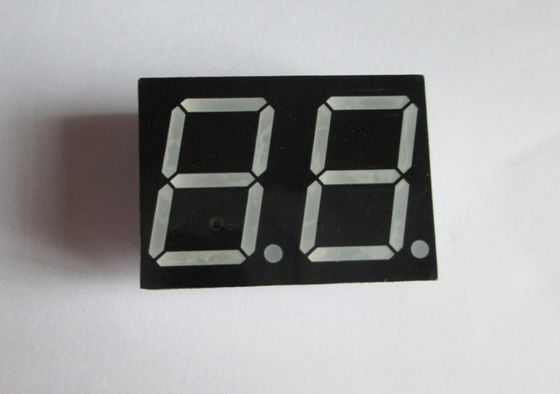

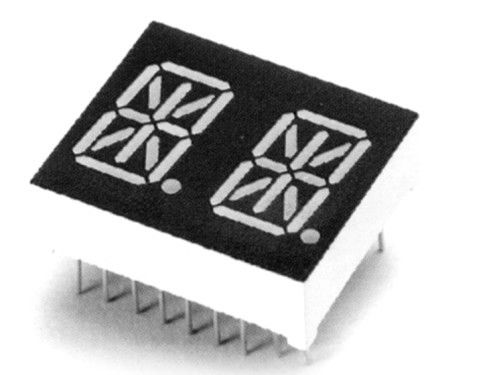

Detailed Product Description
Product Name: Alphanumeric Displays Package: 0.50 Inch Display
Emitted Color: Super Bright Red Peak Emission Wavelength: 660nm
Chip Material: GaAlAs Face Color: Black Surface
Forward Voltage @20ma: 1.8-2.4v Luminous Intensity: 5-7mcd
High Light:

3 digit 7 segment led display

,

led bar display

0.5 inch 2 alphanumeric led display Super Bright Red Digit led display segment digital read out common anode cathode

DLA2-541XRB.pdf



Features:

  1. 0.54″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The DLA2-541XRB series is a lager 13.60mm (0.54") high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.


Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.


Device Selection Guide:



Model No.Chip MaterialSource ColorDescription
DLA2-541ARBGaAlAsSuper Bright RedCommon Anode
DLA2-541CRBSuper Bright RedCommon Cathode


Triple Digit Alphanumeric Displays Absolute Maximum Ratings at Ta=25℃


ParametersSymbolMax.Unit
Power Dissipation Per SegmentPD60mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward Current Per SegmentIF25mA
Dating Linear From 50℃ 0.4mA/℃
Reverse VoltageVR5V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds

Triple Digit Alphanumeric Displays Electrical Optical Characteristics at Ta=25℃
ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous IntensityIv2.04.0---mcdIF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)Iv-m------2:1 IF=10mA
Peak Emission Wavelengthλp---660---nmIF=20mA
Dominant Wavelengthλd---640---nmIF=20mA (Note 2)
Spectral Line Half-Width△λ---20---nmIF=20mA
Forward VoltageVF---1.802.40VIF=20mA
Reverse CurrentIR------50µAVR=5V



Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
  • Package Dimension:

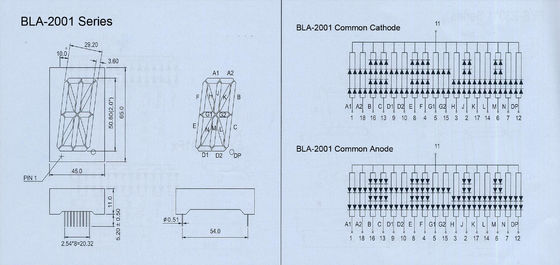

0.5 inch 2 alphanumeric led display Super Bright Red Digit  led display segment digital read out common anode cathode 0
Triple Digit Alphanumeric Displays Package Dimension:

0.5 inch 2 alphanumeric led display Super Bright Red Digit  led display segment digital read out common anode cathode 1



DLA3-501ARB





0.5 inch 2 alphanumeric led display Super Bright Red Digit  led display segment digital read out common anode cathode 2

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
0.5 inch 2 alphanumeric led display Super Bright Red Digit  led display segment digital read out common anode cathode 3
