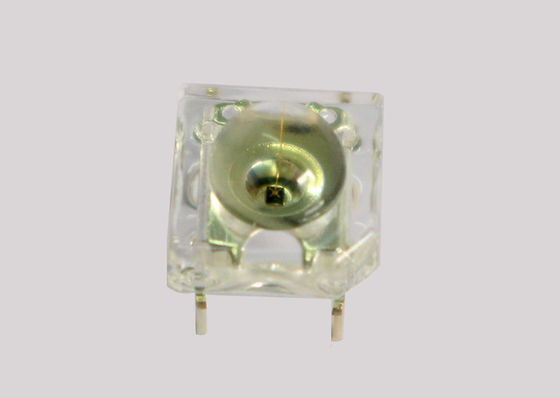

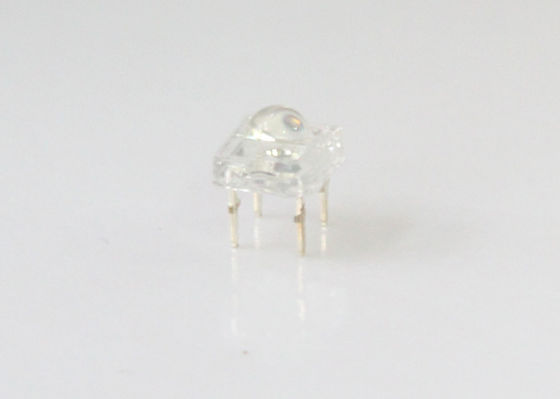

Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED

Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED

    • Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED
    • Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED
  • Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-U30UYCA-2UY70

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$ 0.03-0.033per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Led Light Emitting Diode Package: 3mm
    Emitted Color: Super Yellow Peak Emission Wavelength: 590nm
    Chip Material: AlGaInP Lens Type: Water Clear
    Forward Voltage @20ma: 1.8-2.0v Luminous Intensity: 8000-12000mcd
    Viewing Angle: 70 Deg

    Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED





    LED Light Emitting Diode



    1. Features:
    1. Automotive exterior lighting.
    2. Electronic signs and signals.
    3. Special lighting application.
    4.

    5. Applications:
    6. This revolutionary package design allows the light designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions.
    7. The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired light appearance.
    8.

    9. Descriptions:
    10. Fewer LEDs required.
    11. Low profile.
    12. Lowers lighting system cost.
    13. Super flux output.
    14. Viewing angle=70°.
    15. The product itself will remain within RoHS compliant Version.
    Part No. Chip Material Lens Color Source Color
    DL-U30UYCA-2UY70 AlGaInP Water Clear Super Yellow











    1. Absolute Maximum Ratings at Ta=25℃





    Parameters Symbol Max. Unit
    Power Dissipation PD 82 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 70 mA
    Forward Current IF 50 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 2000 V
    Operating Temperature Range Topr -40℃ to +85℃
    Storage Temperature Range Tstg -40℃ to +100℃
    Lead Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 1000 1500 --- mcd IF=20mA (Note 1)
    Viewing Angle * 1/2 --- 70 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 592 --- nm IF=20mA
    Dominant Wavelength λd --- 590 --- nm IF=20mA (Note 3)
    Spectrum Radiation Bandwidth Δλ --- 15 --- nm IF=20mA
    Forward Voltage VF 1.80 2.20 ---- V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V


    Notes:

    Luminous Intensity (Flux) is measured with a light sensor and filter combination that approximates the CIE eye-response curve. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



    1. Package Dimension:

    Square Led Light Emitting Diode With 3Ф Dome 4 Lead Pin Super Yellow LED
