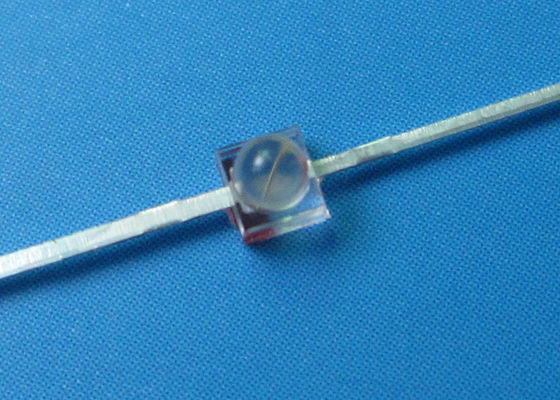

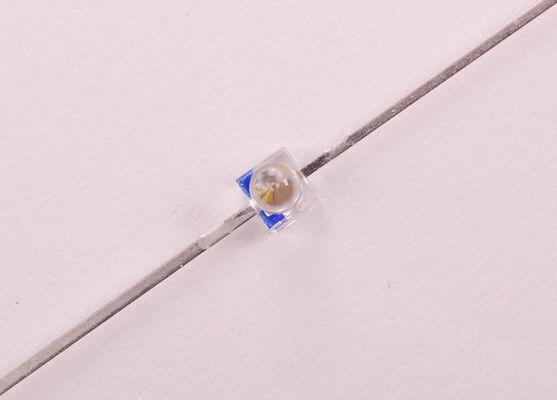

1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes

1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes

    • 1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes
    • 1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes
  • 1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-R18W80Y-1W30-TR2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$ 0.03-0.033per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1.8mm Chip LED Package: 1.8mm
    Emitted Color: White Peak Emission Wavelength: 6500k
    Chip Material: InGaN Lens Type: Yellow Diffused
    Forward Voltage @20ma: 2.8-3.0v Luminous Intensity: 1000-2000mcd
    Viewing Angle: 20 Deg

    1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes





    Features:

    1. 2.15×2.40mm with 1.80mm lens.
    2. Small double-end package.
    3. EIA Std. package.
    4. Mono-color type.
    5. High reliability.
    6. Low forward voltage.
    7. Compatible with automatic placement equipment.
    8. The product itself will remain within RoHS compliant version.



    Descriptions:

    1. The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
    2. Besides, light weight makes them ideal for miniature applications.
    3. Furthermore by automation assembly machines the accuracy is anticipated.



    Applications:

    1. Small indicator for indoor applications.
    2. Flat backlight for LCD, switches and symbols.
    3. Indicator and backlight in office equipment.
    4. Indicator and backlight for battery driven equipment.
    5. Indicator and backlight for audio and video equipment.
    6. Automotive: Backlighting in dashboards and switches.
    7. Telecommunication: Indicator and backlighting in telephone and fax.



    Part No. Chip Material Lens Color Source Color
    DL-R18W80Y-1W30-TR2 InGaN Yellow Diffused White











    1. Absolute Maximum Ratings at Ta=25℃



    Parameters Symbol Max Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 400 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 1500 3000 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 30 --- Deg IF=20mA (Note 2)
    Chromaticity Coordinates x --- 0.30 ---   IF=20mA (Note 3)
    y --- 0.31 ---
    Forward Voltage VF 3.00 3.30 4.00 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V




    Notes:

    Luminous Intensity Measurement allowance is ± 10%. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
    Package Dimension:
    1.8mm 1.8v Led Through Hole led light components parts Flashing Light Emitting Diodes
