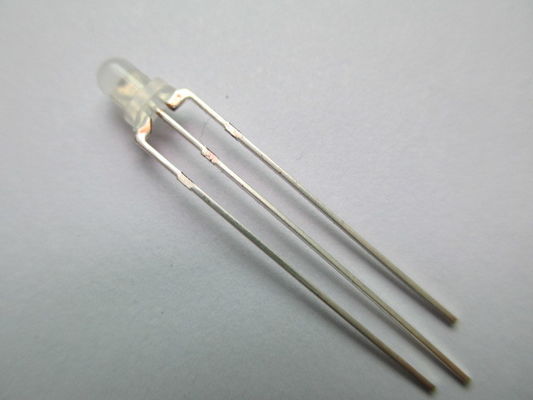

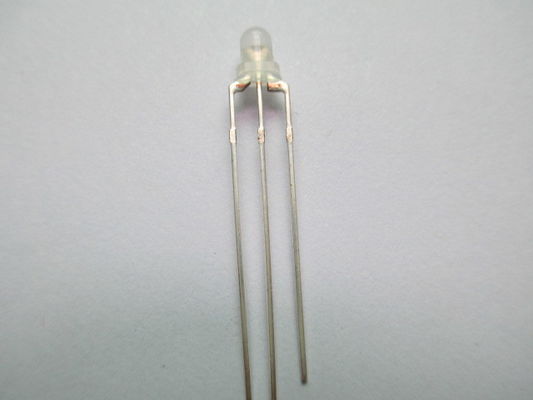

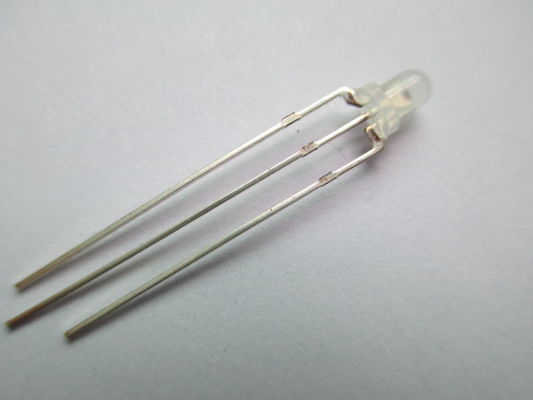

Low power Bi Color LED 3mm With Common Cathode dual color led

Low power Bi Color LED 3mm With Common Cathode dual color led

    • Low power Bi Color LED 3mm With Common Cathode dual color led
    • Low power Bi Color LED 3mm With Common Cathode dual color led
    • Low power Bi Color LED 3mm With Common Cathode dual color led
  • Low power Bi Color LED 3mm With Common Cathode dual color led

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-309SRGMA-1SR-2G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: US$ 0.0165-0.021 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 3mm Bi-Color LEDs Package: DIP 3MM
    Emitted Color: Hyper Red & Yellow Green Peak Emission Wavelength: 635nm & 575nm
    Chip Material: AlGaInP & GaP Lens Type: Water Clear
    Forward Voltage @20ma: Typ:2.0/2.2v Viewing Angle: 30-120 Deg

    Low power Bi Color LED 3mm With Common Cathode dual color led

    • Features:
    • Standard T-1 type package.
    • Hyper Red and Yellow Green chips are matched for uniform light output.
    • Common Cathode.
    • Long life solid state reliability.
    • Low power consumption.
    • I.C. compatible.
    • The product itself will remain within RoHS complaint Version.



    • Descriptions:
    • The lamp contain two integral chips and is available bicolor.
    • The Hyper Red and Yellow Green light is emitted by diodes of AlGaInP and GaP respectively.
    • White Diffused lens color.



    • Applications:
    • TV set.
    • Monitor.
    • Telephone.
    • Computer.
    • Circuit board.

     Package Dimension:

    Low power Bi Color LED 3mm With Common Cathode dual color led



    Part No. Chip Material Lens Color Source Color
    DL-309SRGMA-1SR-2G R GaAlAs Water Clear

    Hyper

     Red
    G GaP Yellow Green





















    • Absolute Maximum Ratings at Ta=25
    Parameters Symbol Max. Unit
    Power Dissipation Hyper Red PD 65 mW
    Yellow Green 78

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Hyper Red IF 25 mA
    Yellow Green IF 30 mA
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +85℃
    Storage Temperature Range Tstg -40℃ to +100℃

    Lead Soldering Temperature

    [4mm (.157″) From Body]

    Tsld 260℃ for 5 Seconds







    Electrical Optical Characteristics at Ta=25

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV Hyper Red 20 50 --- mcd IF=20mA
    Yellow Green 50 100 ---
    Viewing Angle 1/2 Hyper Red --- 60 --- Deg IF=20mA
    Yellow Green --- 60 ---
    Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
    Yellow Green --- 565 ---
    Dominant Wavelength λd Hyper Red --- 624 --- nm IF=20mA
    Yellow Green --- 570 ---
    Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
    Yellow Green -- 30 ---
    Forward Voltage VF Hyper Red 1.80 2.20 2.80 V IF=20mA
    Yellow Green 1.80 2.20 2.80
    Reverse Current IR Hyper Red --- --- 10 µA VR=5V
    Yellow Green



    Notes:

    • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    • Typical Electrical / Optical Characteristics Curves
    • (25℃ Ambient Temperature Unless Otherwise Noted)

      Hyper Red:Low power Bi Color LED 3mm With Common Cathode dual color ledYellow Green:Low power Bi Color LED 3mm With Common Cathode dual color led

    • Reliability Test Items And Conditions:
    • The reliability of products shall be satisfied with items listed below:

      Confidence level: 90%. LTPD: 10%.

      1) Test Items and Results:

      Test Item Standard Test Method Test Conditions Note Number of Damaged
      Resistance to Soldering Heat

      JEITA ED-4701

      300 302

      Tsld=260±5℃, 10sec 3mm from the base of the epoxy bulb 1 time 0/100
      Solder ability

      JEITA ED-4701

      300 303

      Tsld=235±5℃, 5sec

      (using flux)

      1time

      over 95%

      0/100
      Thermal Shock

      JEITA ED-4701

      300 307

      0℃~100℃ 15sec, 15sec 100 cycles 0/100
      Temperature Cycle

      JEITA ED-4701

      100 105

      -40℃~25℃~100℃~25℃ 30min,5min,30min,5min 100 cycles 0/100
      Moisture Resistance Cycle

      JEITA ED-4701

      200 203

      25℃~65℃~-10℃ 90%RH 24hrs/1cycle 10 cycles 0/100
      High Temperature Storage

      JEITA ED-4701

      200 201

      Ta=100℃ 1000hrs 0/100

      Terminal Strength

      (Pull test)

      JEITA ED-4701

      400 401

      Load 10N (1kgf)

      10±1sec

      No noticeable damage 0/100
      Terminal Strength (bending test)

      JEITA ED-4701

      400 401

      Load 5N (0.5kgf)

      0°~90°~0° bend 2 times

      No noticeable damage 0/100
      Temperature Humidity Storage

      JEITA ED-4701

      100 103

      Ta=60℃, RH=90% 1000hrs 0/100
      Low Temperature Storage

      JEITA ED-4701

      200 202

      Ta=-40℃ 1000hrs 0/100
      Steady State Operating Life   Ta=25℃, IF=20mA 1000hrs 0/100
      Steady State Operating Life of High Humidity Heat   Ta=60℃, RH=90%, IF=20mA 500hrs 0/100
      Steady State Operating Life of Low Temperature   Ta=-30℃, IF=30mA 1000hrs 0/100



      2) Criteria for Judging the Damage:

      Item Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7 ---

      *) F.V.: First Value.



    • Please read the following notes before using the product:
    • 1. Over-current-proof

      Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

      2. Storage

      2.1 Do not open moisture proof bag before the products are ready to use.

      2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

      2.3 The LEDs should be used within a year.

      2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

      2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

      3. Soldering Iron

      Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

      4. Repairing

      Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
