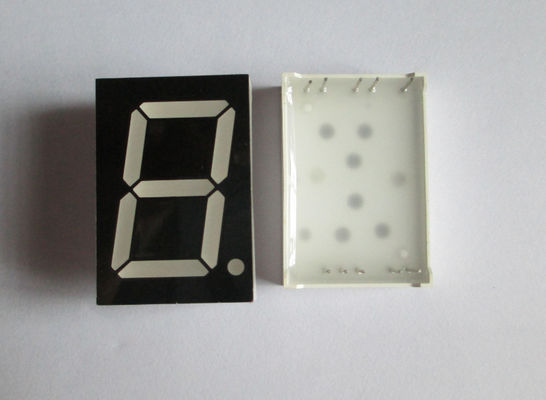

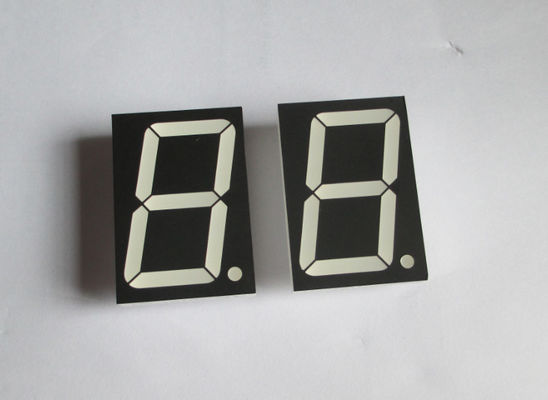

High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display

China High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier

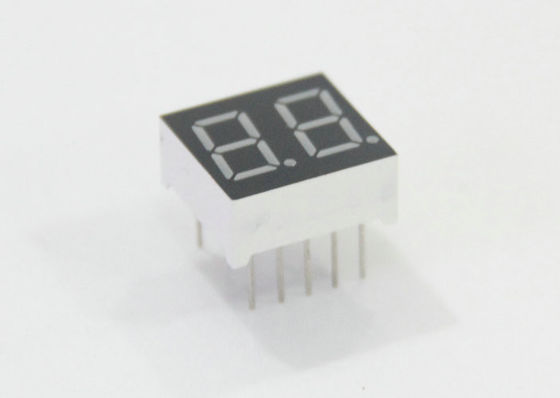

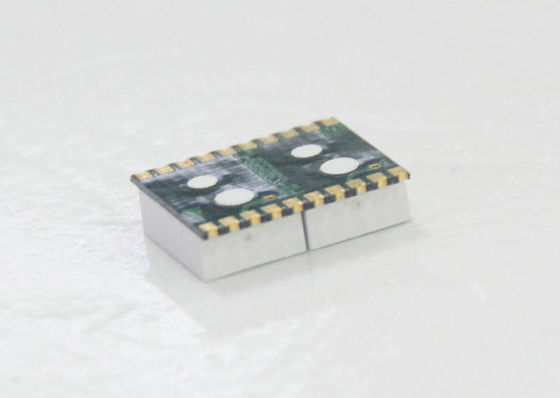

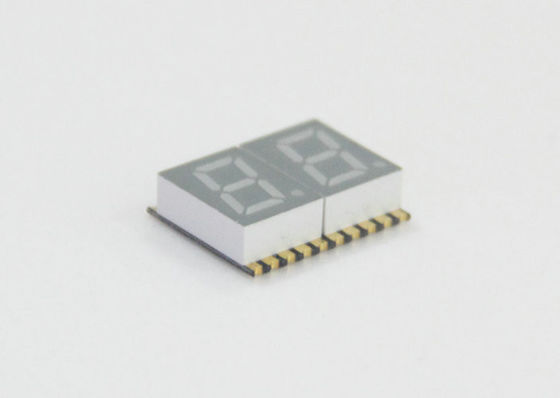

High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display supplier

Large Image :  High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL1-1001XUYB

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 8,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 7 Segment LED Display Package: 1.0 Inch
Emitted Color: Yellow Peak Emission Wavelength: 590nm
Chip Material: Gap Face Color: Black Surface
Description: Common Anode Test Condition: IF=20mA
High Light:

led seven segment display

,

brightest smd led chip

High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display





single digit led display
1. For led Display OEM
Usually, we make samples free for customers, while customers afford shipping charge of samples. If sample of led digit diaplay need new mold, customers will afford the mold charge.
2. For led Display ODM
We have the design and technician team to develop products according to customers demand. We provide with various led digit diaplay
packaging and color formulation.


  1. Features:
  1. 1.0″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.



  1. Descriptions:
  1. The DL1-1001XUYB series is a lager 25.4mm(1.0") high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



  1. Applications:
  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.



Device Selection Guide:


Model No. Chip Material Source Color Description
DL1-1001AUYB GaAlAs Yellow  Common Anode
DL1-1001CUYB Yellow  Common Cathode




  1. Absolute Maximum Ratings at Ta=25℃
  1. Parameters Symbol Max. Unit
    Power Dissipation (Per Segment) PD 168 mW

    Peak Forward Current (Per Segment)
    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current (Per Segment) IF 30 mA
    Dating Linear From 25℃   0.25 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds



    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV 4 8 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
    Peak Emission Wavelength λp --- 592 --- nm IF=20mA
    Dominant Wavelength λd --- 590 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
    Forward Voltage VF --- 6.5 7.5 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V



    Notes:

  2. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

single digit led display Package Dimension:
High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display 0



             DL1-1001AUYB





High Brightness Single Digit 7 Segment LED Displays1 Digit led numeric display 1
