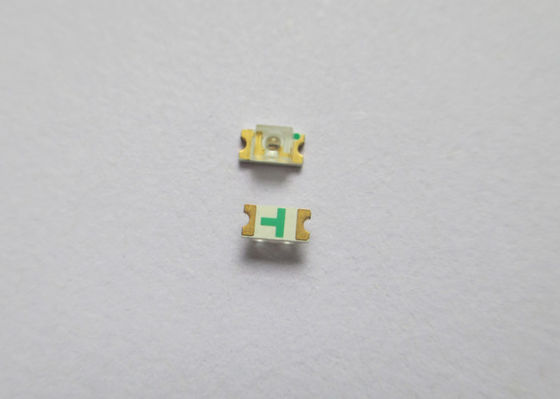

Automotive Backlighting smd led 1206 For Blue 1.10mm Height 350Mcd

Automotive Backlighting smd led 1206 For Blue 1.10mm Height 350Mcd

    • Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd
    • Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd
  • Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-PCB1206BC-1B120

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000pcs
    Price: US$ 0.01 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description

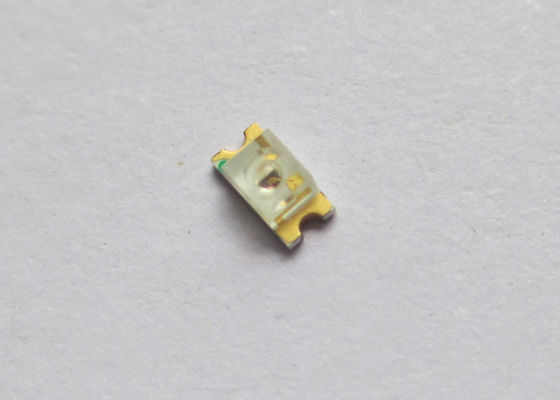

    Product Name: 1206 SMD Chip Led Blue Packag: 1206 Blue
    Model Number: DL-PCB1206BC-1B120 Peak Emission Wavelength: 460nm-470nm
    VF: 2.8V-3.0V Luminous Flux(lm): 450-500Mcd

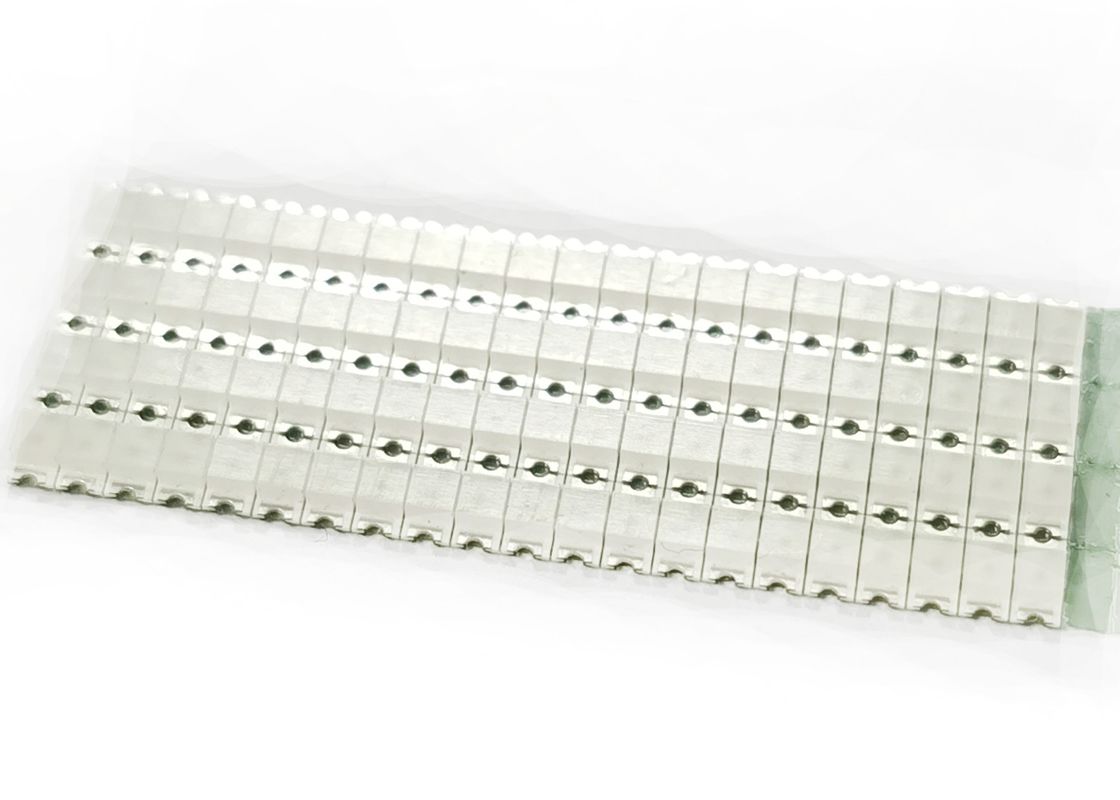

    Size: 3.2mm*1.5mm*1.1mm Loaded Quantity /Reel: 3000pcs
    Emitting Color: Blue Power: 0.06W
    Storage Temperature(℃): -40℃ To +80℃

    1206 SMD LED For Blue 1.10mm Height 350Mcd Automotive: Backlighting in dashboards,Backlighting LED Lamp



    1. More than 10 years experience in LED industrial.
    2. Biggest LED manufacturer by shipment in China,Asia.
    3. Have cooperated with such big companies as Samsung,Xiaomi,etc.
    4. High quality compliance with the international standard,pass CE, FCC, REACH, RoHS, UL.
    5. The most important thing is that our price is more competitive with our high quality.



    Package Dimension:



    Part No. Chip Material Lens Color Source Color
    DL-PCB1206BC-1B120

    InGaN

    Water Clear Blue













    •
    • Features:
    • Package in 8mm tape on 7″ diameter reel.
    • Compatible with automatic placement equipment.
    • Compatible with infrared and vapor phase reflow solder process.
    • Mono-color type.
    • The product itself will remain within RoHS compliant version.



    • Descriptions:
    • The 1206 SMD LED is much smaller than lead frame type Components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    • Besides, lightweight makes them ideal for miniature applications, etc.



    • Applications:
    • Automotive: Backlighting in dashboard and switch.
    • Telecommunication: Indicator and backlighting in telephone and fax.
    • Flat backlight for LCD, switch and symbol.
    • General use.
    • Package Dimension:Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd
    • Absolute Maximum Ratings at Ta=25
    • Parameters Symbol Max. Unit
      Power Dissipation PD 95 mW

      Peak Forward Current

      (1/10 Duty Cycle, 0.1ms Pulse Width)

      IFP 100 mA
      Continuous Forward Current IF 25 mA
      Reverse Voltage VR 5 V
      Electrostatic Discharge ESD 1000 V
      Operating Temperature Range Topr -40℃ to +80℃
      Storage Temperature Range Tstg -40℃ to +85℃
      Soldering Temperature Tsld 260℃ for 5 Seconds

      Electrical Optical Characteristics at Ta=25

      Parameters Symbol Min. Typ. Max. Unit Test Condition
      Luminous Intensity * IV 20 40 --- mcd IF=5mA (Note 1)
      60 100 --- IF=20mA (Note 1)
      Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
      Peak Emission Wavelength λp --- 468 --- nm IF=20mA
      Dominant Wavelength λd --- 470 --- nm IF=20mA (Note 3)
      Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
      Forward Voltage VF 2.80 3.30 3.80 V IF=20mA
      Reverse Current IR --- --- 10 µA VR=5V



      Notes:

    • Luminous Intensity Measurement allowance is ± 10%.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    • Typical Electrical / Optical Characteristics Curves
    • (25℃ Ambient Temperature Unless Otherwise Noted)Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd

    • Reliability Test Items And Conditions:
    • The reliability of products shall be satisfied with items listed below:

      Confidence level: 90%.

      LTPD: 10%.

      1) Test Items and Results:

      No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
      1 Resistance to Soldering Heat 6 Min

      Tsld=260±5℃,

      Min. 5sec

      25pcs 0/1
      2 Thermal Shock 300 Cycles

      H: +100℃ 5min ∫ 10 sec

      L: -10℃ 5min

      25pcs 0/1
      3 Temperature Cycle 300 Cycles

      H: +100℃ 15min ∫ 5min

      L: -40℃ 15min

      25pcs 0/1
      4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
      5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
      6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
      7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



      2) Criteria for Judging the Damage:

      Item Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7 ---






    • Reel Dimensions:

     Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd

    Carrier Tape Dimensions:

    Loaded quantity 3000 PCS Per reel.

    Automotive Backlighting smd led 1206 For  Blue 1.10mm Height 350Mcd

    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.











    Contact Details
    HongKong Double Light Electronics Technology Co. Ltd

    Contact Person: Tanky

    Tel: +8613750005407

    Send your inquiry directly to us (0 / 3000)
