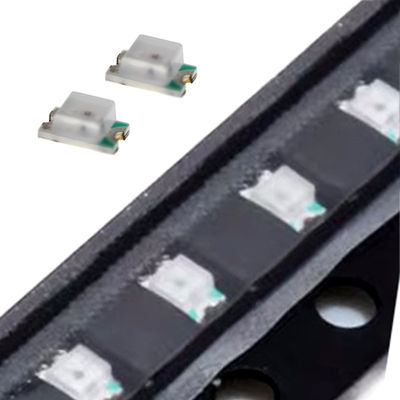

LED lighting fixtures SMD Chip LED SMD 0805 for Red 620-360nm 20mA 150MCD

LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD
LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD

Large Image :  LED lighting fixtures SMD Chip LED SMD 0805 for Red 620-360nm 20mA 150MCD

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0805SRC-1SR120
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Price: US$ 0.016-0.03 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 0805 Red SMD LED Package: 0805 Packag
Model Number: DL-PCB0805SRC-1SR120 Peak Emission Wavelength: 620-630
Emitting Color: Red Size: 2.0mm*1.25mm*1.1mm
Max. Forward Voltage: 2.4V Luminous Flux(lm): 150-250Mcd
High Light:

high power smd led

,

led smd rgb

LED lighting fixtures SMD Chip LED SMD 0805 for Red 620-360nm 20mA 150MCD



1. More than 10 years experience in LED industrial.
2. Biggest LED manufacturer by shipment in China,Asia.
3. Have cooperated with such big companies as Samsung,Xiaomi,etc.
4. High quality compliance with the international standard,pass CE, FCC, REACH, RoHS, UL.
5. The most important thing is that our price is more competitive with our high quality.



Package Dimension:



Part No. Chip Material Lens Color Source Color
DL-PCB0805SRC-1SR120

InGaN

Water Clear RED















  • Features:
  • Package in 8mm tape on 7” diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • The product itself will remain within RoHS compliant Version.



  • Descriptions:
  • The BL-PCB0805SRC-1SR120 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing. Density, reduced storage space and finally smaller equipment to be obtained.
  • Besides, lightweight makes them ideal for miniature applications, etc.



  • Applications:
  • Automotive: Backlighting in dashboard and switch.
  • Telecommunication: Indicator and backlighting in telephone and fax.
  • Flat backlight for LCD, switch and symbol.
  • General use.



  • solute Maximum Ratings at Ta=25
Parameters Symbol Max. Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 50 80 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 632 --- nm IF=20mA
Dominant Wavelength λd --- 624 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF 2.00 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



  • Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD 0

  • Package Dimension:LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD 1
  • Reliability Test Items and Conditions:
  • The reliability of products shall be satisfied with items listed below:

    Confidence level: 90%.

    LTPD: 10%.

    1) Test Items and Results:

    No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
    1 Resistance to Soldering Heat 6 Min

    Tsld=260±5℃,

    Min. 5sec

    25pcs 0/1
    2 Thermal Shock 300 Cycles

    H: +100℃ 5min ∫ 10 sec

    L: -10℃ 5min

    25pcs 0/1
    3 Temperature Cycle 300 Cycles

    H: +100℃ 15min ∫ 5min

    L: -40℃ 15min

    25pcs 0/1
    4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
    5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
    6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
    7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



    2) Criteria for Judging the Damage:

    Item Symbol Test Conditions Criteria for Judgment
    Min Max
    Forward Voltage VF IF=20mA --- F.V.*)×1.1
    Reverse Current IR VR=5V --- F.V.*)×2.0
    Luminous Intensity IV IF=20mA F.V.*)×0.7 ---



  • Reel Dimensions:
  • LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD 2
  • Carrier Tape Dimensions:

Loaded quantity 3000 PCS Per reel.LED lighting fixtures SMD Chip LED SMD  0805 for Red 620-360nm 20mA  150MCD 3

Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
