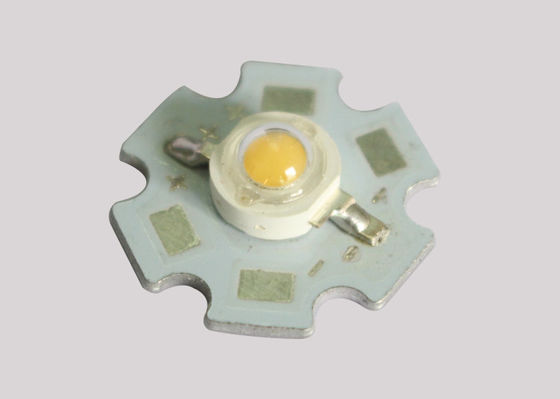

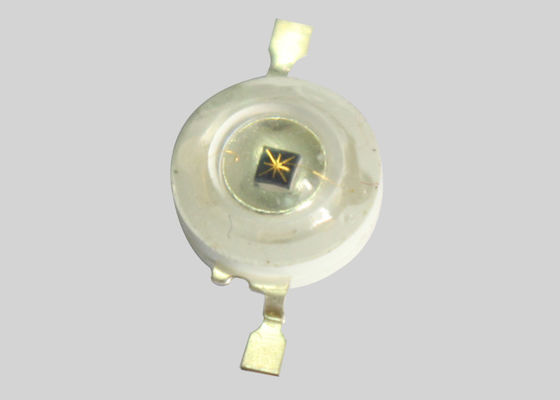

1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp

1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp
1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp 1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp 1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp

Large Image :  1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp

Product Details:
Place of Origin: China
Brand Name: Double LIGHT
Certification: ISO9001:2008,Rosh
Model Number: DL-HP10UYC-1WA
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Yellow Color LED Emitted Color: Yellow
Test Condition: IF=350ma Viewing Angle: 120 Deg
Luminous Flux: 55lm Forward Voltage: 1.8-2.6v
Chip Material: AllnGaP Peak Emission Wavelength: 590nm
High Light:

high power led chip

,

led light components parts

1W Epistar chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp



1W High Power Yellow Color LED



1W yellow 120 degree LED
1. 40-50lm Luminous Flux
2. 2.2-2.8V voltage
3. 400mA current
4. energy conservation

High energy conservation 1W 40-50lm luminous yellow LED 400mA forward current,2.2-2.8V forward voltage

Model :SP1WY

Suitable for re-flow soldering technique

Power consumption:1W

Light color:yellow

lumious flux:40-50lm

forward current:400mA

forward voltage:2.2-2.8V

high brightness,energy conservation,environmental protection

Applications:
Street lamps, spotlights, architectural lighting landscapes, lighting exterior illumination and so on
Wall lamps, underwater lamps, decorative illumination and so on
Underground lamps, reading lamps, emergency lights and interior illumination
Miners lamps, flashlights and car lamps
Traffic signals, indicating lamps

Export market : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Rating Units
Forward Current IF 350 mA
PeakPulseCurrent (tp≤100μs, Duty cycle=0.25) I pulse 500 mA
Reverse Voltage VR 5 V
LED Junction Temperature Tj 125
Operating Temperature Range Topr -40 to +80
Storage Temperature Range Tstg -40 to +100
Soldering Time at 260 ℃ (Max.) Tsol 5 Seconds


Notes:

1. Proper current derating must be observed to maintain junction temperature below the maximum.

2. LEDs are not designed to be driven in reserve bias.



Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Viewing Angle [1] 1/2 --- 140 -- Deg IF=350mA
Forward Voltage [2] VF 2.0 2.30 3.00 V IF=350mA
Reverse Current IR --- --- 10 µA VR=5V
Peak Emission Wavelength λp --- 592 --- nm IF=350mA
Dominant Wavelength λd --- 589 --- nm IF =350mA
Spectrum Radiation Bandwidth Δλ --- 16 --- nm IF=350mA
Luminous Flux Фv 40 55 --- lm IF=350mA


Notes:

1. 2θ1/2 is the off axis angle from lamp centerline where the luminous intensity is 1/2 of the peak value. 2. Forward Voltage measurement tolerance: ±0.1V




High Power  LED Package Dimension:

1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp 0

1W Epistar led chip High Power Yellow LED Light Components 50-63lm High Lumen Led Lamp 1
