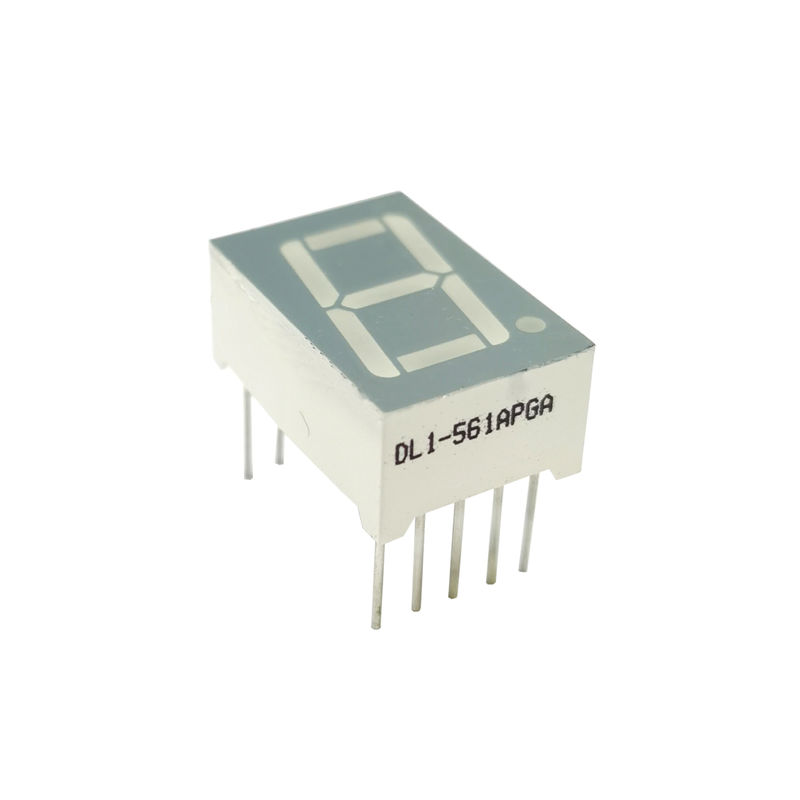

Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays

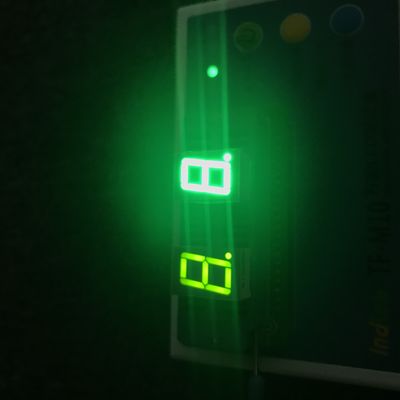

Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays

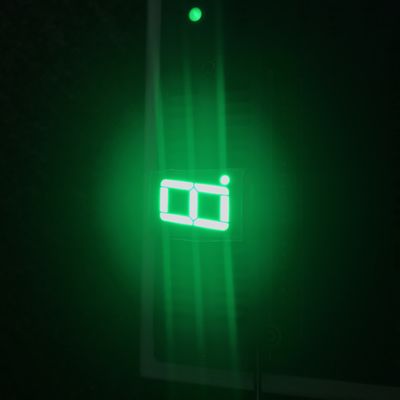

Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays

Large Image :  Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL1-561APGA

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiated
Packaging Details: Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Delivery Time: 15 working days after received your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 8,000,000pcs per Day
Detailed Product Description
Product Name: LED Digital Display Package: Single Digit Numeric Displays
Source Color: Pure Green Face Color: Ashy Surface
Peak Emission Wavelength: 518nm Reverse Voltage: 5V
High Light:

InGaN 7 Segment LED Displays

,

518nm 7 Segment LED Displays

,

Ashy Surface Seven Segment Display

0.56" Single Digit Numeric Displays Pure Green

Features:
1. 0.56″(inch) digit height.
2. Excellent segment uniformity.
3. Sold state reliability.
4. Industrial standard size.
5. Low power consumption.
6. The product itself will remain within RoHS compliant Version.


Descriptions:
1. The DL1-561XXX series is a lager 14.20mm(0.56″) high seven segments display designed forviewing
distances up to 7 meters.
2. These displays provide excellent reliability in bright ambient light.
3. These devices are made with white segments and ashy surface.


Applications:
1. Audio equipment.
2. Instrument panels.
3. Digital read out display.



Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-561APGA InGaN Pure Green Common Anode
DL1-561CPGA Pure Green Common Cathode



Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays 0

Absolute Maximum Ratings at Ta=25℃



Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 95 mW
Peak Forward Current (Per Segment)
(1/10 Duty Cycle, 0.1ms Pulse Width)
IFP 100 mA
Forward Current (Per Segment) IF 30 mA
Dating Linear From 25℃   0.25 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Type Max. Unit Test condition
Luminous intensity Iv 36.0 72.0 --- mcd IF=20mA (Note 1)

Luminous Intensity Matching Ratio

(Segment To Segment)

I v-m --- --- 2:1   IF=10mA
Peak emission wavelength λp --- 518 --- nm IF=20mA
Dominant wavelength λd --- 522 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward voltage VF --- 3.20 3.80 V IF=20mA
Reverse current IR --- --- 50 µA VR=5V



Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE
eye-response curve.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.


Ashy Surface 0.56" 518nm InGaN 7 Segment LED Displays 1
