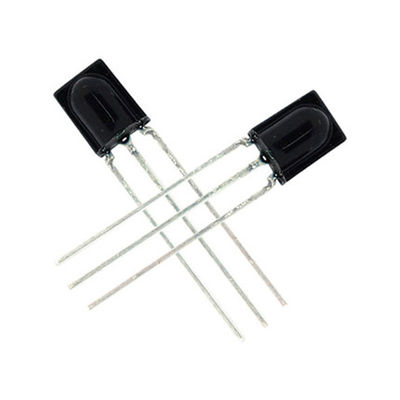

Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm

China Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm supplier
Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm supplier Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm supplier Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm supplier Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm supplier

Large Image :  Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm

Product Details:

Place of Origin: China (mainland)
Brand Name: Doubblelight
Certification: ISO9001:2008/ROHS
Model Number: DL- CCAN81IL-T

Payment & Shipping Terms:

Minimum Order Quantity: 10000
Price: US$ 0.1per unit (Pieces)
Packaging Details: Dimensions per Unit:0.23 × 0.26 × 0.19Meters • Weight per Unit:2.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15-20working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs
Contact Now
Detailed Product Description
Product Name: DL-CCAN81IL-T Package: 0.28inch
Emitted Color: Black Peak Emission Wavelength: 940nm
Chip Material: Silicon Source Color: Infrared Receiver
Forward Voltage @20ma: 6v
High Light:

high power led chip

,

led light chip

Infrared Remote-Control Receiver Module



DEVICE NUMBER: DL- CCAN81IL-T



  • Features:
  • Within the Shielding,High protection ability against EMI
  • Wide voltage operating: 2.7V~5.5V
  • Wide half angle & long reception distance
  • Automatic supply voltage adaptation
  • Enhanced immunity against all kind of disturbance light
  • TTL and CMOS compatibility
  • Automatic sensitivity adaptation(AGC) and automatic Strong signal adaptation (ATC)
  • Automatic bias control for sunlight



  • Center frequency

37.9 KHz



  • Applications:
  • AV equipment (TV, DVD Player, VCR, Audio, CD player, STB, etc)
  • Home appliances (Camera, Computer Air Conditioner, Fan, light, etc)
  • Infrared remote control Toys.





  • Package dimensions:

Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm 0





Part No.

Chip Material

Lens Color

Source Color

DL-CCAN81IL-T

Silicon

Black

Infrared Receiver

Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm 1

Notes:

  • At the position of2mm from the bottom of the package within 5 seconds.





  • Block Diagram

Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm 2





  • Reliability Test Items

Test Items

Test Conditions

            Ratings

High Temperature Storage

Ta=+85°C, Vcc=3.0V

  t=240hr.

Low Temperature Storage

Ta=-40°C, Vcc=3.0V

t=240hr.

High Temperature High Humid Storage

Ta=40°C, 90%RH, Vcc=3.0V

t=240hr.

Temperature Cycling

-40°C (30min) ~+85°C (30min)

20cycles test





  • Typical Electrical - Optical Characteristics Curves

          (25 Ambient Temperature Unless Otherwise Noted)



Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm 3







  • Application Guide

Remote Control Infrared Receiver Module For AV Equipment From 700 - 1200nm 4
