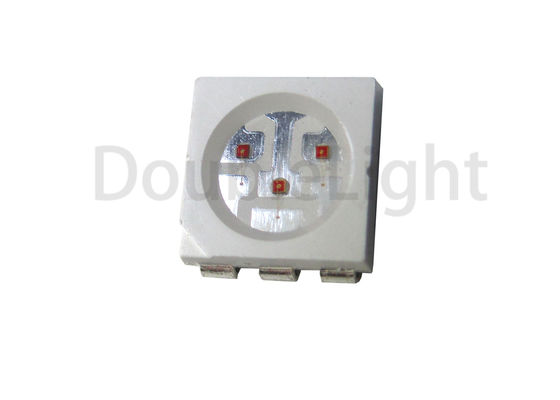

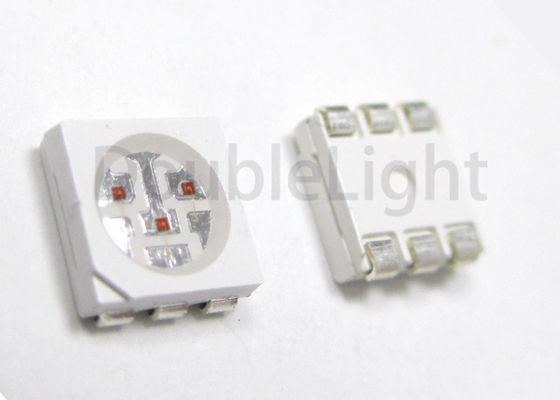

5050 High Power SMD Led 6 Pins Diode LEDs 3 Levels Indicator Several Levels Brightness

5050 High Power SMD Led 6 Pins Diode LEDs 3 Levels Indicator Several Levels Brightness

    • 5050 High Power SMD Led 6 Pins Diode  LEDs 3 Levels Indicator Several Levels Brightness
    • 5050 High Power SMD Led 6 Pins Diode  LEDs 3 Levels Indicator Several Levels Brightness
  • 5050 High Power SMD Led 6 Pins Diode  LEDs 3 Levels Indicator Several Levels Brightness

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP5050UYC-4UY

    Payment & Shipping Terms:

    Minimum Order Quantity: 3,000pcs/Real
    Price: US$ 0.065-0.08. per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after payment received
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 5050 Yellow Led Package: TOP 5050 SMD LED
    Emitted Color: 3 Levels Yellow Light With 6 Pins Luminous Intensity: Type 3000 Mcd
    Forward Voltage @20ma: 1.8-2.8v Datesheet: Update

    Datesheet: DL-TOP5050UYC-4UY.pdf               LIGHT SOURCE: Yellow








    1.50mm Height Top View  Super Yellow Chip LEDs




    Features:

    1. P-LCC-6 package.
    2. White package.
    3. Optical indicator.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
    9. Suitable for all SMT assembly and solder process.
    10. Computable with automatic placement equipment.
    11. Available on tape and reel (12mm Tape).
    12. The product itself will remain within RoHS compliant Version.



    Descriptions:

    1. The TOP5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



    Applications:

    1. Automotive: Backlight in dashboards and switches.
    2. Telecommunication: Indicator and backlight in telephone and fax.
    3. Indicator and backlight for audio and video equipment.
    4. Indicator and backlight in office and family equipment.
    5. Flat backlight for LCD’s, switches and symbols.
    6. Light pipe application.
    7. General use.

    Mechanical Dimensions



    5050 High Power SMD Led 6 Pins Diode  LEDs 3 Levels Indicator Several Levels Brightness



    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation (Per Chip) PD 95 mW

    Peak Forward Current (Per Chip)

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current (Per Chip) IF 25 mA
    Reverse Voltage (Per Chip) VR 5 V
    Electrostatic Discharge (HBM) ESD 2000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV 2500 3000 ---- mcd

    IF=20mA (Note 1)

    (Per Chip)

    Viewing Angle 1/2 --- 120 --- Deg

    IF=20mA (Note 2)

    (Per Chip)

    Peak Emission Wavelength λp --- 588 --- nm

    IF=20mA

    (Per Chip)

    Dominant Wavelength λd --- 592 --- nm

    IF=20mA (Note 3)

    (Per Chip)

    Spectral Line Half-Width △λ --- 10 --- nm

    IF=20mA

    (Per Chip)

    Forward Voltage VF 1.80 2.20 2.80 V

    IF=20mA

    (Per Chip)

    Reverse Current IR --- --- 10 µA

    VR=5V

    (Per Chip)





    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





    For more details, please contact us.
