Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays

Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays

    • Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays
    • Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays
    • Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays
  • Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-S34571 CWB

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:5.1 Kilograms • Units per Export Carton:3000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:10.2 Kilograms
    Delivery Time: 10-15 working days after payment received
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 3,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Big Dot Matrix LED Displays Package: 22*30 Mm Dots 5*7
    Emitted Color: Ultra White Forward Current Per Segment: 25mA
    Chip Material: InGaN Face Color: Black
    Luminous Intensity: 120mcd (Type) Datesheet: Update

    Datasheet:DL-S34571CWB.pdf                         Light source: White

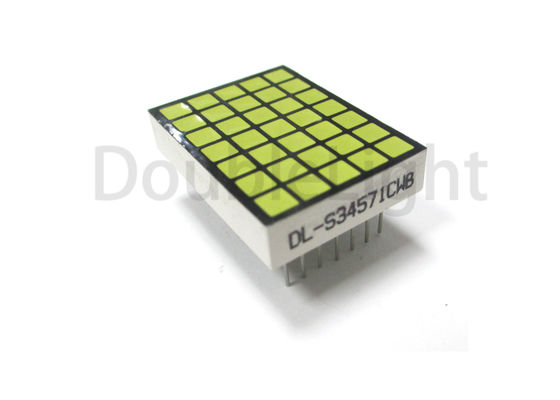

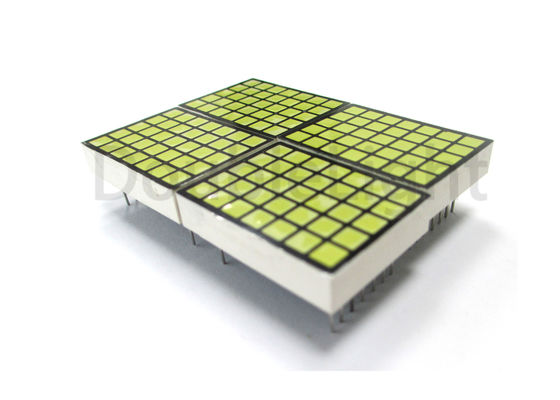

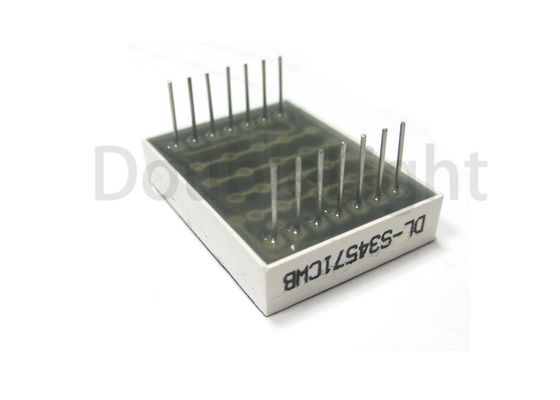

    1.2 inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays Screen Board with 14 pins







    Model No. Chip Material Source Color Description

    DL-S34571CWB

    InGaN

     Black

    Row Cathode

    NOTES: All dimensions are in millimeters (inches) tolerance are ±0.25mm (0.01inch) unless otherwise noted.



    Features:

    1. 1.2inch (30.0mm) Matrix height.
    2. Colors: Ultra White
    3. Flat package and light weight.
    4. Easy assembly.
    5. High quality and low cost.
    6. High reliable and intensity.
    7. Low power requirement.
    8. The product itself will remain within RoHS compliant version.





    Descriptions:

    1. The DL-S34571 series is a large emitting area (3.0mm diameter) LED sources configured in a 35 dots 5*7 matrix array.
    2. These displays provide excellent reliability in bright ambient light.
    3. These devices are made with white dots and black surface.



    Applications:

    1. Audio equipment.
    2. Instrument panels.
    3. Digital read out display
    4. Dot matrix led display support windows series system



    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation Per Segment PD 90 mW

    Peak Forward Current Per Segment
    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Per Segment IF 25 mA
    Dating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity Iv 60. 120.0 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA





    Chromaticity Coordinates



    X ---

    0.30

    --- nm IF=20mA
    Y --- 0.31 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF --- 3.3 4.0 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V


    Notes:

    • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    • Package Dimension:

    Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays



    • Typical Electrical / Optical Characteristics Curves

    (25℃ Ambient Temperature Unless Otherwise Noted)

    Luminous Rectangular Plate Multi Color Led Diode 1.2 Inch 3.45mm Dots 5×7 Ultra White Dot Matrix LED Displays



    • Please read the following notes before using the datasheets:

    1. Over-current-proof

    Customer must apply resistors for protection, otherwise slight voltage shift will

    cause big current change ( Burn out will happen ).

    2. Storage

    2.1 Do not open moisture proof bag before the products are ready to use.

    2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

    2.3 The LEDs should be used within a year.

    2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

    3. Soldering Condition

    3.1 Pb-free solder temperature profile.

    3.2 Reflow soldering should not be done more than two times.

    4. Soldering Iron

    Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds

    within once in less than the soldering iron capacity 25W. Leave two seconds and more

    intervals, and do soldering of each terminal. Be careful because the

    damage of the product is often started at the time of the hand solder.

    5. Repairing

    Repair should not be done after the LEDs have been soldered. When repairing is unavoidable,

    a double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.






    For more details, please contact us.

    Email:Facebook@doublelight.com.cn
