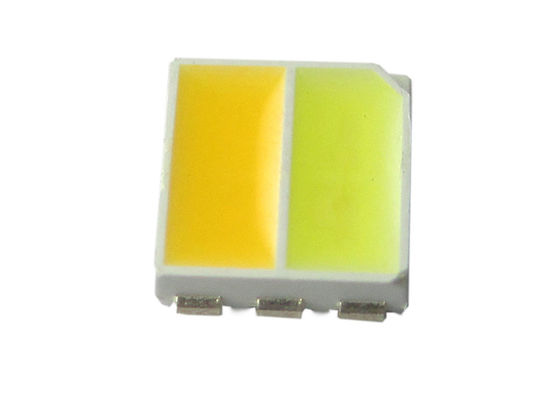

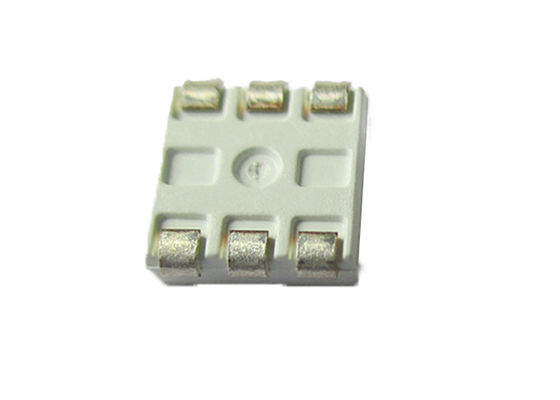

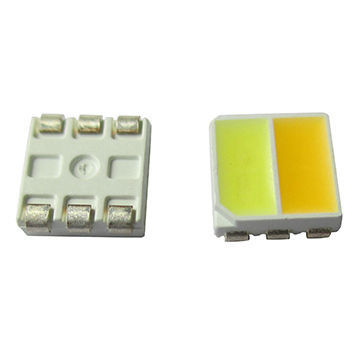

    Product Name: 5050 Packagebi-color Chip LED Package: 5050 Package
    Emitted Color: 4000K White And 6500K White Power Dissipation(Per Chip): 150mW
    Model Number: DL-TOP5050W40W65-2W120 Lens Color: Yellow Diffused
    Forward Voltage @60ma: 3.0-3.8v Luminous Flux: 28lm,28.5lm
    Viewing Angle: 120 Deg Continuous Forward Current(Per Chip): 100mA

    1.6mm Height bi color smd led 2220 Package Top View Warm White chip led 5050 dual colour led


    Know more details,please downlaod specifications:​  DL-TOP5050W40W65-2W120.pdf

    • Features:
    1. Package in 12mm tape on 7" diameter reels.
    2. Industry standard footprint.
    3. Low profile.

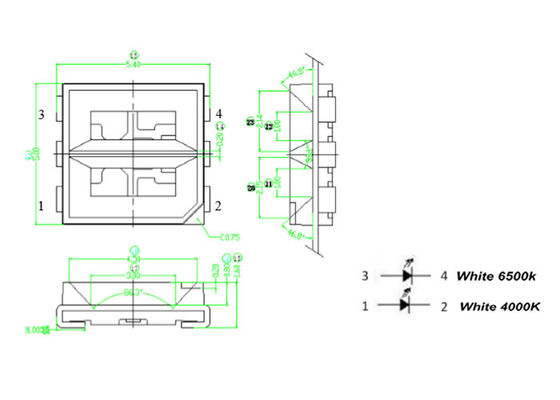

    4. Small size (L×W×H: 5.40mm×5.00mm×1.60mm).
    5. Super luminosity white LED.
    6. Several colors available.
    7. Built in 3 LED chips.
    8. Wide viewing angle.
    9. Soldering methods: Reflow Soldering.
    10. High performance.
    11. The product itself will remain within RoHS compliant Version.
    • Descriptions:
    1. The 5050 Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    2. Besides, lightweight makes them ideal for miniature applications. etc.
    • Applications:
    1. Automotive: Backlight in dashboards and switches.
    2. Telecommunication: Indicator and backlight in telephone and fax.
    3. Indicator and backlight for audio and video equipment.
    4. Indicator and backlight in office and family equipment.
    5. Flat backlight for LCD’s, switches and symbols.
    6. Light pipe application.
    7. General use.



    Part No. Chip Material Lens Color Source Color
    DL-TOP5050W40W45-2W120 InGaN Yellow Diffused White(4000K)
    White(6500K)



    • Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max Unit
    Power Dissipation(Per Chip) PD 150 mW

    Peak Forward Current(Per Chip)
    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 120 mA
    Continuous Forward Current(Per Chip) IF 100 mA
    Reverse Voltage(Per Chip) VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds

    • Electrical Optical Characteristics at Ta=25℃
    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Flux * Φ White 24.0 28.0 --- lm IF=60mA
    Luminous Flux * Φ White 24.5 28.5 --- lm IF=60mA
    Viewing Angle * 2θ1/2 W&WW --- 120 --- Deg IF=60mA
    Color Temperature Tc White 3500 4000 4500 k IF=60mA
    Color Temperature Tc Warm White 6000 6500 7000 k IF=60mA
    Forward Voltage VF White 3.00 3.30 3.80 V IF=60mA
    Forward Voltage VF Warm White 3.00 3.30 3.80 V IF=60mA
    Reverse Current IR W&WW --- --- 10 µA VR=5V




    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
    • Typical Electrical / Optical Characteristics Curves (Per Chip)

    (25℃ Ambient Temperature Unless Otherwise Noted)

    1.6mm Height bi color smd led 2220 Package Top View Warm White chip led 5050 dual colour led

    CIE Chromaticity Diagram:

    1.6mm Height bi color smd led 2220 Package Top View Warm White chip led 5050 dual colour led
