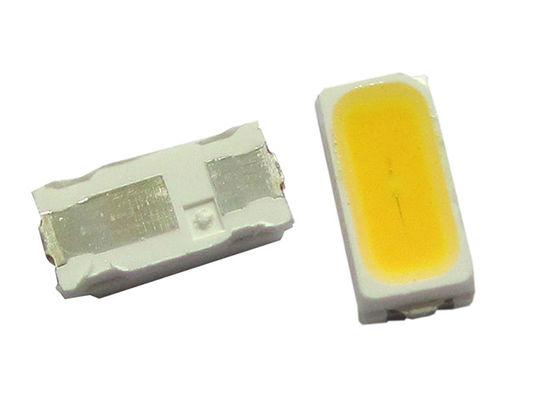

White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip

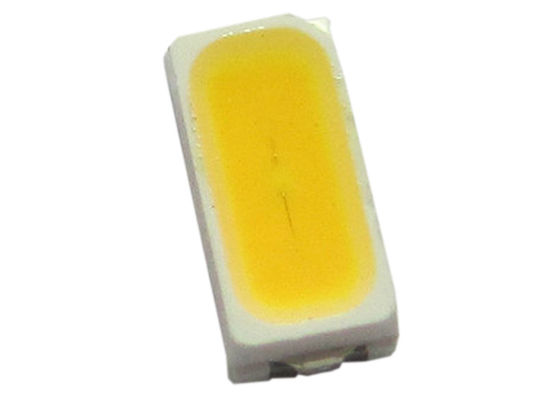

White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip

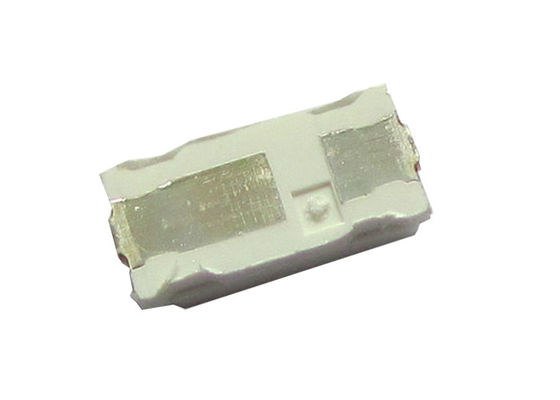

    • White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip

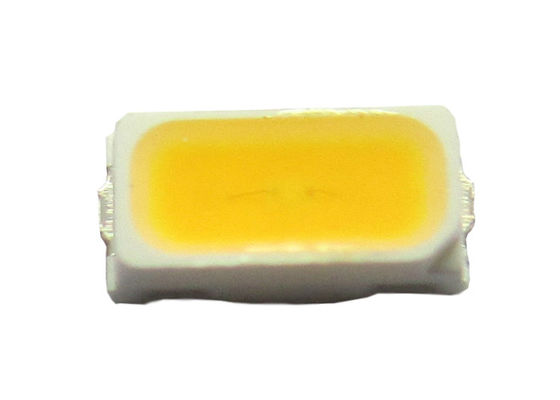

    • White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip
    • White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip
    • White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip
  • White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP3014W57-1W120

    Payment & Shipping Terms:

    Minimum Order Quantity: 4,000pcs
    Price: US$ 0.01-0.03per unit (Pieces) can be discussed
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 10 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 5,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Top View 3014 White Chip LED Package: P-LCC-2 Package3014 Chip LED
    Emitted Color: White Color Temperature: 5300-6500K
    Lens Type: Yellow Diffused Forward Voltage @20ma: 3.0-3.8v
    Luminous Intensity: 2350-2850lm Viewing Angle: 120 Deg
    Certification: RoHS Power: 95mW

    DL-TOP3014W57-1W120.pdf



             White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip





    Part No. Chip Material Lens Color Source Color
    DL-TOP3014W57-1W120 InGaN Yellow Diffused White



    Notes:

    1. All dimensions are in millimeters.

    2. Tolerance is ± 0.10 mm (.004″) unless otherwise specified.

    3. Specifications are subject to change without notice.





    Features:

    1. P-LCC-2 package.
    2. White package.
    3. Optical indicator.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Suitable for automatic placement equipment.
    9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    10. Available on tape and reel (8mm Tape).
    11. The product itself will remain within RoHS compliant Version.



    Descriptions:

    1. The TOP 3014 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



    Applications:

    1. Automotive: Backlighting in dashboards and switches.
    2. Telecommunication: Indicator and backlight in telephone and fax
    3. Indicator and backlight for audio and video equipment.
    4. Indicator and backlight in office and family equipment.
    5. Flat backlight for LCD’s, switches and symbols.
    6. Light pipe application.
    7. General use.
    • Package Dimension:

    White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip



    Absolute Maximum Ratings at Ta=25



    Parameters Symbol Max. Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 35 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds





    Electrical Optical Characteristics at Ta=25



    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 2350 2850 --- mcd IF=30mA (Note 1)
    Luminous Flux Φ 11 --- 13 lm IF=30mA
    Viewing Angle * 2θ1/2 --- 120 --- Deg IF=30mA (Note 2)
    Chromaticity Coordinates x --- 0.32 ---   IF=30mA (Note 3)
    y --- 0.33 ---
    Color Temperature TC 5300 --- 6000 K IF=30mA
    Forward Voltage VF 3.00 3.30 3.80 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V



    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
    • Typical Electrical / Optical Characteristics Curves

    White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip

    • Reel Dimensions:

    White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip



    Carrier Tape Dimensions:



    White SMD LED 0.80mm Height Top View 3014 Package TC 5300-6500K 0.1W Yellow Diffused Lens smd led chip
