White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v

White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v
White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v

Large Image :  White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB1206W80

Payment & Shipping Terms:

Minimum Order Quantity: 3,000pcs
Price: US$ 0.010-0.020 per unit (Pieces) depend on the quantity
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 7-10 working days after payment received
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 5,000,000pcs per Day
Detailed Product Description
Product Name: 1206 Package White LED Emitted Color: White
Lens Type: Yellow Diffused Forward Voltage @20ma: 3.0-3.3v
Luminous Intensity: 350-600mcd Size: 3.2mmX1.6mmX0.9mm
Datasheet: Update Package: 3000 Pieces Per Reel
High Light:

high power smd led

,

brightest smd led

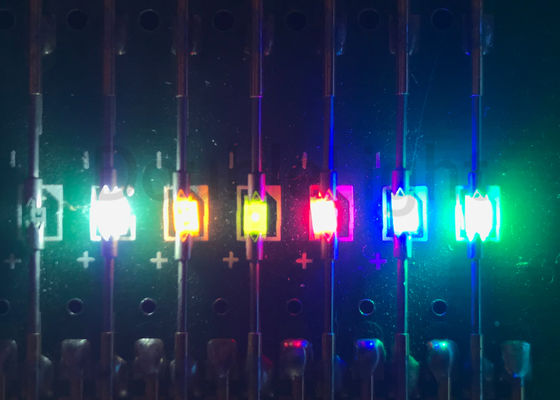

Datasheet:DL-PCB1206W80.pdf                                  Light source: White
                 DL-PCBC1206SRC-1SR120.pdf                   Light source: Red
                 DL-PCB1206UYC-1UY120.pdf                     Light source: Yellow
                  DL-PCB1206PGC-1PG120.pdf                   Light source: Green
                 DL-PCB1206YGC-1YG120.pdf                    Light source: Yellow Green
                DL-PCB1206BC-1B120.pdf                          Light source: Blue

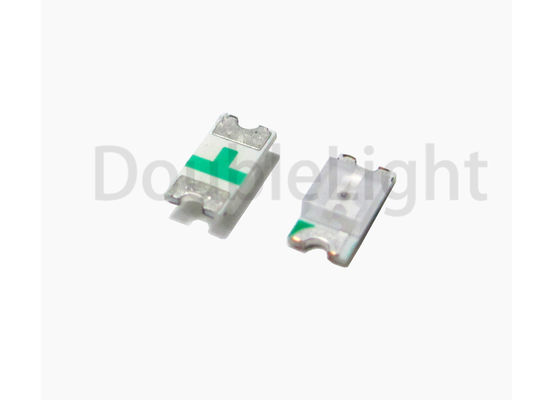

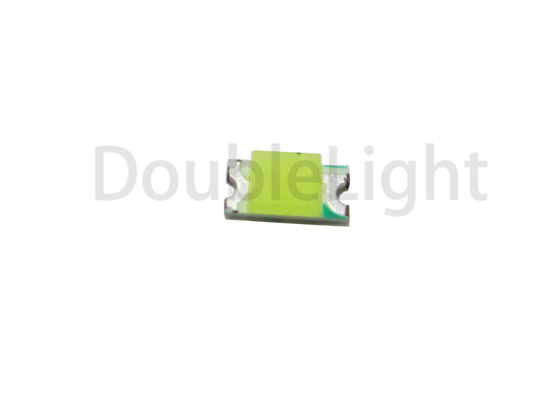

0.9mm Height 1206 Package

White Chip LED

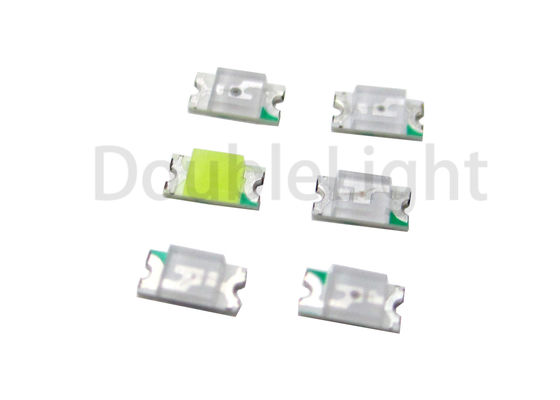

         This is 0.90mm height 1206 package White LED, and the emitting color of this size can be customed.

Part No.Chip MaterialLens ColorSource Color
DL-PCB1206W80InGaNYellow DiffusedWhite







Features:

  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The 1206 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.

Package Dimension:



White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v 0
Absolute Maximum Ratings at Ta=25


ParametersSymbolMaxUnit
Power DissipationPD95mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward CurrentIF25mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD1000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25


ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV350450---mcdIF=20mA (Note 1)
Viewing Angle *2θ1/2---120---DegIF=20mA (Note 2)
Chromaticity Coordinatesx---0.30--- IF=20mA (Note 3)
y---0.31---
Forward VoltageVF3.003.30---VIF=20mA
Reverse CurrentIR------10µAVR=5V




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
Email: Facebook@doublelight.com.cn


White Emitted Color SMD Chip LED 0.9mm Thickness Yellow Diffused Lens Type 3.0-3.3v 1
