2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption

2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption
2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption 2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption 2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption

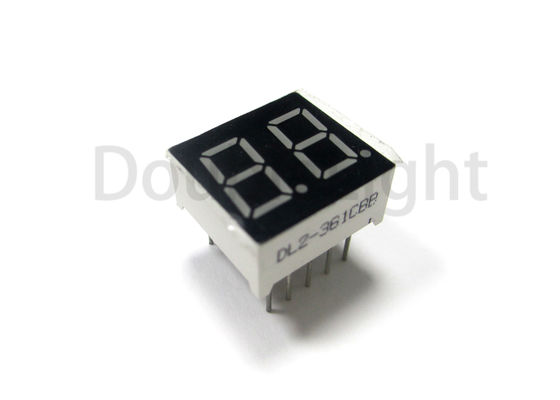

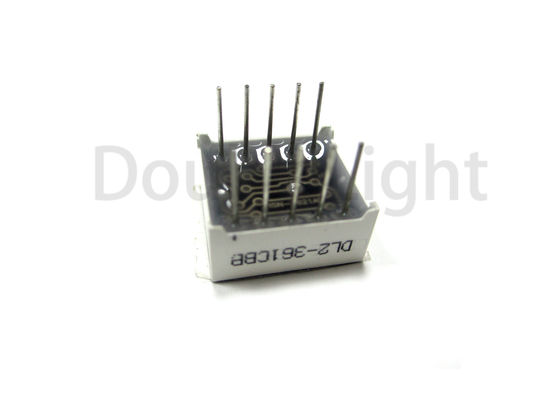

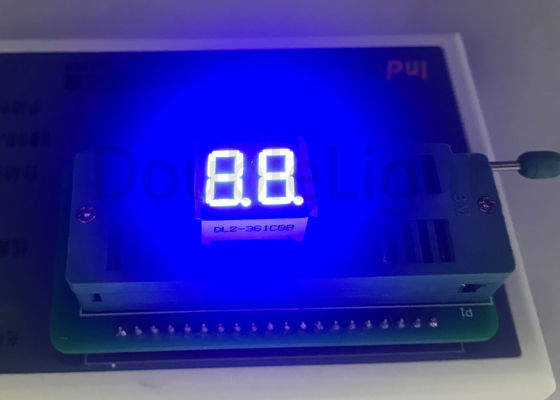

Large Image :  2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL2-361XBB

Payment & Shipping Terms:

Minimum Order Quantity: 2000pcs
Price: US$ 0.24-0.4per unit (Pieces) depends on the quantity
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 7-10 working days after payment received
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 5,000,000pcs per Day
Detailed Product Description
Product Name: 0.36" Dual Digit Numeric Displays Emitted Color: Blue
Peak Emission Wavelength: 468-470nm Chip Material: GaP
Face Color: Black Surface Forward Voltage @20ma: 1.6-2.4V
Luminous Intensity: 10-30mcd Size: 15.0*14.0*7.2mm
Datasheet: Update
High Light:

led seven segment display

,

brightest smd led chip

Datasheet: DL2-361XBB.pdf                   Emitting color:Blue
                    DL2-361XSRB.pdf               Emitting color:Ultra Red




       0.36" Dual Digit Numeric Displays



 This is 0.36" dual digit Numeric Displays peak emission wavelength 470nm and emitting blue color light( Black surface),source color can be customed.





2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption 0

Features:

  1. 0.36″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. The DL2-361XBB series is a lager 9.20mm(0.36″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.



Device Selection Guide:



Model No. Chip Material Source Color Description
DL2-361ABB InGaN Blue Common Anode
DL2-361CBB Blue Common Cathode
















Absolute Maximum Ratings at Ta=25




Parameter Symbol Max. Unit
Power Dissipation Per Segment PD 95 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Derating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃



Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 10.0 30.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 468 --- nm IF=20mA
Dominant Wavelength λd --- 470 --- nm IF=20mA
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF --- 3.2 4.0 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V



Notes:

  • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





For more details, please contact us.

Email:Facebook@doublelight.com.cn

Contact Details
HongKong Double Light Electronics Technology Co. Ltd

Contact Person: Tanky

Tel: +8613750005407

Send your inquiry directly to us (0 / 3000)
