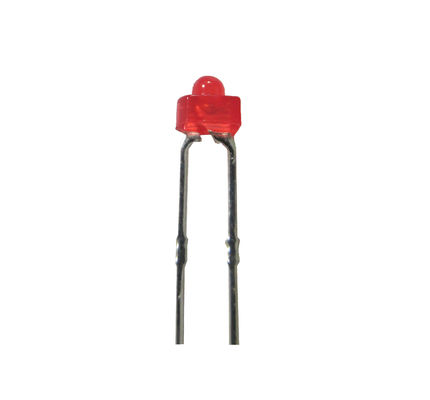

Red LED Emitting Diodes Mini Size 60° Viewing Angle With Flange Indicator Usage

Red LED Emitting Diodes Mini Size 60° Viewing Angle With Flange Indicator Usage

Red LED Emitting Diodes Mini Size 60° Viewing Angle With Flange Indicator Usage

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-204RD-1R60

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Delivery Time: 5-7 working days after received your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Type: LED Emitting Diodes Max. Forward Voltage: 2.2V
Light Color: Red Wavelength: 625nm
Led Chips: Epistar Led Diodes Shape: 1.8mm Mini Package
Application: Indicator Luminous Intensity: 50-100 Mcd
Viewing Angle: 60° Lens Color: Red Diffused



1.8mm Round With Flange Red LED Mini size Package for indicator usage







Part No. Chip Material Lens Color Source Color
DL-204BD1B60 InGaN Blue Diffused Blue
  • Features:
  1. Popular T-1 diameter package.
  2. High efficiency.
  3. Selected minimum intensities.
  4. Available on tape and reel.
  5. Reliable and robust.
  6. The product itself will remain within RoHS compliant version.



  • Descriptions:
  1. The series is specially designed for applications requiring higher brightness.
  2. The LED lamps are available with different colors, intensities.



  • Applications:
  1. Status indicators.
  2. Commercial use.
  3. Advertising Signs.
  4. Back lighting.



  • Package Dimension:



Red LED Emitting Diodes Mini Size 60° Viewing Angle With Flange Indicator Usage

  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds

  • Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 50 100 --- mcd IF=20mA (Note 1)
Viewing Angle * 1/2 20 60 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 625 --- nm IF=20mA
Dominant Wavelength λd --- 630 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF 1.9 2.1 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V


Notes:

1. Luminous Intensity Measurement allowance is ± 10%.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



Red LED Emitting Diodes Mini Size 60° Viewing Angle With Flange Indicator Usage
