4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V

4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V

    • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V
    • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V
    • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V
    • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V
    • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V
  • 4 Digit 7 Segment LED Displays Gray Surface 6 Pins 0.56'' 14.2mm DIP Type 2.2V

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL4-562XUYB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 8,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 7 Segment LED Display Package: 0.56 Inch
    Emitted Color: Super Bright Yellow Peak Emission Wavelength: 590nm
    Chip Material: GaAlAs Face Color: Gray Surface
    Forward Voltage @20ma: 2.2V Luminous Intensity: 16-22mcd

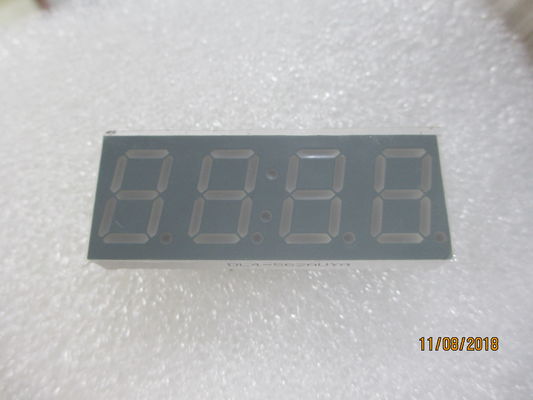

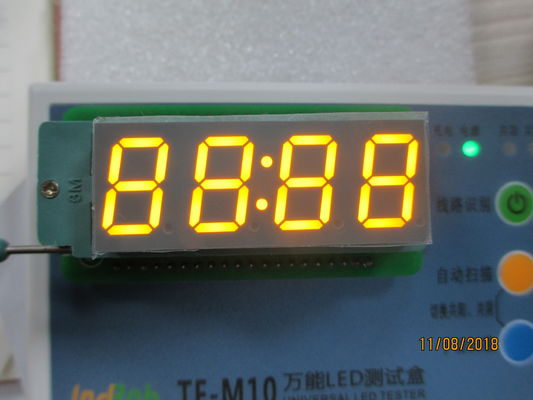

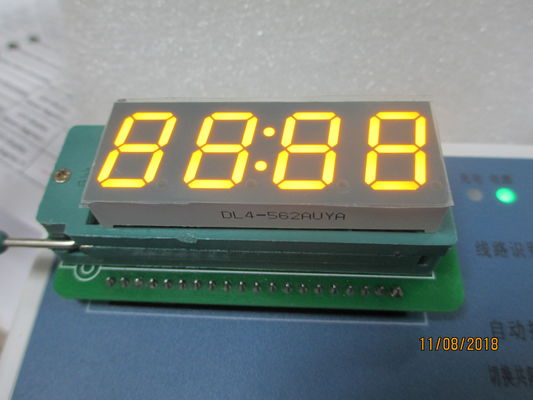

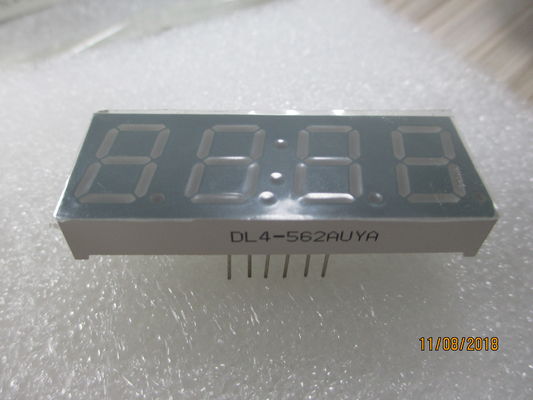

     0.56'' 14.2mm DIP Type 4 Digit 7 Segment Display gray surface 6 pins only

    • Features:
      1. 0.56″ (inch) digit height.
      2. Excellent segment uniformity.
      3. Sold state reliability.
      4. Industrial standard size.
      5. Low power consumption.
      6. The product itself will remain within RoHS compliant Version.
    • Descriptions:
      1. The DL4-562XUYB series is a lager 14.20mm (0.56″) high seven segments display designed for viewing
      distances up to 7 meters.
      2. These displays provide excellent reliability in bright ambient light.
      3. These devices are made with white segments and black surface.
    • Applications:
      1. Audio equipment.
      2. Instrument panels.
      3. Digital read out display.
    • We promise:
      • Your inquiry be replied in shortest time, no more than 12 hours
      • 15 years of experience in LED and 7 segment LED display industry
      • Good after-service
      • Prompt delivery time
      • OEM/ODM orders are accepted
    • For OEM orders
      • Usually, we make samples free for customers, while customers afford shipping charge of samples
      • If sample need new mold, customers will afford the mold charge
    • For ODM orders:
      • We have an experienced designer and technician team to develop new products according to customer's demands
      • We provide with various solutions
      • Providing you with the best service is our mission

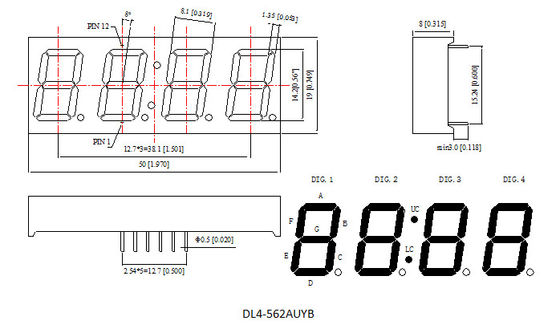

      • Sizes:
      • Digit size: 14.20mm (0.56 inches)
      • Outer size: 25 x 19 x 8mm




    • Device Selection Guide:




    Model No. Chip Material Source Color Description
    DL4-562AUYB GaAlAs Ultra Yellow Common Anode
    DL4-564CUYB   Ultra Yellow Common Cathode

    • Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max. Unit
    Power Dissipation Per Segment PD 70 mW

    Peak Forward Current Per Segment

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Per Segment IF 25 mA
    Dating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds





    • Electrical Optical Characteristics at Ta=25℃
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity Iv 16.0 22.0 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
    Peak Emission Wavelength λp --- 592 --- nm IF=20mA
    Dominant Wavelength λd --- 589 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF --- 2.00 2.40 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V



    Notes:
    Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


    Contact Details
