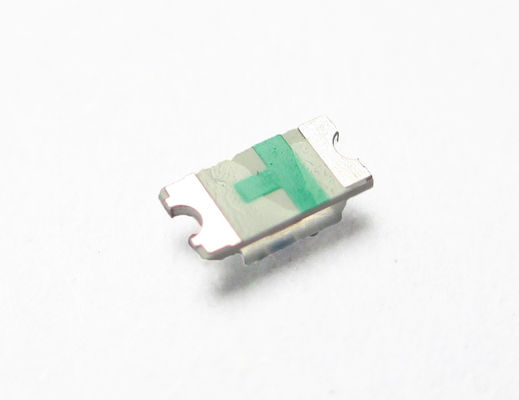

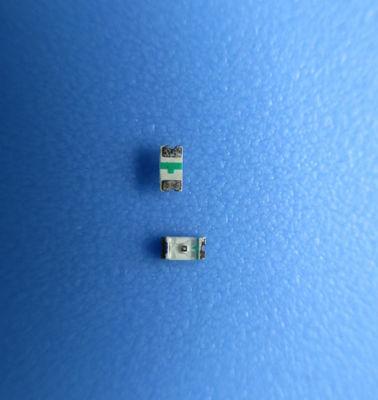

0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage

    • 0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage
    • 0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage
    • 0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage
    • 0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage
  • 0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-PCB0603W30-06W

    Payment & Shipping Terms:

    Minimum Order Quantity: 4000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 0603 White Chip LED Package: 0603 Size
    Emitted Color: Warm White Color Temperature: 2800-3500K
    Lens Type: Water Clear Forward Voltage @20ma: 3.3V
    Viewing Angle: 120 Deg Chip Material: InGaN
    Luminous Intensity: 250-400mcd Height: 0.6mm

    DL-PCB0603W30-06W.pdf


    0.6mm Height 0603 Package Warm White Chip LED general use as backlight or indicator​




    Part No. Chip Material Lens Color Source Color
    DL-PCB0603W30-06W InGaN Water Clear Warm White










    • Features:
    1. Package in 8mm tape on 7″ diameter reel.
    2. Compatible with automatic placement equipment.
    3. Compatible with infrared and vapor phase reflow solder process.
    4. Mono-color type.
    5. The product itself will remain within RoHS compliant Version.
    • Descriptions:
    1. The 0603 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    2. Besides, lightweight makes them ideal for miniature applications, etc.
    • Applications:
    1. Automotive: Backlighting in dashboard and switch.
    2. Telecommunication: Indicator and backlighting in telephone and fax.
    3. Flat backlight for LCD, switch and symbol.
    4. General use.


    Package Dimension:
    0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage


    • Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds

    • Electrical Optical Characteristics at Ta=25℃
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 250 400 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
    Chromaticity Coordinates x --- 0.43 --- nm IF=20mA
    y --- 0.40 --- nm IF=20mA (Note 3)
    Color Temperature CCT 2800 3300 3500 K IF=20mA
    Forward Voltage VF 3.0 3.3 --- V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V



    Notes:

    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





    Company intorduction:
    HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

    0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage

    Why double light can consider high quality and low price at the same time?

    • Double light has been in LED industry for more than 15 years, has accumulated a huge number of worldwide customers.
    • Based on the huge customers base, Double light manufacturing capacity was magnified to a high lever.
    • Under this background, DOUBLE LIght can benefit its customers with low price.

    0603/1608 Warm White SMD Chip LED Water Clear Lens Type 3.3V Backlight / Indicator Usage

    choose DOUBLE LIGHT, your expert LED components nearby!
