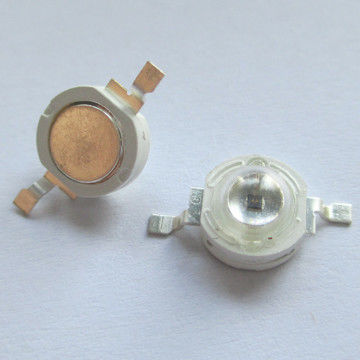

1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip

1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip
1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip 1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip

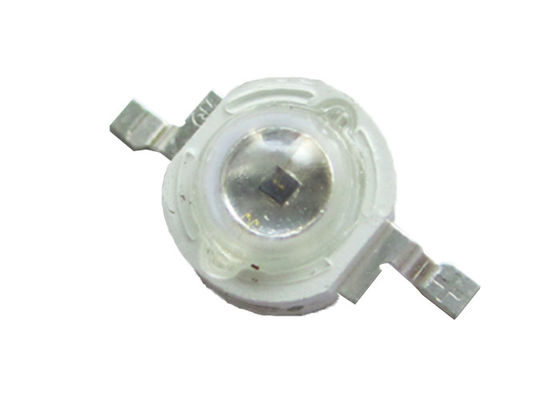

Large Image :  1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-HP10SIRA-1SIR120
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: High Power Infrared LED Power (W): 1w
Emitted Color: Infrared LED Chip Material: GaAlAs
Lens Type: Water Clear Peak Emission Wavelength: 850nm
Forward Voltage @20ma: 1.3-1.8V Viewing Angle: 120 Deg
Radiant Intensity: 110-180mw/sr Forward Current: 350mA
High Light:

high power led chip

,

led light chip

This is 1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip

Datasheet:DL-HP10SIRA-1SIR120.pdf





Features:

  1. High reliability.
  2. High radiant intensity.
  3. Low forward voltage.
  4. Peak wavelength λp=850nm.
  5. The product itself will remain within RoHS compliant version.


Descriptions:

  1. The DL-HP10SIRA-1SIR120 Infrared Emitting Diode is a high intensity diode.
  2. The device is spectrally matched with phototransistor, photodiode and infrared receiver module.


Applications:

  1. Free air transmission system.
  2. Optoelectronic switch.
  3. Floppy disk drive.
  4. Infrared applied system.
  5. Smoke detector.

Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD1000mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP1.00A
Forward CurrentIF350mA
Reverse VoltageVR5V
Operating Temperature RangeTopr-10℃ to +70℃
Storage Temperature RangeTstg-20℃ to +80℃
Soldering TemperatureTsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Radiant IntensityIe110180---mW/SrIF=350mA
Viewing Angle *2θ1/2---120---Deg(Note 1)
Peak Emission Wavelengthλp---850---nmIF=350mA
Spectral Bandwidth△λ---45---nmIF=350mA
Forward VoltageVF1.301.501.80VIF=350mA
Reverse CurrentIR------50µAVR=5V



Notes:
1. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intens

 High Power Infrared LED Package Dimension:
1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip 0



Part No.Chip MaterialLens ColorSource Color
DL-HP10SIRA-1SIR120GaAlAsWater ClearInfrared



Our Services
1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech        products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Advantages
1. Long life: product life of up to 50,000 hours;
2. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;
3. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;
4. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;
5. Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.

1w High Power Infrared LED IR led light components wavelength 850nm infrared led 40 mil led light chip 1
