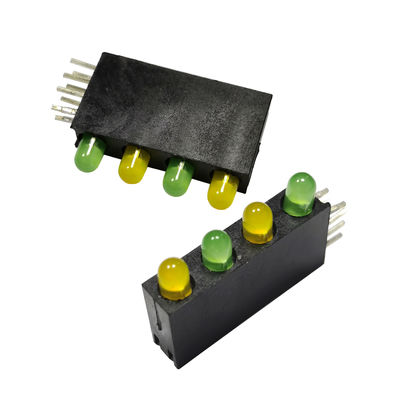

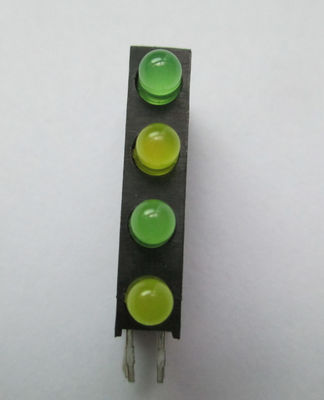

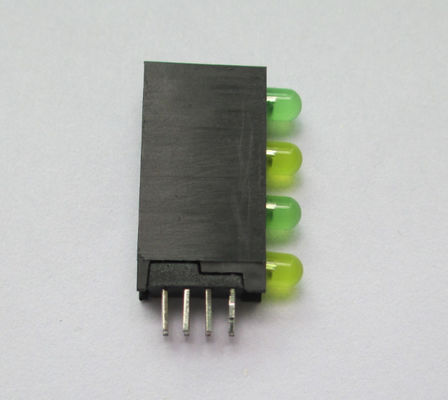

Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color

Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color

    • Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color
    • Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color
  • Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color

    Product Details:

    Place of Origin: China
    Brand Name: Double Light
    Certification: ISO9001:2008,Rohs
    Model Number: DL-H30D-2G2YD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: USD 0.10-0.25/PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Four 3.0mm Round Type Housing LED Lamps Emitted Color: Two Yellow Green And Two Yellow
    Chip Material: Two GaP/GaAsP Lens Type: Diffused For Their In-house Color
    Peak Emission Wavelength: Yellow Green:568nm,Yellow:589nm Forward Voltage @20ma: Yellow Green:1.6-2.6V,Yellow:1.6-2.6V
    Viewing Angle: Yellow Green:80Deg,Yellow:90Deg Luminous Intensity: Yellow Green:20-70mcd,Yellow:9-30mcd

                      DL-H30D-1RYGD.pdf

    This is our Four 3.0mm Round Type Housing LED Lamps,Two Yellow Green and Two Yellow Color.

    Four Colors LED Housing Light Components



    Features:

    • Low Power consumption.
    • High efficiency and low cost.
    • Good control and free combinations on the colors of LED lamps.
    • Good lock and easy to assembly.
    • Stackable and easy to assembly.
    • Stackable vertically and easy to assembly.
    • Versatile mounting on P.C board or panel.
    • Stackable horizontally and easy to assembly.
    • The product itself will remain within RoHS compliant version.



    Descriptions:

    • ARRAY=Plastic Holder + Combinations of Lamps.
    • The array will easily mount be applicable on any panel up to.



    Applications:

    • Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.



    Package Dimension:

    Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color





    Part No. Chip Material Lens Color Source Color
    DL-H30D-2G2YD G GaP Green Diffused Yellow Green
    Y GaAsP Yellow Diffused Yellow

    Notes:

    1. All dimensions are in millimeters (inches).

    2. Tolerance is ±0.25 mm (.010″) unless otherwise noted.

    3. Protruded resin under flange is 1.00 mm (.039″) max.

    4. Specifications are subject to change without notice.





    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation PD 100 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current IF 30 mA
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃

    Soldering Temperature

    [4mm (.157″) From Body]

    Tsld 260℃ for 5 Seconds



    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV Green 20 45 --- mcd

    IF=20mA

    (Note 1)

    Yellow 9 20 ---
    Viewing Angle 1/2 Green --- 80 --- Deg

    IF=20mA

    (Note 2)

    Yellow --- 90 ---
    Peak Emission Wavelength λp Green --- 565 --- nm

    Measurement

    @Peak

    Yellow --- 592 ---
    Dominant Wavelength λd Green --- 568 --- nm

    IF=20mA

    (Note 3)

    Yellow --- 589 ---
    Spectral Line Half-Width △λ Green --- 30 --- nm
    Yellow --- 35 ---
    Forward Voltage VF Green 1.60 2.20 2.60 V IF=20mA
    Yellow 1.60 2.20 2.60
    Reverse Current IR Green   10   µA VR=5V
    Yellow



    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.

    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





    Typical Electrical / Optical Characteristics Curves

    (25℃ Ambient Temperature Unless Otherwise Noted



    Yellow Green:

    Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color





    Yellow:

    Four 3.0mm Round Type Housing LED Lamps Two Yellow Green and Two Yellow Color



    Reliability Test Items And Conditions:

    The reliability of products shall be satisfied with items listed below:

    Confidence level: 90%.

    LTPD: 10%.

    1) Test Items and Results:

    Test Item Standard Test Method Test Conditions Note Number of Damaged
    Resistance to Soldering Heat

    JEITA ED-4701

    300 302

    Tsld=260±5℃, 10sec 3mm from the base of the epoxy bulb 1 time 0/100
    Solder ability

    JEITA ED-4701

    300 303

    Tsld=235±5℃, 5sec(using flux)

    1time

    over 95%

    0/100
    Thermal Shock

    JEITA ED-4701

    300 307

    0℃~100℃ 15sec, 15sec 100 cycles 0/100
    Temperature Cycle

    JEITA ED-4701

    100 105

    -40℃~25℃~100℃~25℃ 30min,5min,30min,5min 100 cycles 0/100
    Moisture Resistance Cycle

    JEITA ED-4701

    200 203

    25℃~65℃~-10℃ 90%RH 24hrs/1cycle 10 cycles 0/100
    High Temperature Storage

    JEITA ED-4701

    200 201

    Ta=100℃ 1000hrs 0/100

    Terminal Strength

    (Pull test)

    JEITA ED-4701

    400 401

    Load 10N (1kgf)

    10±1sec

    No noticeable damage 0/100
    Terminal Strength (bending test)

    JEITA ED-4701

    400 401

    Load 5N (0.5kgf)

    0°~90°~0° bend 2 times

    No noticeable damage 0/100
    Temperature Humidity Storage

    JEITA ED-4701

    100 103

    Ta=60℃, RH=90% 1000hrs 0/100
    Low Temperature Storage

    JEITA ED-4701

    200 202

    Ta=-40℃ 1000hrs 0/100
    Steady State Operating Life   Ta=25℃, IF=30mA 1000hrs 0/100
    Steady State Operating Life of High Humidity Heat   Ta=60℃, RH=90%, IF=30mA 500hrs 0/100
    Choice of various viewing angles   Ta=-30℃, IF=30mA 1000hrs 0/100



    2) Criteria for Judging the Damage:

    Item Symbol Test Conditions Criteria for Judgment
    Min Max
    Forward Voltage VF IF=20mA --- F.V.*)×1.1
    Reverse Current IR VR=5V --- F.V.*)×2.0
    Luminous Intensity IV IF=20mA F.V.*)×0.7 ---



    *) F.V.: First Value.





    Please read the following notes before using the product:

    1. Over-current-proof

    Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

    2. Storage

    2.1 Do not open moisture proof bag before the products are ready to use.

    2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

    2.3 The LEDs should be used within a year.

    2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

    2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

    3. Soldering Iron

    Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

    4. Repairing

    Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

    5. Caution in ESD

    Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices equipment and machinery must be properly grounded.
