3Mm Dip Indicator Led Diode Red Yellow Green Tri - Color Rectangular Housing

3Mm Dip Indicator Led Diode Red Yellow Green Tri - Color Rectangular Housing
3Mm Dip Indicator Led Diode Red Yellow Green Tri - Color Rectangular Housing 3Mm Dip Indicator Led Diode Red Yellow Green Tri - Color Rectangular Housing

Large Image :  3Mm Dip Indicator Led Diode Red Yellow Green Tri - Color Rectangular Housing

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-H30D-1RYGD

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: LED Indicator Emitted Color: Red, Yellow, Green
Peak Emission Wavelength: 640nm 568nm 589nm Forward Voltage @20ma: 2.0-2.4V
Viewing Angle: 80-90 Deg Luminous Flux: 20-45mcd
High Light:

multi color led diode

,

green light emitting diode

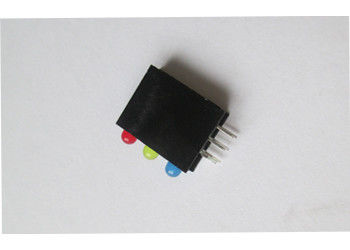

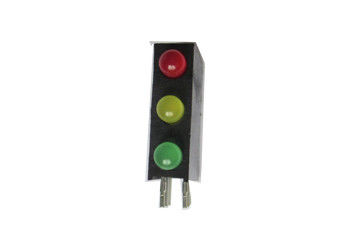

3mm dip LED diode fixed in a plastic holder LED indicator, red, yellow, green, tri-color Rectangular Housing

  • Features:
  1. Low Power consumption.
  2. High efficiency and low cost.
  3. Good control and free combinations on the colors of LED lamps.
  4. Good lock and easy to assembly.
  5. Stackable and easy to assembly.
  6. Stackable vertically and easy to assembly.
  7. Versatile mounting on P.C board or panel.
  8. Stackable horizontally and easy to assembly.
  9. The product itself will remain within RoHS compliant version.
  • Descriptions:
  1. ARRAY=Plastic Holder + Combinations of Lamps.
  2. The array will easily mount be applicable on any panel up to.
  • Applications:
  1. Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.




Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD100mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward CurrentIF30mA
Reverse VoltageVR5V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃

Soldering Temperature
[4mm (.157″) From Body]

Tsld260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃


ParametersSymbolEmitting ColorMin.Typ.Max.UnitTest Condition
Luminous IntensityIVSuper Red1330---mcd

IF=20mA
(Note 1)

Green2045---
Yellow920---
Viewing Angle1/2Super Red---90---Deg

IF=20mA
(Note 2)

Green---80---
Yellow---90---
Peak Emission WavelengthλpSuper Red---660---nm

Measurement
@Peak

Green---565---
Yellow---592---
Dominant WavelengthλdSuper Red---640---nm

IF=20mA
(Note 3)

Green---568---
Yellow---589---
Spectral Line Half-Width△λSuper Red---45---nm
Green---30---
Yellow---35---
Forward VoltageVFSuper Red1.502.002.40VIF=20mA
Green1.602.202.60
Yellow1.602.202.60
Reverse CurrentIRSuper Red------10µAVR=5V
Green
Yellow




Package Dimension:
